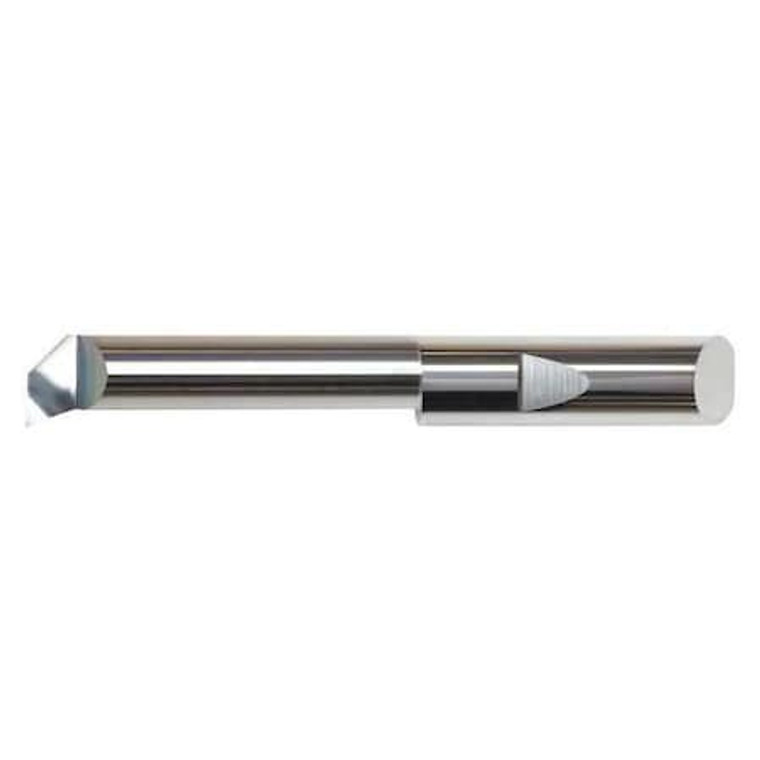

Boring Bar, 3 in L, Carbide - QBT-2301600

Boring Bar, 3 in L, Carbide - QBT-2301600

Micro 100
SKU:
QBT-2301600
|
UPC:
728709155370
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Boring Bar, Top Rake Chipbreaker, Bright (Uncoated), 0.0740 in, Micro-Quik Tool Holder
Additional Information
Country of Origin:
United States
Item:
Boring Bar
Overall Length:
3 in
Shank Dia.:
5/16 in
Bore Dia.:
.230";Bore Depth=1.60""
Cutting Direction:
Right Hand
Material:
C2 Micrograin Carbide
Shank Material:
Carbide
Radius:
0.0060 in
Finish:
Uncoated
Angle:
.040";Application=For Boring Top Rake"
Projection:
0.0400 in
Max. Bore Depth:
1.6000 in
Overhang:
1.8530 in
Measurement System:
Fractional Inch
Cutting Application:
Boring, Finishing
Min. Bore Dia.:
0.2300 in
Offset Point:
0.0740 in
Compatible with Product Type:
Micro-Quik Tool Holder
Center to Cutting Tip:
0.0740 in
Side Cutting Edge Angle:
20 Degrees
Boring Bar Type:
Top Rake Chipbreaker
Features:
Coolant Fed Enabled Shank Design;Corner Radius Profile;Polished Face for Reducing Galling
Finish - Machining:
Bright (Uncoated)
Series:
QBT
Groove Width:
0.1150";Corner Radius=0.006""
Offset:
0.095";Split Length=0.170""
Neck Dia.:
0.1900";Material - Machining=Carbide"
Package Quantity:
1
