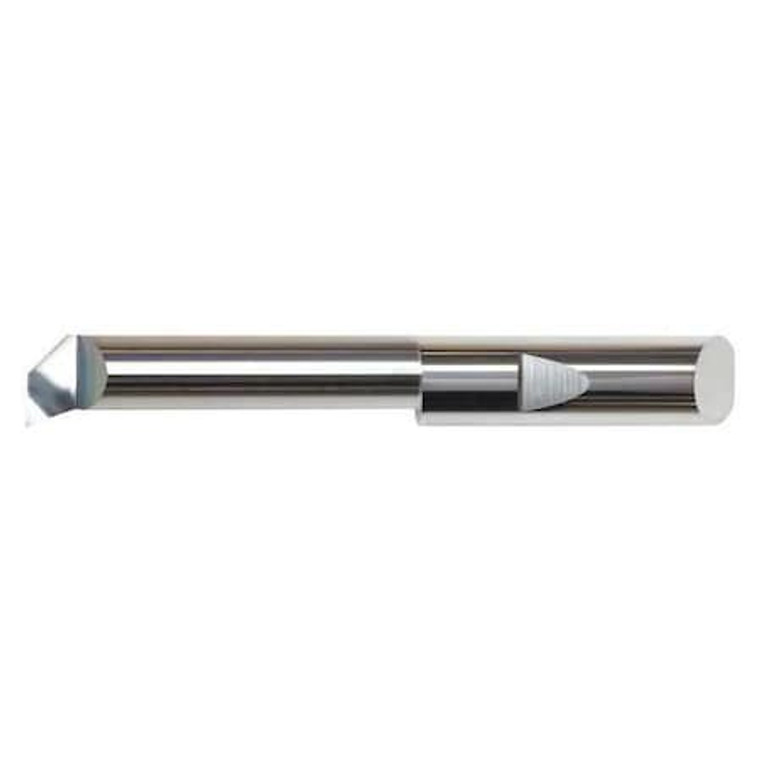

Boring Bar, 3-1/2 in L, Carbide - QBT-4602100

Boring Bar, 3-1/2 in L, Carbide - QBT-4602100

Micro 100
SKU:
QBT-4602100
|
UPC:
728709155578
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Boring Bar, Top Rake Chipbreaker, Bright (Uncoated), 0.2100 in, Micro-Quik Tool Holder
Additional Information
Country of Origin:
United States
Item:
Boring Bar
Shank Dia.:
1/2 in
Overall Length:
3-1/2 in
Bore Dia.:
.460";Bore Depth=2.10""
Cutting Direction:
Right Hand
Material:
C2 Micrograin Carbide
Shank Material:
Carbide
Radius:
0.0060 in
Finish:
Uncoated
Angle:
.075";Application=For Boring Top Rake"
Projection:
0.0750 in
Measurement System:
Fractional Inch
Features:
Coolant Fed Enabled Shank Design;Corner Radius Profile;Polished Face for Reducing Galling
Cutting Application:
Boring, Finishing
Series:
QBT
Min. Bore Dia.:
0.4600 in
Side Cutting Edge Angle:
20 Degrees
Finish - Machining:
Bright (Uncoated)
Compatible with Product Type:
Micro-Quik Tool Holder
Offset Point:
0.2100 in
Max. Bore Depth:
2.1000 in
Overhang:
2.5400 in
Center to Cutting Tip:
0.2100 in
Boring Bar Type:
Top Rake Chipbreaker
Neck Dia.:
0.3850";Groove Width=0.2110""
Corner Radius:
0.006";Offset=0.193""
Split Length:
0.285";Material - Machining=Carbide"
Package Quantity:
1
