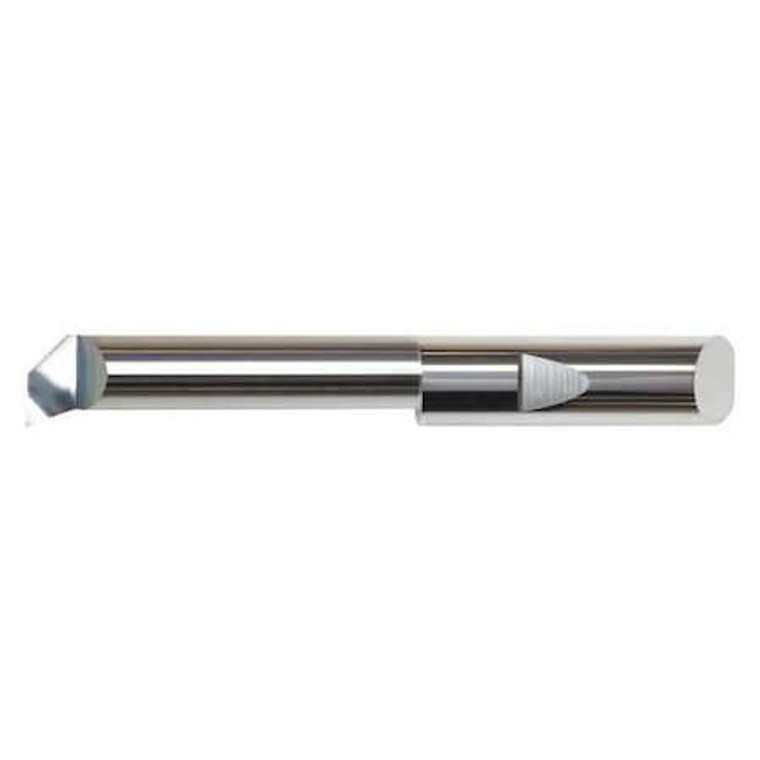

Boring Bar, 3-1/2 in L, Carbide - QBT-3002100X

Boring Bar, 3-1/2 in L, Carbide - QBT-3002100X

Micro 100
SKU:
QBT-3002100X
|
UPC:
728709155462
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Boring Bar, Top Rake Chipbreaker, AlTiN, 0.1130 in, Micro-Quik Tool Holder
Additional Information
Country of Origin:
United States
Item:
Boring Bar
Shank Dia.:
3/8 in
Overall Length:
3-1/2 in
Bore Dia.:
.300";Cutting Direction=Right Hand"
Bore Depth:
2.10";Material=C2 Micrograin Carbide"
Shank Material:
Carbide
Radius:
0.0060 in
Angle:
.050";Application=For Boring Top Rake"
Finish:
AlTiN Coated
Projection:
0.0500 in
Finish - Machining:
AlTiN
Features:
Coolant Fed Enabled Shank Design;Corner Radius Profile;Polished Face for Reducing Galling
Measurement System:
Fractional Inch
Cutting Application:
Boring, Finishing
Side Cutting Edge Angle:
20 Degrees
Max. Bore Depth:
2.1000 in
Boring Bar Type:
Top Rake Chipbreaker
Min. Bore Dia.:
0.3000 in
Series:
QBT
Overhang:
2.8530 in
Compatible with Product Type:
Micro-Quik Tool Holder
Center to Cutting Tip:
0.1130 in
Offset Point:
0.1130 in
Neck Dia.:
1/4";Split Length=0.220""
Offset:
1/8";Corner Radius=0.006""
Groove Width:
0.1420";Material - Machining=Carbide"
Package Quantity:
1
