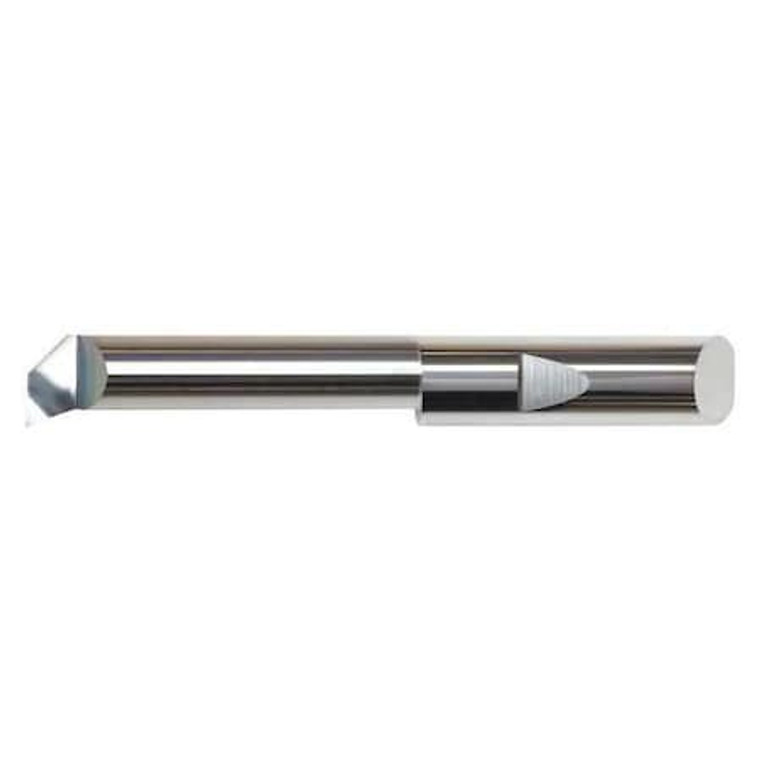

Boring Bar, 2-1/2 in L, Carbide - QBT-4901000X

Boring Bar, 2-1/2 in L, Carbide - QBT-4901000X

Micro 100
SKU:
QBT-4901000X
|
UPC:
728709155608
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Boring Bar, Top Rake Chipbreaker, AlTiN, 0.2400 in, Micro-Quik Tool Holder
Additional Information
Country of Origin:
United States
Item:
Boring Bar
Shank Dia.:
1/2 in
Overall Length:
2-1/2 in
Bore Dia.:
.490";Bore Depth=1.00""
Cutting Direction:
Right Hand
Material:
C2 Micrograin Carbide
Shank Material:
Carbide
Application:
For Boring Top Rake
Angle:
.075";Radius=0.0060 in"
Finish:
AlTiN Coated
Projection:
0.0750 in
Cutting Application:
Boring, Finishing
Finish - Machining:
AlTiN
Max. Bore Depth:
1 in
Center to Cutting Tip:
0.2400 in
Boring Bar Type:
Top Rake Chipbreaker
Measurement System:
Fractional Inch
Offset Point:
0.2400 in
Compatible with Product Type:
Micro-Quik Tool Holder
Overhang:
1.0400 in
Features:
Coolant Fed Enabled Shank Design;Corner Radius Profile;Polished Face for Reducing Galling
Side Cutting Edge Angle:
20 Degrees
Min. Bore Dia.:
0.4900 in
Series:
QBT
Offset:
0.208";Neck Dia.=0.4150""
Corner Radius:
0.006";Groove Width=0.2110""
Split Length:
0.285";Material - Machining=Carbide"
Package Quantity:
1
