Boring Bar, 2-1/2 in L, Carbide - QBT-2301300X

Boring Bar, 2-1/2 in L, Carbide - QBT-2301300X

Micro 100
SKU:
QBT-2301300X
|
UPC:
728709155363
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description

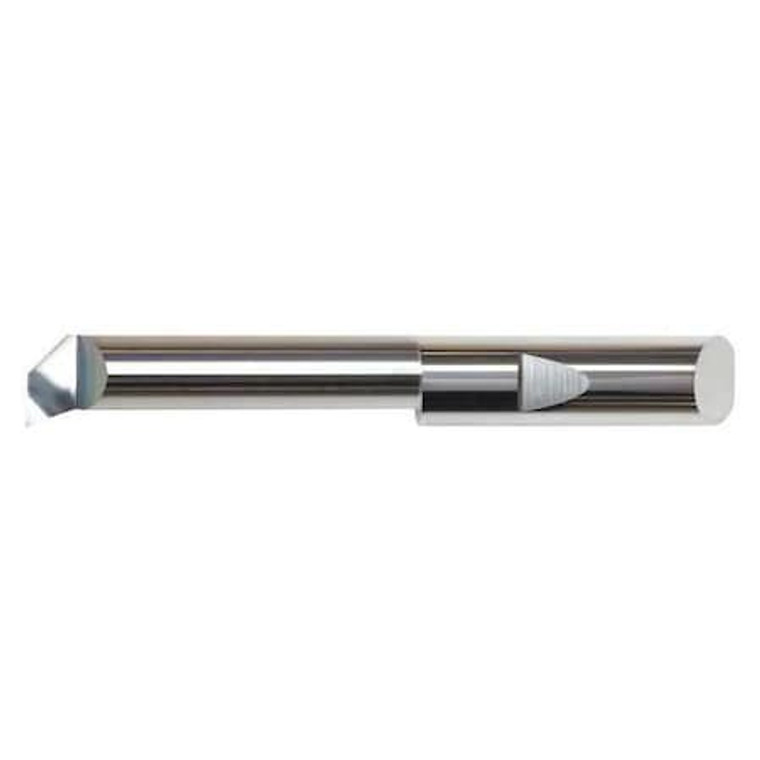

Boring Bar, Top Rake Chipbreaker, AlTiN, 0.0740 in, Micro-Quik Tool Holder
Additional Information
Country of Origin:
United States
Item:
Boring Bar
Overall Length:
2-1/2 in
Shank Dia.:
5/16 in
Bore Dia.:
.230";Bore Depth=1.30""
Cutting Direction:
Right Hand
Material:
C2 Micrograin Carbide
Shank Material:
Carbide
Radius:
0.0060 in
Application:
For Boring Top Rake
Finish:
AlTiN Coated
Angle:
.040";Projection=0.0400 in"
Side Cutting Edge Angle:
20 Degrees
Finish - Machining:
AlTiN
Compatible with Product Type:
Micro-Quik Tool Holder
Features:
Coolant Fed Enabled Shank Design;Corner Radius Profile;Polished Face for Reducing Galling
Center to Cutting Tip:
0.0740 in
Series:
QBT
Overhang:
1.3530 in
Boring Bar Type:
Top Rake Chipbreaker
Cutting Application:
Boring, Finishing
Min. Bore Dia.:
0.2300 in
Max. Bore Depth:
1.3000 in
Offset Point:
0.0740 in
Measurement System:
Fractional Inch
Groove Width:
0.1150";Neck Dia.=0.1900""
Corner Radius:
0.006";Offset=0.095""
Split Length:
0.170";Material - Machining=Carbide"
Package Quantity:
1
