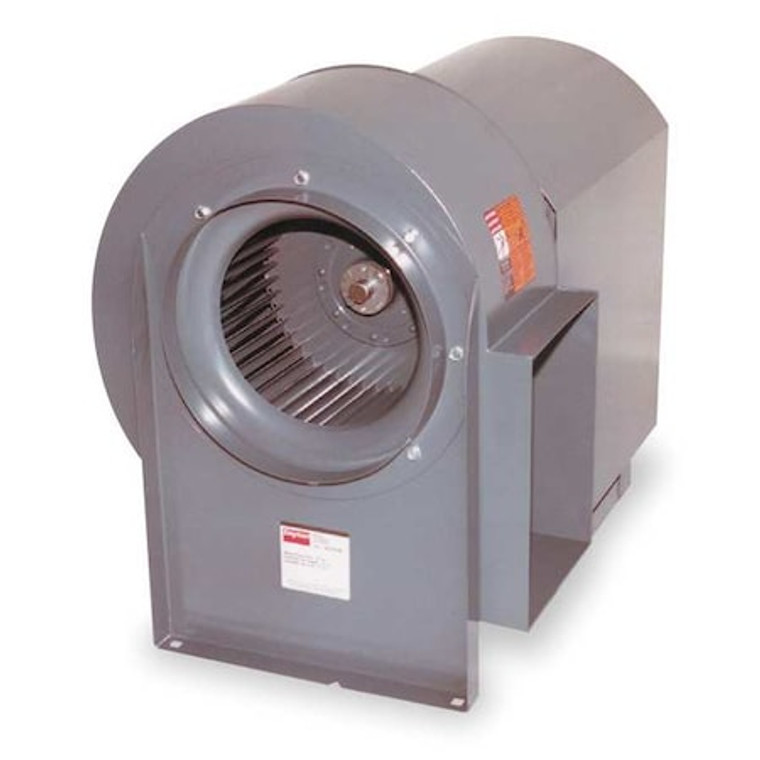

Blower, 12 1/4 In - 2C797
Blower, Wheel Type Forward-Curved, Drive Type Belt Drive, Includes Drive Package No, Assembly Unassembled, Wheel Diameter 12 1/4 in, Minimum Airflow 1,375 cfm, Maximum Airflow 2,660 cfm, Maximum Static Pressure 1 1/2 in wc, Maximum Inlet Air Temperature 250 Degrees F, Shaft Diameter 1 in, Bearing Type Pillow Block Ball, Wheel Material Steel, Housing Material Steel, Wheel Width 6 1/2 in, Number of Inlets 1, Inlet Diameter 13 1/4 in, Outlet Shape Rectangular, Outlet Height 13 1/4 in
- Country of Origin:
- United States
- Promotion Restriction:
- Not eligible for promotion
- Wheel Dia. (In.):
- 12 1/4 in
- Item:
- Blower
- Wheel Width (In.):
- 6 1/2 in
- Type:
- Less Drive Package
- Motor HP:
- 1/3 hp
- Max. Inlet Temp. (Deg. F):
- 250 Degrees F
- Housing Finish:
- Gray Baked Polyester Epoxy
- Height (In.):
- 27 in
- Motor HP Range:
- 1/3 to 1
- Discharge Height (In.):
- 13 1/4 in
- Shaft Dia. (In.):
- 1 in
- Width (In.):
- 30 in
- Depth (In.):
- 22 in
- Discharge Width (In.):
- 9 5/8 in
- Inlet Dia. (In.):
- 13 1/4 in
- Includes:
- Weatherproof Drive Cover
- Wheel Material:
- Steel
- Bearing Type:
- Pillow Block Ball
- Rotation:
- CW
- Housing Material:
- Steel
- Max. Ambient Temp. (F):
- 104 Degrees F
- Wheel Type:
- Forward-Curved
- Drive Type:
- Belt Drive
- Application:
- Heating and Air Conditioning Systems where Low to Medium Pressures are Encountered
- Overall Width:
- 30 in
- Features:
- Dynamically Balanced, Extra-Quiet, Efficient Blower Features a Sturdy Arc-Welded Housing and Frame, Includes V-Belt Drive
- Overall Height:
- 27 in
- Standards:
- AMCA Air Performance Certified, NEC, OSHA
- Electrical Connection:
- Ground Wire
- Maximum Inlet Air Temperature:
- 250 Degrees F
- Discharge Position:
- Bottom Angular Down, Bottom Angular Up, Bottom Horizontal, Down Blast, Top Angular Down, Top Angular Up, Top Horizontal, Up Blast
- Inlet Diameter:
- 13 1/4 in
- Maximum Fan Speed:
- 1,457 RPM
- Manufacturer Warranty Length:
- 1 yr Limited
- Minimum Airflow:
- 1,375 cfm
- Maximum Airflow:
- 2,660 cfm
- Maximum Ambient Temperature:
- 104 Degrees F
- Number of Discharge Positions:
- 8
- Wheel Width:
- 6 1/2 in
- Number of Inlets:
- 1
- Includes Drive Package:
- No
- Maximum Static Pressure:
- 1 1/2 in wc
- Assembly:
- Unassembled
- Outlet Diameter:
- Not Applicable
- Housing Color:
- Gray
- Overall Depth:
- 22 in
- Shaft Diameter:
- 1 in
- Market:
- Commercial, Industrial
- Minimum Motor Horsepower:
- 5/16 hp
- Outlet Shape:
- Rectangular
- Housing Material Finish:
- Gray Polyester Epoxy
- AMCA Fan Class:
- I
- Maximum Motor Horsepower:
- 3 hp
- Mount Type:
- Motor Mount
- Wheel Diameter:
- 12 1/4 in
- Outlet Height:
- 13 1/4 in
- Minimum Fan Speed:
- 690 RPM
- Outlet Width:
- 9 5/8 in
- Flange Type:
- Non-Flanged
- Includes Motor:
- No
- Package Quantity:
- 1
