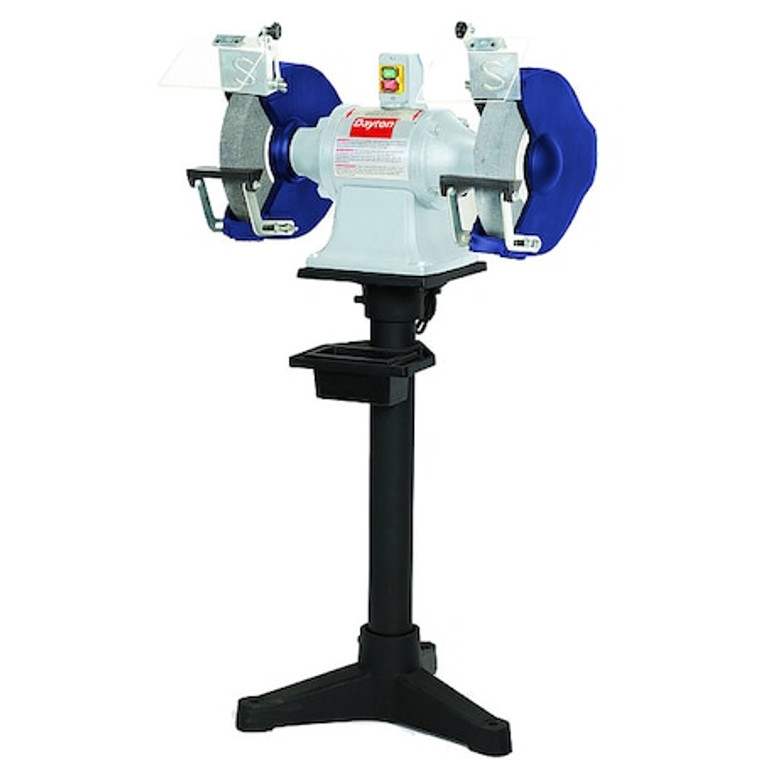

Bench Grinder with Stand, 12 in Max. Wheel Dia, 2 in Max. Wheel Thickness, 36/60 Grinding Wheel Grit - 1FYX2

Bench Grinder with Stand, 12 in Max. Wheel Dia, 2 in Max. Wheel Thickness, 36/60 Grinding Wheel Grit - 1FYX2

Dayton
SKU:
1FYX2
|
UPC:
190735141793
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Bench Grinder with Stand, For Max. Wheel Dia. 12 in, For Max. Wheel Thickness 2 in, Grinding Wheel Grit 36/60, Speed Setting Single Speed, Arbor Size 1 1/4 in, Dust Management Dust Management Included, Lights Included No, Application Deburring, Grinding, Sharpening, Bearing Type Ball Bearing
Additional Information
Country of Origin:
Multiple
Item:
Bench Grinder with Stand
For Max. Wheel Dia.:
12 in
Finishing Wheel Width:
2";Finishing Function=Grinding"
Max. RPM:
1800
Phase:
Single
Arbor Hole Size:
1-1/4";Amps=10"
Standards:
CSA Certified
For Max. Wheel Thickness:
2 in
Grinding Wheel Grit:
36/60
Voltage:
240V AC
HP:
2
Wheel Width:
2";Exhaust Port Size=2-1/2""
Hz:
60
Wheels Center-Center:
21-3/4";Arbor Size=1 1/4 in"
Light:
No
Dust Collection:
Yes
Finishing Wheel Diameter:
12";Includes=(2) Adjustable Eye Shields with Hurricane Bolts, (2) Grinding Wheels, (2) Ratcheting Tool Rests, (2) Spark Arrestors, 6 ft Cord, Single Point Dust Collection, Tool Stand with Quench Tray"
Wheel Material:
Aluminum Oxide
No Load RPM:
1800
Wheel Dia.:
12";Grit=36 and 60"
Overall Height:
51 in
Overall Length:
16 1/2 in
Features:
Includes Stand
Overall Width:
23 in
Application:
Deburring, Grinding, Sharpening
Spindle Thread Size:
M24x2
Housing Material:
Aluminum, Steel
For Use On:
Alloy and Carbon Metals
Horsepower:
2 hp
Switch Type:
Push Button
Electrical Protection:
Grounded
Max. Wheel Speed:
1,725 RPM
Dust Management:
Dust Management Included
Min. Wheel Speed:
1,725 RPM
Bearing Type:
Ball Bearing
Number of Speed Settings:
1
Wheel Distance:
21 3/4 in
Number of Pieces:
1
Lights Included:
No
Plug Type:
Wire Leads
Dust Sealed Switch:
No
Cord Length:
6 ft
Dust Collection Port Size:
2 1/2 in
Tool Weight:
286 lb
Duty:
Heavy Duty
Current:
10 A
Speed Setting:
Single Speed
Electrical Connection:
Wire Lead
Frequency:
60 Hz
Max. Disc Speed:
1,725 RPM
Base Footprint -Depth:
10 1/8 in
Wattage:
1,470 W
Tool Rest Material:
Cast Iron
Power Cord Designation:
SJT
Power Cord - Number of Wires:
3
Wheel Flange Diameter:
4 3/4 in
Sealed Switch:
No Dust Protection
Power Cord Length:
6 ft
Sound Level:
75 dB
Arbor Material:
Steel
For Wheel Diameter - Minimum:
Not Applicable
Arbor Diameter:
1 1/4 in
Power Cord - NEMA Plug Configuration:
No Plug
Minimum Extraction Volume:
400 cfm
Motor Type:
Totally Enclosed Air-Over
Manufacturer Warranty:
1 Yr
Material Compatibility:
Alloys, Carbon Metals
Includes Lights:
Light Not Included
Wheel Diameter:
12 in
Power Cord - Wire Size:
14 AWG
Eye Shield Material:
Polycarbonate
Includes Ground:
Grounded
Arbor Thread:
M24x2
Mounting Holes - Diameter:
7/16 in
End Shield Material:
Cast Iron
Motor Speed - Maximum:
1,725 RPM
Motor Housing Material:
Aluminum; Steel
Includes Dust Management:
Dust Management Included
For Wheel Thickness - Maximum:
2 in
Base Footprint -Width:
10 7/8 in
Motor Speed - Minimum:
Not Applicable
For Wheel Diameter - Maximum:
12 in
Base Material:
Cast Iron
Package Quantity:
1
