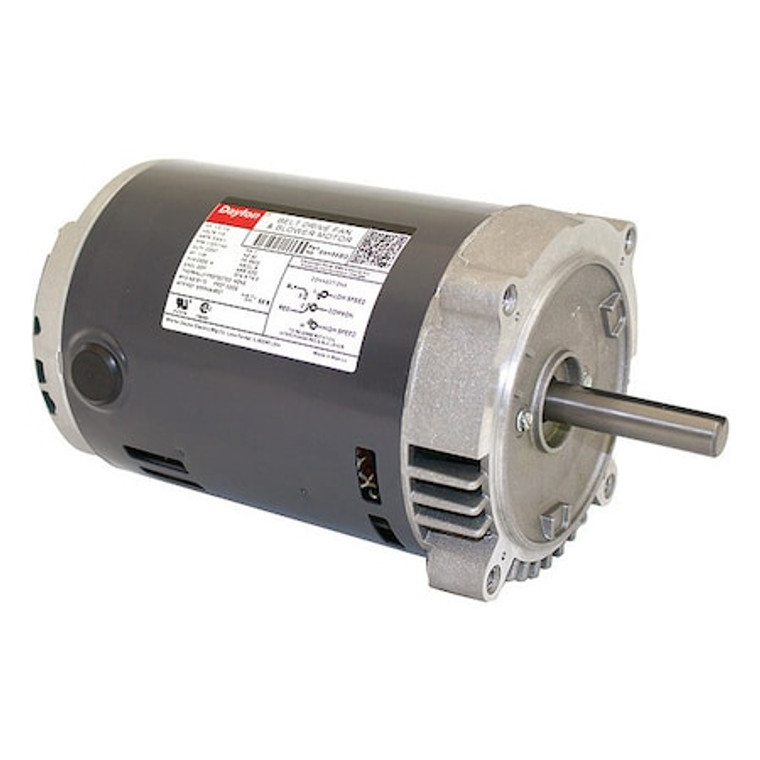

Belt Drive Mtr, SplitPh, ODP, 1/3HP, 1725rpm - 6XH86BG

Belt Drive Mtr, SplitPh, ODP, 1/3HP, 1725rpm - 6XH86BG

Dayton
SKU:
6XH86BG
|
UPC:
190735373316
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/3, 1/9 HP, Nameplate RPM 1,725/1,140, No. of Speeds 2, Voltage 115V AC, 5.8/4.1 A Full Load Amps, 56CZ Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Face, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 5/8 in
Additional Information
Country of Origin:
Mexico
Nameplate RPM:
1,725/1,140
Motor Mounting Position:
All Angle
Full Load Amps:
5.8/4.1 A
RPM Range:
1,701-1,800
Item:
Belt Drive Motor
Motor Bearings:
Ball
No. of Speeds:
2
Footnotes:
45
Frame:
56CZ
Shaft Dia.:
5/8 in
Motor Shaft Design:
Keyed
Frame Material:
Rolled steel
Motor Service Factor:
1.35
Motor Shaft Rotation:
CW/CCW
Motor Application:
HVAC/R
Shaft Length:
2 7/16 in
Max. Ambient Temp.:
104 Degrees F
Motor Thermal Protection:
None
HP:
1/3, 1/9
Duty:
Continuous
Motor Sub Application:
Belt Drive Fan/Blower
Standards:
CSA Certified, UL Recognized
Hz:
60 Hz
Motor Frame Material:
Rolled Steel
Motor Design:
Split-Phase
Voltage:
115V AC
Length Less Shaft:
1701-1800
Manufacturers Warranty Length:
1 yr
Motor Enclosure Design:
Open Dripproof
Motor Mounting Type:
Face
Ins. Class:
B
Phase:
Single
Voltage Compatibility:
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Duty Cycle:
Continuous
Package Quantity:
1
