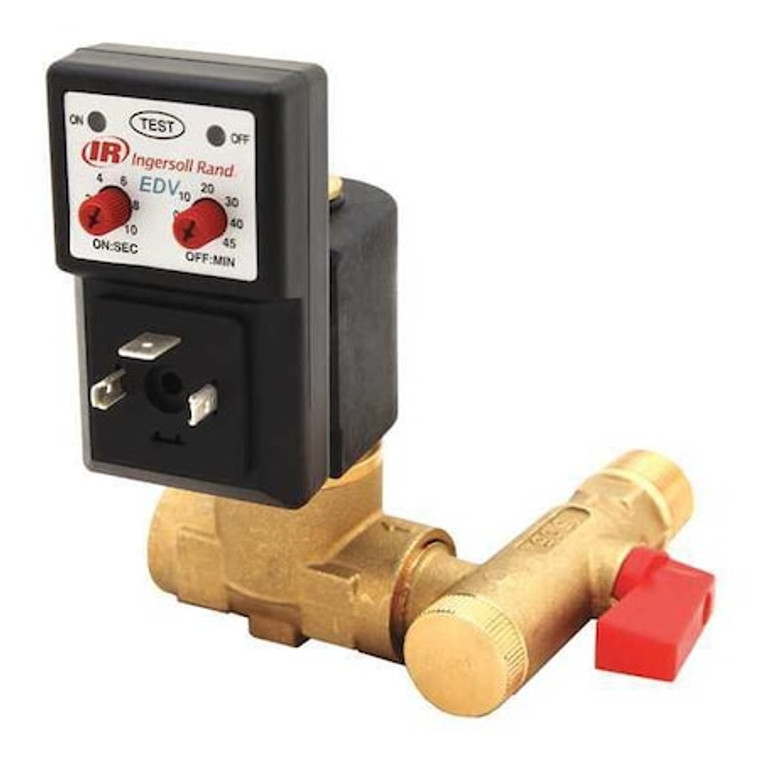

Auto Drain Valve, 115V, 1/4 In., 1.0 gpm - 54410931

Auto Drain Valve, 115V, 1/4 In., 1.0 gpm - 54410931

Ingersoll-Rand
SKU:
54410931
|
UPC:
663023046617
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Timed Electric Auto Drain Valve, Pipe Size 1/4 in NPT, Drain Size 1/4 in, Drain Rate 1 gpm, Adjustable Drain Cycle 30 sec to 45 min, Purge Time 0.5 sec to 10 sec, Voltage 115 V, Max. Pressure 250 psi, Operating Temp. Range 33 Degrees to 265 Degrees F, Hz 60 Hz, Amps AC 0.12 A, Enclosure IP65; NEMA 4, Body Material Low Lead Brass, Overall Height 3 13/16 in, Overall Width 4 15/16 in, Overall Depth 10 in, Includes Electric Drain, Manual Blowdown Valve, Strainer/Ball Valve
Additional Information
Country of Origin:
Ireland
Item:
Timed Electric Auto Drain Valve
Pipe Size:
1/4 in NPT
Drain Size:
1/4 in
Drain Rate:
1 gpm
Adjustable Drain Cycle:
30 sec to 45 min
Purge Time:
0.5 sec to 10 sec
Overall Width:
4 15/16 in
Voltage:
115 V
Overall Depth:
10 in
Max. Pressure:
250 psi
Operating Temp. Range:
33 Degrees to 265 Degrees F
Overall Height:
3 13/16 in
Body Material:
Low Lead Brass
Amps AC:
0.12 A
Includes:
Electric Drain, Manual Blowdown Valve, Strainer/Ball Valve
Enclosure:
IP65; NEMA 4
Hz:
60 Hz
Voltage - Minimum:
Not Applicable
Voltage - Maximum:
120 V
Package Quantity:
1
