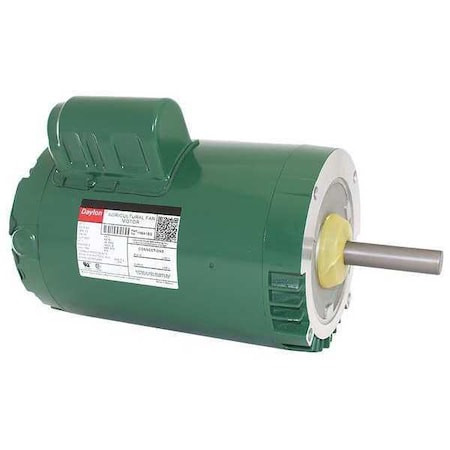

Agricultural Fan Motor, Permanent Split Capacitor, 1 HP, 230V AC, 850 Nameplate RPM, 56CZ Frame - 1YBA1BG

Agricultural Fan Motor, Permanent Split Capacitor, 1 HP, 230V AC, 850 Nameplate RPM, 56CZ Frame - 1YBA1BG

Dayton
SKU:
1YBA1BG
|
UPC:
190735150221
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Agricultural Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 HP, Nameplate RPM 850, No. of Speeds 1, Voltage 230V AC, Full Load Amps 5.2 A, 56CZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Face, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Finish Enamel
Additional Information
Country of Origin:
Mexico
Item:
Agricultural Fan Motor
Motor Design:
Permanent Split Capacitor
Phase:
Single
HP:
1
RPM Range:
0-1,000
Voltage:
230V AC
Frame:
56CZ
Motor Service Factor:
1
Motor Thermal Protection:
Auto
Motor Enclosure Design:
Totally Enclosed Air-Over
Nameplate RPM:
850
Motor Application:
Farm Duty
Motor Frame Material:
Rolled Steel
Motor Mounting Position:
All Angle
Motor Mounting Type:
Face
Motor Sub Application:
Agricultural Fan
Motor Shaft Design:
Keyed
Motor Shaft Rotation:
CW
Standards:
CSA Certified (258501), UL Recognized (E37403)
Voltage Compatibility:
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Full Load Amps:
5.2 A
Finish:
Enamel
Shaft Length:
3 1/4 in
Max. Ambient Temperature:
40 Degrees C
Nominal Efficiency:
70.1 %
Overall Length:
13 5/16 in
Includes:
Shaft Key, Shaft Slinger, Gasketed Capacitor Cover and Wiring Compartment Cover
Frame Material:
Rolled steel
Duty:
Continuous Air Over
Ins. Class:
B
Hz:
60 Hz
Item - Farm Duty Motors:
Agricultural Fan Motor
Length Less Shaft:
10 1/16 in
Shaft Dia.:
3/4 in
Motor Bearings:
Ball
Capacitor Required:
Included
Duty Cycle:
Continuous
No. of Speeds:
1
Max. Ambient Temp.:
40 Degrees C
Application:
Farm Duty
Replacement For:
4M644
Package Quantity:
1
