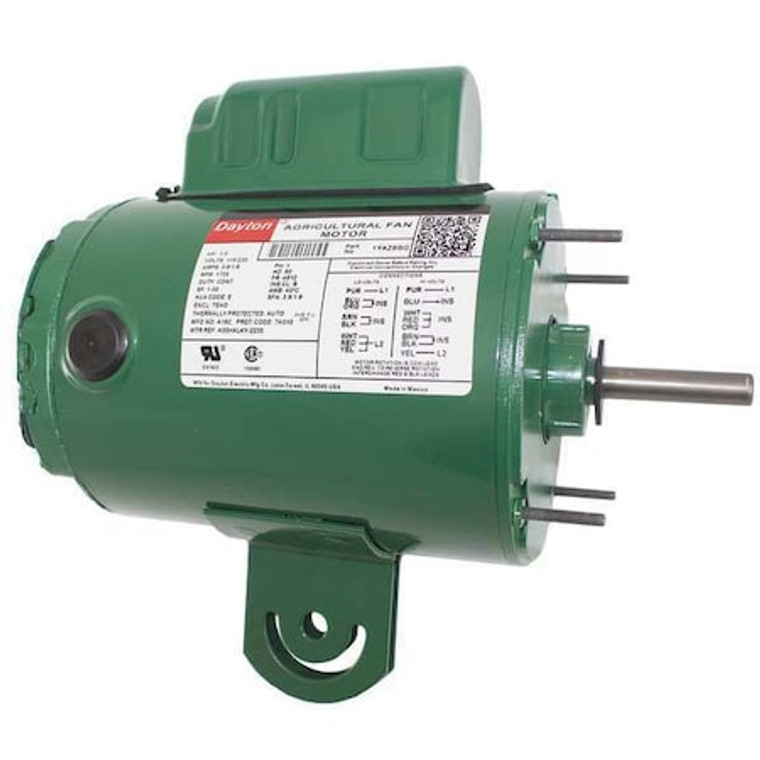

Agricultural Fan Motor, Permanent Split Capacitor, 1/3 HP, 115/230V AC, 1,725 Nameplate RPM - 1YAZ8

Agricultural Fan Motor, Permanent Split Capacitor, 1/3 HP, 115/230V AC, 1,725 Nameplate RPM - 1YAZ8

Dayton
SKU:
1YAZ8
|
UPC:
190735150207
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Agricultural Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.8/1.9 A, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Yoke, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel
Additional Information
Country of Origin:
Mexico
Item:
Agricultural Fan Motor
Motor Design:
Permanent Split Capacitor
Phase:
Single
HP:
1/3
RPM Range:
1,701-1,800
Voltage:
115/230V AC
Frame:
48YZ
Motor Service Factor:
1
Motor Thermal Protection:
Auto
Motor Enclosure Design:
Totally Enclosed Air-Over
Nameplate RPM:
1,725
Motor Application:
Farm Duty
Motor Frame Material:
Rolled Steel
Motor Mounting Position:
All Angle
Motor Mounting Type:
Yoke
Motor Shaft Design:
Double-Flat
Motor Sub Application:
Agricultural Fan
Motor Shaft Rotation:
CW/CCW
Standards:
CSA Certified (258501), UL Recognized (E37403)
Ins. Class:
B
Includes:
Shaft Slinger, Gasketed Capacitor Cover, Extended Thru Bolts, Extended Thru Bolts
Capacitor Required:
Included
Overall Length:
10 9/16 in
Voltage Compatibility:
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Bearings:
Ball
Hz:
60 Hz
Finish:
Green
Length Less Shaft:
8 1/8 in
Nominal Efficiency:
61 %
Shaft Dia.:
1/2 in
Duty:
Continuous Air Over
Max. Ambient Temperature:
40 Degrees C
Full Load Amps:
3.8/1.9 A
Shaft Length:
2 7/16 in
Item - Farm Duty Motors:
Agricultural Fan Motor
Max. Ambient Temp.:
40 Degrees C
Duty Cycle:
Continuous
No. of Speeds:
1
Replacement For:
4M255
Application:
Farm Duty
Package Quantity:
1
