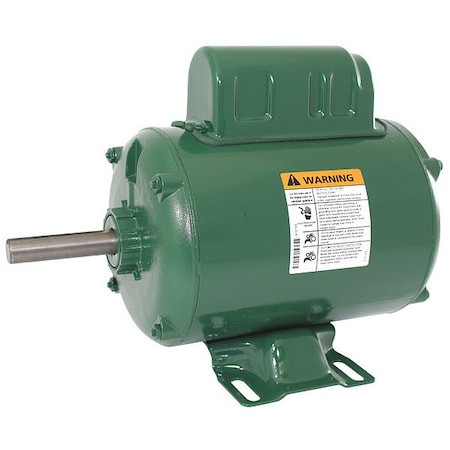

Agricultural Fan Motor, Permanent Split Capacitor, 1/2 HP, 115/230V AC, 850 Nameplate RPM, 56Z Frame - 1YBA6

Agricultural Fan Motor, Permanent Split Capacitor, 1/2 HP, 115/230V AC, 850 Nameplate RPM, 56Z Frame - 1YBA6

Dayton
SKU:
1YBA6
|
UPC:
190735150276
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Agricultural Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 850, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.0/3.0 A, 56Z Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel
Additional Information
Country of Origin:
Mexico
Item:
Agricultural Fan Motor
Motor Design:
Permanent Split Capacitor
Phase:
Single
HP:
1/2
RPM Range:
0-1,000
Voltage:
115/230V AC
Frame:
56Z
Motor Service Factor:
1
Motor Thermal Protection:
Auto
Motor Enclosure Design:
Totally Enclosed Air-Over
Nameplate RPM:
850
Motor Application:
Farm Duty
Motor Frame Material:
Rolled Steel
Motor Mounting Position:
All Angle
Motor Mounting Type:
Rigid Base
Motor Sub Application:
Agricultural Fan
Motor Shaft Design:
Keyed
Motor Shaft Rotation:
CW/CCW
Standards:
CSA Certified (258501), UL Recognized (E37403)
Length Less Shaft:
9 in
Item - Farm Duty Motors:
Agricultural Fan Motor
Max. Ambient Temperature:
40 Degrees C
Hz:
60 Hz
Motor Bearings:
Ball
Duty:
Continuous Air Over
Voltage Compatibility:
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Frame Material:
Rolled steel
Ins. Class:
B
Capacitor Required:
Included
Includes:
Shaft Slinger, Gasketed Capacitor Cover and Wiring Compartment Cover
Shaft Length:
2 1/2 in
Finish:
Gray
Nominal Efficiency:
62.8 %
Overall Length:
11 1/2 in
Shaft Dia.:
5/8 in
Full Load Amps:
6.0/3.0 A
Max. Ambient Temp.:
40 Degrees C
No. of Speeds:
1
Duty Cycle:
Continuous
Application:
Farm Duty
Replacement For:
6GC99
Package Quantity:
1
