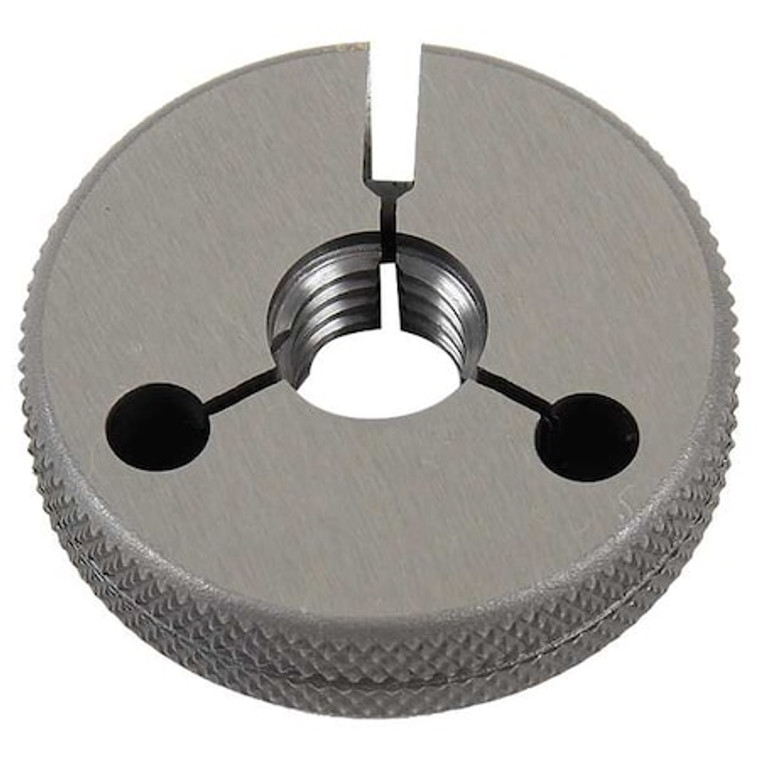

Adj. No Go Ring Gage, 7/16-28 UNEF 2A - 361138530

Adj. No Go Ring Gage, 7/16-28 UNEF 2A - 361138530

Vermont Gage
SKU:
361138530
|
UPC:
662631437732
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threaded Ring Gauge, Long Form Calibration Certificate No, Material Tool Steel, Dimension Type Inch, Gauge Type No-Go (Minus), Pitch Diameter 0.4096 in, Pitch Diameter - No-Go Member 0.4096 in, Thread Class 2A, Thread Length 7/16 in, Thread Size 7/16 In.-28, Thread Type UNEF, Compatible Holder Size 3T, Finish Uncoated, Gauge Design Adjustable, Hardness RC 60-62, Included Certification Certificate of Accuracy with NIST Traceability, Standards ASME B1.2, Tolerance Class X
Additional Information
Country of Origin:
United States
Item:
Threaded Ring Gauge
Type:
No Go
Class:
2A
Thread Size:
7/16-28"
Thread Type:
UNEF
Meets/Exceeds:
ASME B1.2
Thread Length (In.):
7/16 in
Tolerance:
Class X
Outside Dia. (In.):
1 3/4 in
Material:
Tool Steel
Overall Thickness (In.):
7/16 in
Application:
For Inspecting Externally Threaded Parts, Verifying Maximum Pitch Diameter
Includes:
Certificate of Accuracy Traceable to NIST
Finish:
Uncoated
Standards:
ASME B1.2
Long Form Calibration Certificate:
No
Gauge Type:
No-Go (Minus)
Pitch Diameter:
0.4096 in
Tolerance Class:
X
Compatible Holder Size:
3T
Thread Length:
7/16 in
Gauge Design:
Adjustable
Thread Class:
2A
Pitch Diameter - No-Go Member:
0.4096 in
Included Certification:
Certificate of Accuracy with NIST Traceability
Dimension Type:
Inch
Hardness:
RC 60-62
Package Quantity:
1
