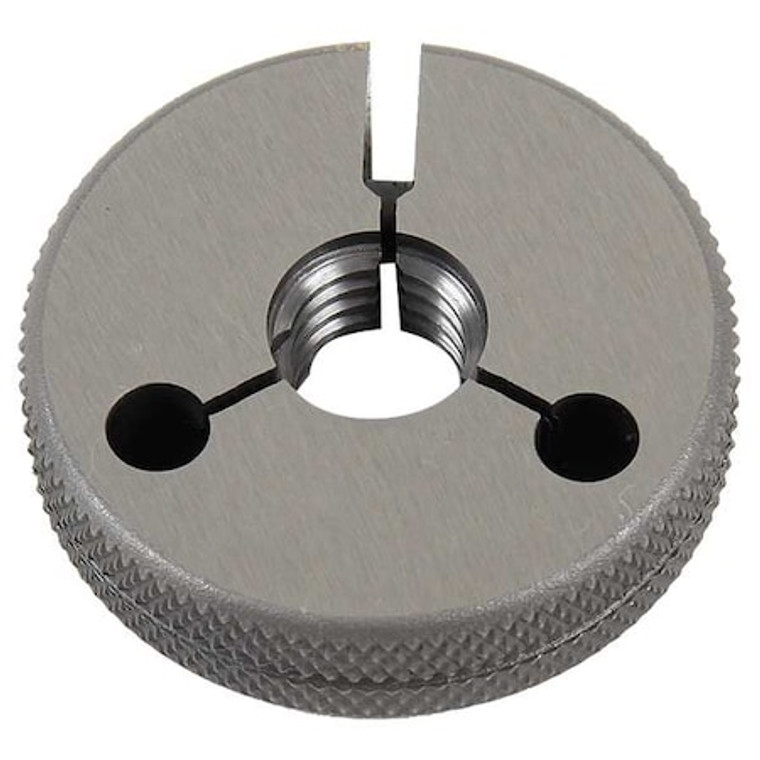

Adj. No Go Ring Gage, 5/16-32 UNEF 2A - 361131530

Adj. No Go Ring Gage, 5/16-32 UNEF 2A - 361131530

Vermont Gage
SKU:
361131530
|
UPC:
662631436339
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threaded Ring Gauge, Long Form Calibration Certificate No, Material Tool Steel, Dimension Type Inch, Gauge Type No-Go (Minus), Pitch Diameter 0.288 in, Pitch Diameter - No-Go Member 0.288 in, Thread Class 2A, Thread Length 11/32 in, Thread Size 5/16 In.-32, Thread Type UNEF, Compatible Holder Size 2T, Finish Uncoated, Gauge Design Adjustable, Hardness RC 60-62, Included Certification Certificate of Accuracy with NIST Traceability, Standards ASME B1.2, Tolerance Class X
Additional Information
Country of Origin:
United States
Item:
Threaded Ring Gauge
Type:
No Go
Class:
2A
Thread Size:
5/16-32"
Thread Type:
UNEF
Application:
For Inspecting Externally Threaded Parts, Verifying Maximum Pitch Diameter
Includes:
Certificate of Accuracy Traceable to NIST
Overall Thickness (In.):
11/32 in
Meets/Exceeds:
ASME B1.2
Tolerance:
Class X
Outside Dia. (In.):
1 3/8 in
Material:
Tool Steel
Thread Length (In.):
11/32 in
Finish:
Uncoated
Hardness:
RC 60-62
Thread Length:
11/32 in
Pitch Diameter:
0.288 in
Tolerance Class:
X
Gauge Type:
No-Go (Minus)
Compatible Holder Size:
2T
Dimension Type:
Inch
Gauge Design:
Adjustable
Pitch Diameter - No-Go Member:
0.288 in
Long Form Calibration Certificate:
No
Thread Class:
2A
Standards:
ASME B1.2
Included Certification:
Certificate of Accuracy with NIST Traceability
Package Quantity:
1
