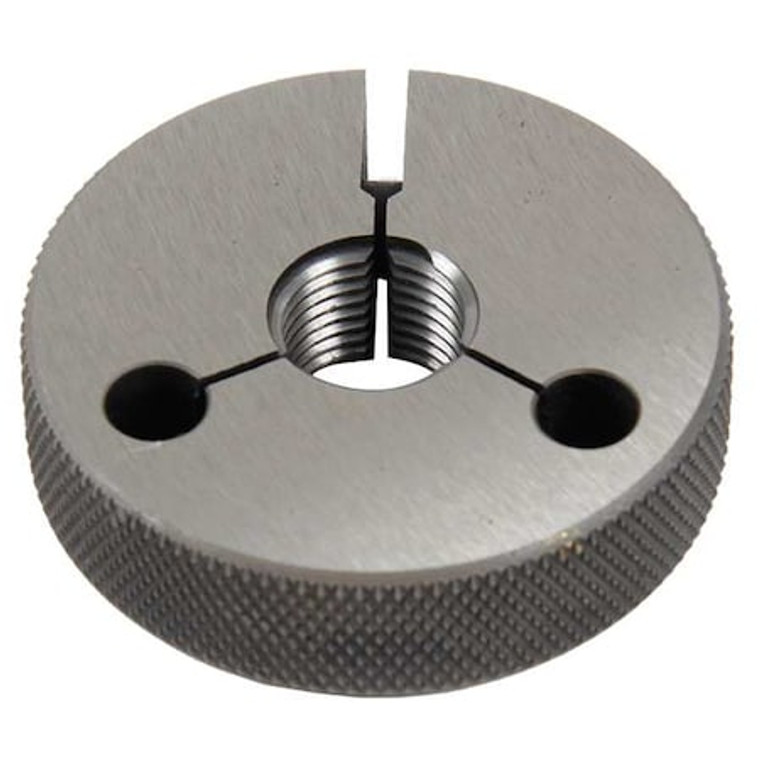

Adj. Go Ring Gage, M18.0-1.50 2A - 362142010

Adj. Go Ring Gage, M18.0-1.50 2A - 362142010

Vermont Gage
SKU:
362142010
|
UPC:
662631474218
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threaded Ring Gauge, Long Form Calibration Certificate No, Material Tool Steel, Dimension Type Metric, Gauge Type Go (Plus), Pitch Diameter 16.994 mm, Pitch Diameter - Go Member 16.994 mm, Thread Class 6G, Thread Length 14.3 mm, Thread Size M18 x 1.50, Thread Type Metric, Compatible Holder Size 4T, Finish Uncoated, Gauge Design Adjustable, Hardness RC 60-62, Included Certification Certificate of Accuracy with NIST Traceability, Standards ASME B1.16M, Tolerance Class X
Additional Information
Country of Origin:
United States
Item:
Threaded Ring Gauge
Type:
Go
Class:
2A
Thread Size:
M18 x 1.50
Thread Type:
Metric
Meets/Exceeds:
ASME B1.16M
Material:
Tool Steel
Outside Dia. (In.):
2 3/16 in
Application:
For Inspecting Externally Threaded Parts, Verifying Maximum Pitch Diameter, Cumulative Inspection of Thread Elements Except Major Diameter
Overall Thickness (In.):
9/16 in
Tolerance:
Class X
Includes:
Certificate of Accuracy Traceable to NIST
Thread Length (In.):
9/16 in
Finish:
Uncoated
Gauge Type:
Go (Plus)
Thread Length:
14.3 mm
Gauge Design:
Adjustable
Pitch Diameter:
16.994 mm
Standards:
ASME B1.16M
Pitch Diameter - Go Member:
16.994 mm
Long Form Calibration Certificate:
No
Dimension Type:
Metric
Thread Class:
6G
Tolerance Class:
X
Hardness:
RC 60-62
Included Certification:
Certificate of Accuracy with NIST Traceability
Compatible Holder Size:
4T
Package Quantity:
1
