Adj. Go Ring Gage, 7/16-14 UNC 2A - 361136510

Adj. Go Ring Gage, 7/16-14 UNC 2A - 361136510

Vermont Gage
SKU:
361136510
|
UPC:
662631437312
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description

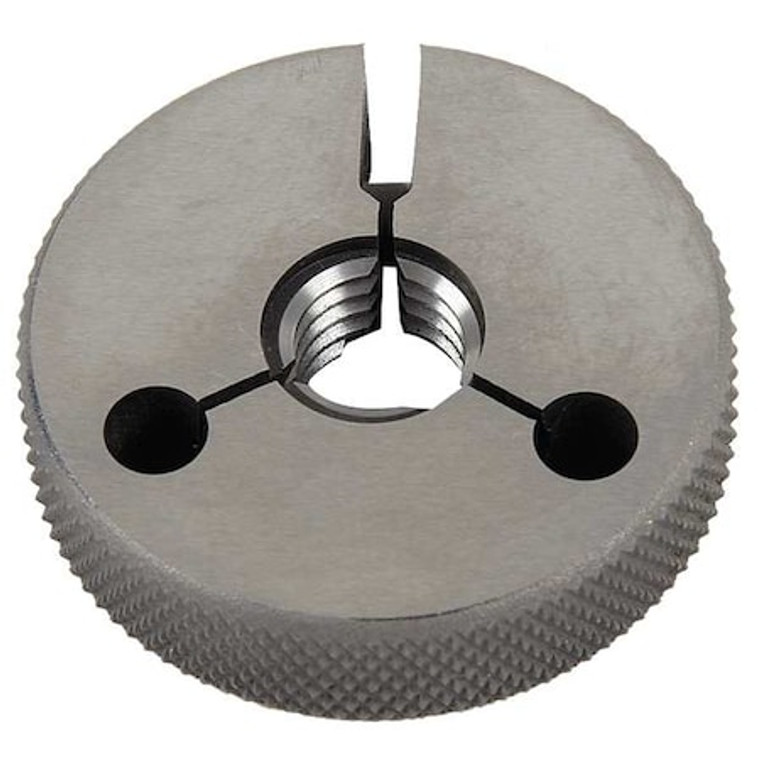

This VERMONT GAGE 361136510 Adj. Go Ring Gauge is the perfect tool for checking the accuracy of threaded parts. It has a go plus gage type, which means it can be used to measure both external and internal threads. The 7/16-14 UNC 2A thread size is one of the most common in industrial applications. This go ring gauge is made from high quality tool steel and comes with an NIST certificate of accuracy with traceability. The overall thickness of this tool is 7/16 in., while its outside diameter measures 1 3/4 in.. If you need to ensure that your threaded parts are accurate, make sure you equip yourself with this VERMONT GAGE 361136510 Adj. Go Ring Gauge today.
Additional Information
Country of Origin:
United States
Item:
Threaded Ring Gauge
Type:
Go
Class:
2A
Thread Size:
7/16-14"
Thread Type:
UNC
Material:
Tool Steel
Overall Thickness (In.):
7/16 in
Application:
For Inspecting Externally Threaded Parts, Verifying Maximum Pitch Diameter, Cumulative Inspection of Thread Elements Except Major Diameter
Meets/Exceeds:
ASME B1.2
Thread Length (In.):
7/16 in
Includes:
Certificate of Accuracy Traceable to NIST
Tolerance:
Class X
Outside Dia. (In.):
1 3/4 in
Finish:
Uncoated
Gauge Design:
Adjustable
Dimension Type:
Inch
Long Form Calibration Certificate:
No
Hardness:
RC 60-62
Gauge Type:
Go (Plus)
Pitch Diameter - Go Member:
0.3897 in
Standards:
ASME B1.2
Pitch Diameter:
0.3897 in
Thread Class:
2A
Tolerance Class:
X
Thread Length:
7/16 in
Included Certification:
Certificate of Accuracy with NIST Traceability
Compatible Holder Size:
3T
Package Quantity:
1
