Adj. Go Ring Gage, 5/8-18 UNF 2A - 361148010

Adj. Go Ring Gage, 5/8-18 UNF 2A - 361148010

Vermont Gage
SKU:
361148010
|
UPC:
662631439613
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description

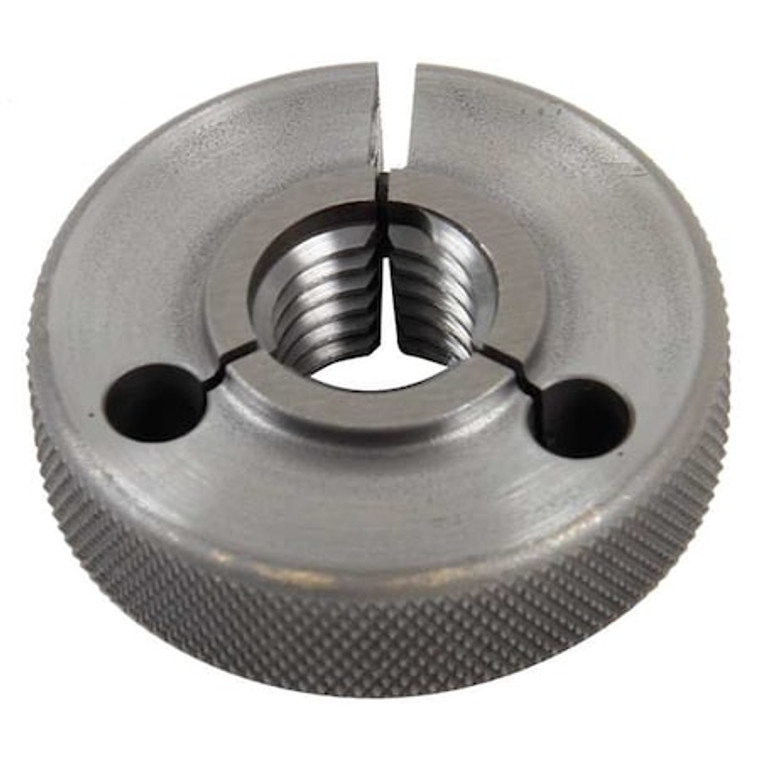

This VERMONT GAGE 361148010 Adj. Go Ring Gage is a reliable tool for determining the pitch diameter of external threads. It features an adjustable ring gage with NIST traceability, making it an accurate tool you can count on. This go ring gage features two scales, one on each side of the shank to make reading easier. The included certificate of accuracy with NIST traceability ensures that this tool is precise and reliable. Its adjustable ring gage allows you to use it as a go or no-go gauge depending on your needs. This VERMONT GAGE Threaded Ring Gauge is the perfect tool for ensuring thread size accuracy in external threads measuring 5/8"-18 UNF 2A.
Additional Information
Country of Origin:
United States
Item:
Threaded Ring Gauge
Type:
Go
Class:
2A
Thread Size:
5/8-18"
Thread Type:
UNF
Tolerance:
Class X
Thread Length (In.):
9/16 in
Application:
For Inspecting Externally Threaded Parts, Verifying Maximum Pitch Diameter, Cumulative Inspection of Thread Elements Except Major Diameter
Includes:
Certificate of Accuracy Traceable to NIST
Overall Thickness (In.):
9/16 in
Outside Dia. (In.):
2 3/16 in
Material:
Tool Steel
Meets/Exceeds:
ASME B1.2
Finish:
Uncoated
Tolerance Class:
X
Pitch Diameter:
0.5875 in
Compatible Holder Size:
4T
Long Form Calibration Certificate:
No
Gauge Design:
Adjustable
Standards:
ASME B1.2
Pitch Diameter - Go Member:
0.5875 in
Thread Class:
2A
Dimension Type:
Inch
Hardness:
RC 60-62
Gauge Type:
Go (Plus)
Included Certification:
Certificate of Accuracy with NIST Traceability
Thread Length:
9/16 in
Package Quantity:
1
