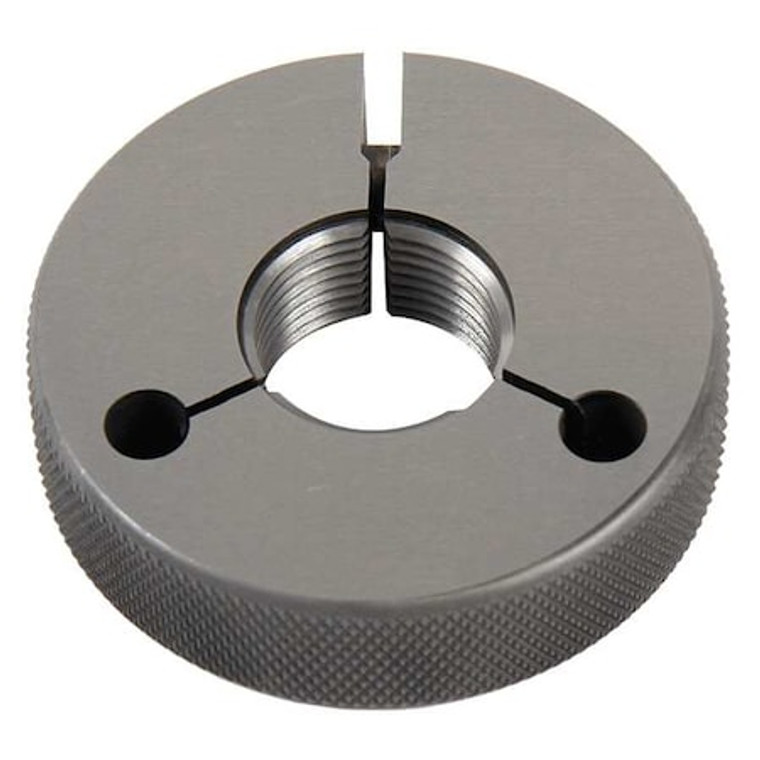

Adj. Go Ring Gage, 1-12 UNF 2A - 361163010

Adj. Go Ring Gage, 1-12 UNF 2A - 361163010

Vermont Gage
SKU:
361163010
|
UPC:
662631442613
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threaded Ring Gauge, Long Form Calibration Certificate No, Material Tool Steel, Dimension Type Inch, Gauge Type Go (Plus), Pitch Diameter 0.9441 in, Pitch Diameter - Go Member 0.9441 in, Thread Class 2A, Thread Length 11/16 in, Thread Size 1 In.-12, Thread Type UNF, Compatible Holder Size 5T, Finish Uncoated, Gauge Design Adjustable, Hardness RC 60-62, Included Certification Certificate of Accuracy with NIST Traceability, Standards ASME B1.2, Tolerance Class X
Additional Information
Country of Origin:
United States
Item:
Threaded Ring Gauge
Type:
Go
Class:
2A
Thread Size:
1-12"
Thread Type:
UNF
Overall Thickness (In.):
11/16 in
Application:
For Inspecting Externally Threaded Parts, Verifying Maximum Pitch Diameter, Cumulative Inspection of Thread Elements Except Major Diameter
Includes:
Certificate of Accuracy Traceable to NIST
Outside Dia. (In.):
2 1/2 in
Thread Length (In.):
11/16 in
Meets/Exceeds:
ASME B1.2
Tolerance:
Class X
Material:
Tool Steel
Finish:
Uncoated
Compatible Holder Size:
5T
Thread Class:
2A
Gauge Type:
Go (Plus)
Standards:
ASME B1.2
Tolerance Class:
X
Hardness:
RC 60-62
Dimension Type:
Inch
Included Certification:
Certificate of Accuracy with NIST Traceability
Thread Length:
11/16 in
Gauge Design:
Adjustable
Long Form Calibration Certificate:
No
Pitch Diameter:
0.9441 in
Pitch Diameter - Go Member:
0.9441 in
Package Quantity:
1
