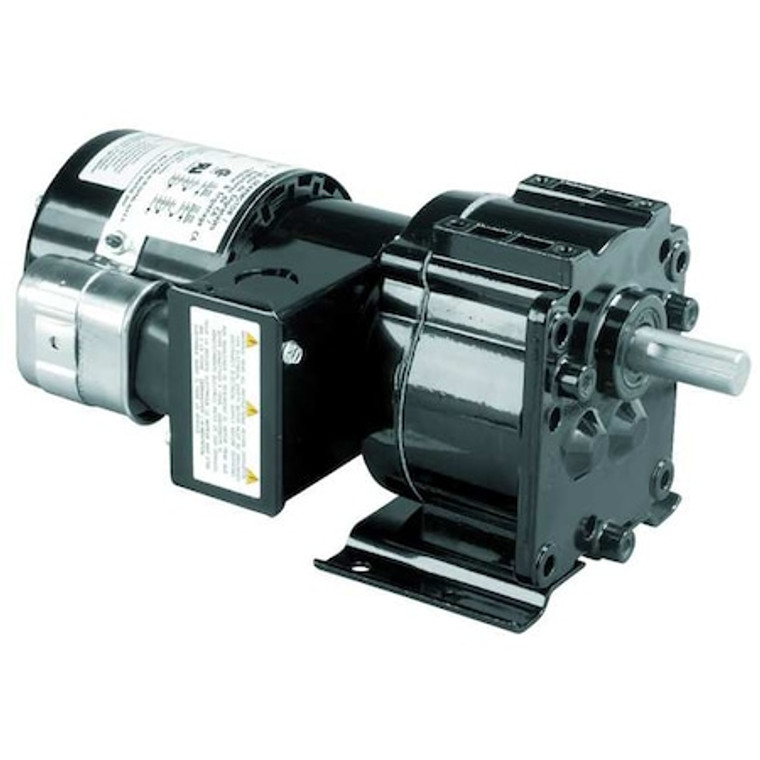

AC Gearmotor, 97 rpm, TEFC, 115/230V - 4Z522
AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 97 RPM, Maximum Torque 43 in-lb, Overhung Load Capacity 175 ft-lb, Rotation CW/CCW, Output Shaft Height 3.5 in, Mounting Orientation Any Angle, Operating Voltage 115/230V AC, Inverter Rated No, Gear Ratio 17:1, Brake Type None, Shaft Orientation Parallel, Includes Capacitor Capacitor Included, AGMA Gear Class Class 9
- Country of Origin:
- United States
- Gearmotor Type:
- AC Gearmotor
- Item:
- AC Gearmotor
- Gearmotor Voltage:
- 115/230V AC
- Motor Type:
- Permanent Split Capacitor
- Shaft Orientation:
- Parallel
- Enclosure:
- TEFC
- Gearmotor Shaft Type:
- Single
- Nameplate RPM:
- 97 RPM
- Gearmotor Shaft Orientation:
- Parallel
- Voltage:
- 115/230
- Gearmotor Enclosure:
- Totally Enclosed Fan-Cooled
- Gear Ratio:
- 17
- Gearmotor Phase:
- 1
- Full Load Amps:
- 1.2/0.63
- Gearmotor Rotation:
- CW/CCW
- Shaft Dia. (Dimension U):
- 5/8 in
- Gear Type:
- Helical (1st Stage), Spur (Subsequent Stages)
- Housing:
- Die Cast Aluminum
- Lubrication:
- Permanent Heavy Duty Gear Oil
- Rotation:
- CW/CCW
- Gear Material:
- Hardened Steel
- Mounting:
- All Position
- Gears:
- 1st Stage Helical, AGMA Class 9, Hardened Steel, Subsequent Stages Spur
- Standards:
- C-UL Recognized, CE Certified, UL Recognized
- Gear Case Material:
- Die Cast Aluminum
- Gearmotor Mounting Position:
- All Angle
- Input HP:
- 1/15 hp
- Seals:
- Lip Type on Input and Output Shaft
- Overhung Load:
- 175 lb
- RPM Range:
- 76 to 100
- Gearmotor Brake Type:
- None
- Phase:
- Single
- Max. Torque:
- 43 in-lb
- Shaft Length (Dimension V):
- 1.5";Thermal Protection=None"
- Length Less Shaft:
- 8.75 in
- Hz:
- 60/50 Hz
- Brake:
- Adaptable to 5X400
- Bearings:
- Ball on Motor, Heavy Duty Needle Roller and Thrust Balls on Case
- Number of Brake Discs Required:
- 1
- Max. Ambient Temp.:
- 40 Degrees C
- Capacitor Required:
- Yes
- Housing Material:
- Die Cast Aluminum
- Overall Width:
- 5.5 in
- Overall Height:
- 5.13 in
- Mount Hole Center-to-Center Length:
- 1.5 in
- Overhung Load Capacity:
- 175 ft-lb
- Frequency:
- 50 Hz, 60 Hz
- Mount Type:
- Any Position
- Input Horsepower:
- 0.067 hp
- Keyway Depth:
- 1/8 in
- AGMA Gear Class:
- Class 9
- Number of Output Shafts:
- 1
- Maximum Ambient Temperature:
- 104 Degrees F
- Seal Type:
- Lip Type on Input and Output Shaft
- Output Shaft Height:
- 3.5 in
- Output Shaft Length:
- 1 1/2 in
- Inverter Rating:
- 16.5
- Mount Hole Center-to-Center Width:
- 4 in
- Brake Type:
- None
- Output Shaft Diameter:
- 5/8 in
- Motor Enclosure:
- Totally Enclosed Fan-Cooled
- Mounting Orientation:
- Any Angle
- Operating Voltage:
- 115/230V AC
- Full Load Current:
- 1.2/0.63 A
- Bearing Type:
- Ball on Motor, Heavy Duty Needle Roller and Thrust Balls on Case
- Nameplate Speed:
- 97 RPM
- Inverter Rated:
- No
- Maximum Torque:
- 43 in-lb
- Keyway Width:
- 3/16 in
- Includes Capacitor:
- Capacitor Included
- Package Quantity:
- 1
