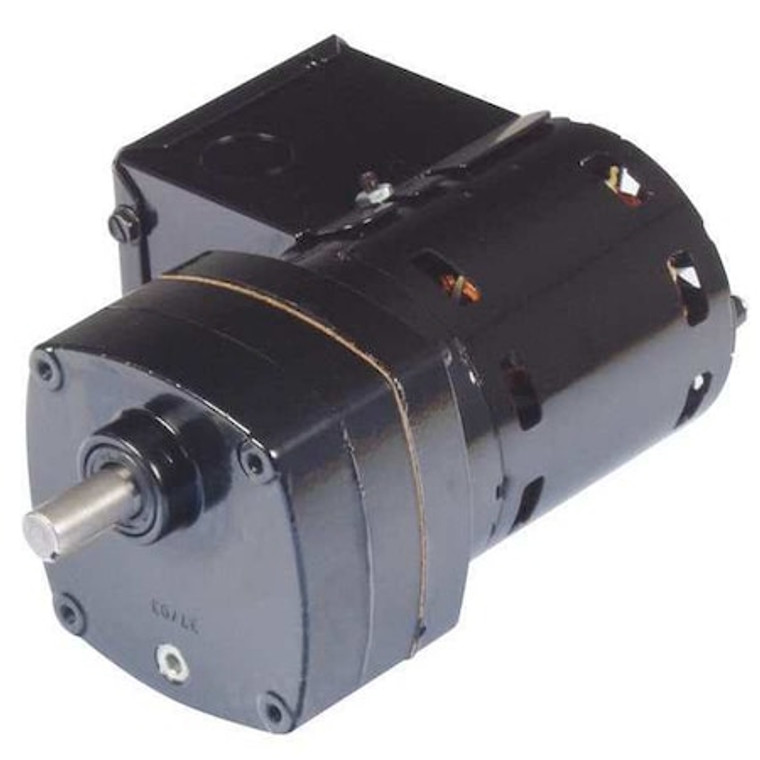

AC Gearmotor, 96.0 in-lb Max. Torque, 33 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 6Z082

AC Gearmotor, 96.0 in-lb Max. Torque, 33 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 6Z082

Dayton
SKU:
6Z082
|
UPC:
190735374108
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Nonventilated, Nameplate Speed 33 RPM, Maximum Torque 96 in-lb, Overhung Load Capacity 90 ft-lb, Rotation CW/CCW, Output Shaft Height 1.19 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Inverter Rated No, Gear Ratio 49:1, Brake Type None, Shaft Orientation Parallel, Compatible Capacitor Manufacturer Part Number 2MDV6, Application Ball on Motor, Heavy Duty Needle on Case
Additional Information
Country of Origin:
United States
Item:
AC Gearmotor
Gearmotor Voltage:
115V AC
Gearmotor Phase:
1
Gearmotor Type:
AC Gearmotor
Max. Torque:
96 in-lb
Gearmotor Shaft Type:
Single
Gearmotor Shaft Orientation:
Parallel
Nameplate RPM:
33 RPM
Gearmotor Enclosure:
Totally Enclosed Nonventilated
Gearmotor Rotation:
CW/CCW
Gearmotor Brake Type:
None
Length Less Shaft:
7.38 in
Gearmotor Mounting Position:
All Angle
Full Load Amps:
0.6
Standards:
C-UL Recognized, UL Recognized
Input HP:
1/20 hp
Shaft Dia. (Dimension U):
1/2 in
Overhung Load:
90 lb
Seals:
Spring Loaded Lip Type on Input and Output Shaft
Mounting:
All Position
Shaft Length (Dimension V):
1";Capacitor Required=Yes"
Enclosure:
TENV
Gear Type:
Helical (1st Stage), Spur (Subsequent Stages)
Gears:
1st Stage Steel, Helical, Subsequent Stages Steel or Heat Treated Powdered Metal Spur
Dimension X:
2.1";Phase=Single"
Voltage:
115
Hz:
60 Hz
Gear Case Material:
Die Cast Aluminum
Bearings:
Ball on Motor, Heavy Duty Needle on Case
Dimension L:
4.34";RPM Range=31 to 50"
Lubrication:
Permanent Heavy Duty Gear Oil
Housing:
Die Cast Aluminum
Motor Type:
Permanent Split Capacitor
Brake:
Adaptable to 5X400
Max. Ambient Temp.:
40 Degrees C
Gear Material:
Steel or Heat Treated Powdered Metal
Gear Ratio:
49
Thermal Protection:
None
Shaft Orientation:
Parallel
Rotation:
CW/CCW
Dimension C:
8.41 in
Application:
Ball on Motor, Heavy Duty Needle on Case
Overall Width:
5.25 in
Overall Height:
3.94 in
Housing Material:
Die Cast Aluminum
Overhung Load Capacity:
90 ft-lb
Mount Hole Center-to-Center Width:
2.38 in
Full Load Current:
0.6 A
Motor Enclosure:
Totally Enclosed Nonventilated
Compatible Capacitor Manufacturer Part Number:
2MDV6
Output Shaft Diameter:
1/2 in
Maximum Torque:
96 in-lb
Bearing Type:
Ball on Motor, Heavy Duty Needle on Case
Keyway Type:
Rounded
Output Shaft Height:
1.19 in
Input Horsepower:
0.05 hp
Mounting Orientation:
Any Angle
Keyway Width:
1/8 mm
Mount Type:
Any Position
Brake Type:
None
Operating Voltage:
115V AC
Inverter Rated:
No
Maximum Ambient Temperature:
104 Degrees F
Frequency:
60 Hz
Keyway Depth:
0 in
Output Shaft Length:
1 in
Inverter Rating:
49
Seal Type:
Spring Loaded Lip Type on Input and Output Shaft
Number of Output Shafts:
1
Nameplate Speed:
33 RPM
Package Quantity:
1
