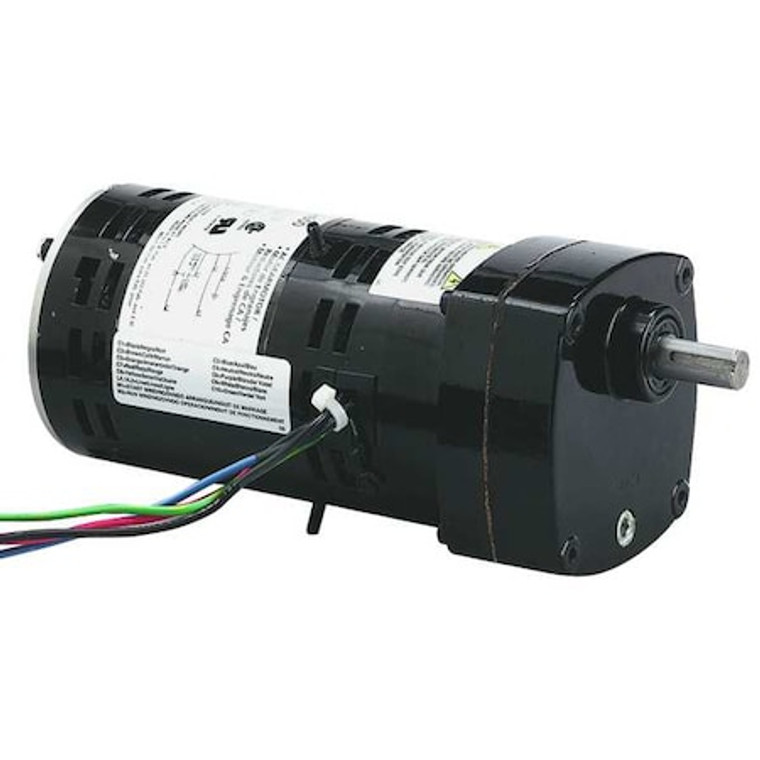

AC Gearmotor, 90.0 in-lb Max. Torque, 63 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 2H598

AC Gearmotor, 90.0 in-lb Max. Torque, 63 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 2H598

Dayton
SKU:
2H598
|
UPC:
190735219386
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Open Air-Over, Nameplate Speed 63 RPM, Maximum Torque 90 in-lb, Overhung Load Capacity 230 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Operating Voltage 115V AC, Inverter Rated No, Gear Ratio 25:1, Brake Type None, Shaft Orientation Parallel, Includes Capacitor Capacitor Included
Additional Information
Country of Origin:
United States
Item:
AC Gearmotor
Gearmotor Voltage:
115V AC
Gearmotor Phase:
1
Gearmotor Type:
AC Gearmotor
Max. Torque:
90 in-lb
Gearmotor Shaft Type:
Single
Gearmotor Shaft Orientation:
Parallel
Nameplate RPM:
63 RPM
Gearmotor Enclosure:
Open
Gearmotor Rotation:
CW/CCW
Gearmotor Brake Type:
None
Length Less Shaft:
7.5 in
Gearmotor Mounting Position:
All Angle
Full Load Amps:
1.05
Standards:
C-UL Recognized, UL Recognized
Input HP:
1/10 hp
Overhung Load:
230 lb
Rotation:
CW/CCW
RPM Range:
51 to 75
Gear Type:
Helical (1st Stage), Spur (Subsequent Stages)
Gear Ratio:
25
Enclosure:
Open
Bearings:
Ball on Motor, Needle Throughout
Motor Type:
Permanent Split Capacitor
Gear Material:
Hardened Steel
Shaft Dia. (Dimension U):
1/2 in
Housing:
Die Cast Aluminum
Shaft Orientation:
Parallel
Brake:
Adaptable to 5X400
Seals:
Spring Loaded Lip Type on Input and Output Shaft
Voltage:
115
Mounting:
All Position
Shaft Length (Dimension V):
1";Hz=60 Hz"
Gear Case Material:
Die Cast Aluminum
Thermal Protection:
None
Lubrication:
Permanent Heavy Fluid Gear Oil
Gears:
1st Stage Helical, Hardened Steel, Subsequent Stages Spur
Max. Ambient Temp.:
40 Degrees C
Phase:
Single
Overall Height:
3.63 in
Overall Width:
3.63 in
Housing Material:
Die Cast Aluminum
Brake Type:
None
Mount Type:
Any Position
Maximum Ambient Temperature:
104 Degrees F
Maximum Torque:
90 in-lb
Mounting Orientation:
Any Angle
Output Shaft Length:
1 in
Output Shaft Diameter:
1/2 in
Keyway Width:
1/8 in
Keyway Depth:
3/4 in
Number of Output Shafts:
1
Inverter Rated:
No
Operating Voltage:
115V AC
Full Load Current:
1.05 A
Inverter Rating:
25.2
Input Horsepower:
0.1 hp
Motor Enclosure:
Open Air-Over
Frequency:
60 Hz
Nameplate Speed:
63 RPM
Overhung Load Capacity:
230 ft-lb
Bearing Type:
Ball on Motor, Needle Throughout
Mount Hole Center-to-Center Length:
2.63 in
Seal Type:
Spring Loaded Lip Type on Input and Output Shaft
Mount Hole Center-to-Center Width:
2.63 in
Includes Capacitor:
Capacitor Included
Package Quantity:
1
