AC Gearmotor, 9.3 in-lb Max. Torque, 25 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 52JE30
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

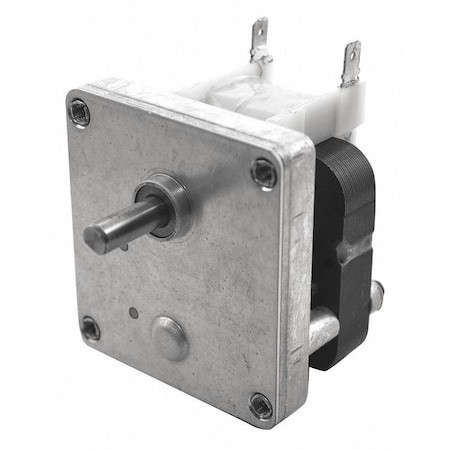

AC Gearmotor, 9.3 in-lb Max. Torque, 25 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 52JE30
AC Gearmotor, Number of Output Shafts 1, Motor Type Shaded Pole, Motor Enclosure Open Air-Over, Nameplate Speed 25 RPM, Maximum Torque 9.3 in-lb, Overhung Load Capacity 30 ft-lb, Rotation CW, Output Shaft Height 0.92 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Gear Ratio 114.3:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class A
- Country of Origin:
- Mexico
- Item:
- AC Gearmotor
- Gearmotor Voltage:
- 115V AC
- Gearmotor Phase:
- 1
- Gearmotor Type:
- AC Gearmotor
- Max. Torque:
- 9.3 in-lb
- Gearmotor Shaft Type:
- Single
- Gearmotor Shaft Orientation:
- Parallel
- Nameplate RPM:
- 25 RPM
- Gearmotor Enclosure:
- Open
- Gearmotor Rotation:
- CW
- Gearmotor Brake Type:
- None
- Length Less Shaft:
- 2.38 in
- Gearmotor Mounting Position:
- All Angle
- Full Load Amps:
- 0.50
- Standards:
- UL Recognized
- Input HP:
- 1/100 hp
- Brake:
- None
- Thermal Protection:
- Impedance
- Shaft Dia. (Dimension U):
- 5/16";RPM Range=16 to 30"
- Overall Length:
- 3.38 in
- Gear Type:
- Spur
- Motor Type:
- Shaded Pole
- Bearings:
- Sintered Bronze Sleeve
- Service Factor:
- 1
- Mounting:
- All Position
- Phase:
- Single
- Reversible Shaft Output:
- No
- No Load RPM:
- 28 RPM
- Rotation:
- CW
- Lubrication:
- Grease Filled
- Capacitor Required:
- No
- Gear Ratio:
- 114.3
- Insulation Class:
- A
- Shaft Orientation:
- Parallel
- Overhung Load:
- 30 lb
- Motor Shaft Design:
- Flat
- Number of Brake Discs Required:
- 0
- Application:
- Agriculture, Amusement Devices, Controls, Conveyors, DVD Kiosks, Food and Restaurant Equipment, Ice Dispensing, Industrial Machinery, Ingredient Motors, Mail Sorting, Packaging, Pellet and Corn Stoves, Power Transmission, Printing Press, Pumps, Secur
- Starting Torque:
- 6.8 in-lb
- Max. Ambient Temp.:
- 40 Degrees C
- Housing:
- Die Cast Zinc
- Shaft:
- Single Output
- Shaft Length (Dimension V):
- 1";Gears=Spur"
- Voltage:
- 115
- Finish:
- Unpainted
- Gear Case Material:
- Die Cast Zinc
- Enclosure:
- Open
- Hz:
- 60 Hz
- Gear Material:
- Sintered Steel
- Housing Material:
- Die Cast Zinc
- Full Load Current:
- 0.5 A
- Mount Hole Center-to-Center Length:
- 2.5 in
- Output Shaft Length:
- 1 in
- Overall Height:
- 3 in
- Frequency:
- 60 Hz
- No Load Speed:
- 28 RPM
- Brake Type:
- None
- Maximum Torque:
- 9.3 in-lb
- Output Shaft Diameter:
- 5/16 in
- Overall Width:
- 2.75 in
- Input Horsepower:
- 0.1 hp
- Number of Output Shafts:
- 1
- Output Shaft Height:
- 0.92 in
- Maximum Ambient Temperature:
- 104 Degrees F
- Motor Enclosure:
- Open Air-Over
- Nameplate Speed:
- 25 RPM
- Bearing Type:
- Sintered Bronze Sleeve
- Mounting Orientation:
- Any Angle
- Overhung Load Capacity:
- 30 ft-lb
- Mount Hole Center-to-Center Width:
- 2.38 in
- Motor Insulation Class:
- A
- Operating Voltage:
- 115V AC
- Housing Material Finish:
- Unpainted
- Mount Type:
- Any Position
- Package Quantity:
- 1
-
-
