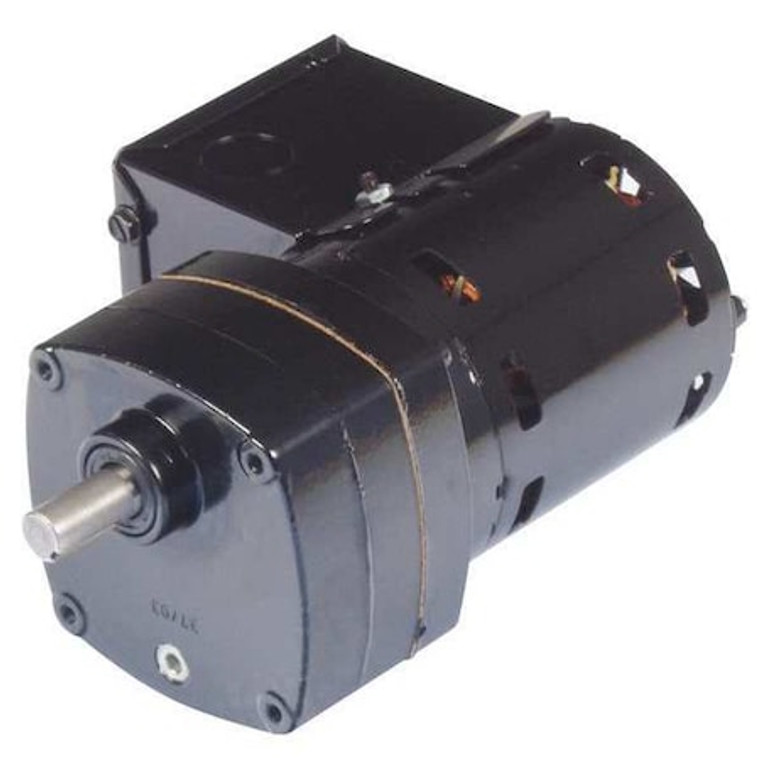

AC Gearmotor, 76.0 in-lb Max. Torque, 8.8 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 6Z076

AC Gearmotor, 76.0 in-lb Max. Torque, 8.8 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 6Z076

Dayton
SKU:
6Z076
|
UPC:
190735374047
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Open Air-Over, Nameplate Speed 8.8 RPM, Maximum Torque 76 in-lb, Overhung Load Capacity 90 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Operating Voltage 115V AC, Inverter Rated No, Gear Ratio 186:1, Brake Type None, Shaft Orientation Parallel, Compatible Capacitor Manufacturer Part Number 2MDV3, Application Ball on Motor, Heavy Duty Needle on Case
Additional Information
Country of Origin:
United States
Item:
AC Gearmotor
Gearmotor Voltage:
115V AC
Gearmotor Phase:
1
Gearmotor Type:
AC Gearmotor
Max. Torque:
76 in-lb
Gearmotor Shaft Type:
Single
Gearmotor Shaft Orientation:
Parallel
Nameplate RPM:
8.8 RPM
Gearmotor Enclosure:
Open
Gearmotor Rotation:
CW/CCW
Gearmotor Brake Type:
None
Length Less Shaft:
7.25 in
Gearmotor Mounting Position:
All Angle
Full Load Amps:
0.3
Standards:
C-UL Recognized, UL Recognized
Input HP:
1/80 hp
Max. Ambient Temp.:
40 Degrees C
Housing:
Die Cast Aluminum
Capacitor Required:
Yes
Brake:
Adaptable to 5X400
Voltage:
115
Phase:
Single
Gear Ratio:
186
Gear Type:
Helical (1st Stage), Spur (Subsequent Stages)
Rotation:
CW/CCW
Gears:
1st Stage Steel, Helical, Subsequent Stages Steel or Heat Treated Powdered Metal Spur
Dimension C:
8.24 in
Bearings:
Ball on Motor, Heavy Duty Needle on Case
Overhung Load:
90 lb
Shaft Dia. (Dimension U):
1/2 in
Thermal Protection:
Impedance
Hz:
60/50 Hz
Dimension X:
2.8";Enclosure=Open"
Dimension L:
3.46";Gear Material=Steel or Heat Treated Powdered Metal"
Motor Type:
Permanent Split Capacitor
Gear Case Material:
Die Cast Aluminum
Lubrication:
Permanent Heavy Duty Gear Oil
RPM Range:
0 to 15
Seals:
Spring Loaded Lip Type on Input and Output Shaft
Shaft Orientation:
Parallel
Shaft Length (Dimension V):
1";Mounting=All Position"
Application:
Ball on Motor, Heavy Duty Needle on Case
Overall Height:
3.63 in
Overall Width:
5.31 in
Housing Material:
Die Cast Aluminum
Keyway Width:
1/8 mm
Bearing Type:
Ball on Motor, Heavy Duty Needle on Case
Mount Type:
Any Position
Seal Type:
Spring Loaded Lip Type on Input and Output Shaft
Number of Output Shafts:
1
Mount Hole Center-to-Center Width:
2.63 in
Keyway Depth:
0 in
Output Shaft Diameter:
1/2 in
Motor Enclosure:
Open Air-Over
Operating Voltage:
115V AC
Full Load Current:
0.3 A
Inverter Rated:
No
Maximum Torque:
76 in-lb
Nameplate Speed:
8.8 RPM
Maximum Ambient Temperature:
104 Degrees F
Frequency:
50 Hz, 60 Hz
Keyway Type:
Rounded
Inverter Rating:
185.5
Output Shaft Length:
1 in
Brake Type:
None
Mount Hole Center-to-Center Length:
2.63 in
Overhung Load Capacity:
90 ft-lb
Compatible Capacitor Manufacturer Part Number:
2MDV3
Mounting Orientation:
Any Angle
Input Horsepower:
0.013 hp
Package Quantity:
1
