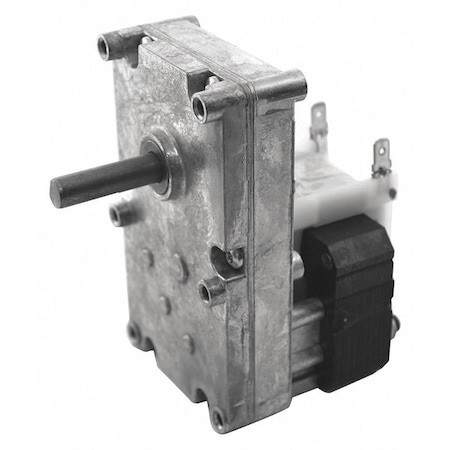

AC Gearmotor, 70.0 in-lb Max. Torque, 4.0 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 52JE11

AC Gearmotor, 70.0 in-lb Max. Torque, 4.0 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 52JE11

Dayton
SKU:
52JE11
|
UPC:
663001455882
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
AC Gearmotor, Number of Output Shafts 1, Motor Type Shaded Pole, Motor Enclosure Open Air-Over, Nameplate Speed 4 RPM, Maximum Torque 70 in-lb, Overhung Load Capacity 30 ft-lb, Rotation CW, Output Shaft Height 1.19 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Gear Ratio 823.4:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class B
Additional Information
Country of Origin:
Mexico
Item:
AC Gearmotor
Gearmotor Voltage:
115V AC
Gearmotor Phase:
1
Gearmotor Type:
AC Gearmotor
Max. Torque:
70 in-lb
Gearmotor Shaft Type:
Single
Gearmotor Shaft Orientation:
Parallel
Nameplate RPM:
4 RPM
Gearmotor Enclosure:
Open
Gearmotor Rotation:
CW
Gearmotor Brake Type:
None
Length Less Shaft:
3.38 in
Gearmotor Mounting Position:
All Angle
Full Load Amps:
0.45
Standards:
UL Recognized
Input HP:
1/60 hp
Shaft:
Single Output
Motor Shaft Design:
Flat
Reversible Shaft Output:
No
Shaft Orientation:
Parallel
Gear Type:
Spur
Lubrication:
Grease Filled
Enclosure:
Open
Service Factor:
1
No Load RPM:
4.1 RPM
Overhung Load:
30 lb
Phase:
Single
Shaft Length (Dimension V):
1.3125 in
Starting Torque:
60 in-lb
Finish:
Unpainted
Number of Brake Discs Required:
0
Brake:
None
Motor Type:
Shaded Pole
Application:
Agriculture, Amusement Devices, Controls, Conveyors, DVD Kiosks, Food and Restaurant Equipment, Ice Dispensing, Industrial Machinery, Ingredient Motors, Mail Sorting, Packaging, Pellet and Corn Stoves, Power Transmission, Printing Press, Pumps, Secur
Capacitor Required:
No
Thermal Protection:
Impedance
Voltage:
115
RPM @ 50 Hz:
3.3 RPM
Bearings:
Sintered Bronze Sleeve
Mounting:
All Position
Overall Length:
10.87 in
RPM Range:
0 to 15
Housing:
Die Cast Zinc
Max. Ambient Temp.:
40 Degrees C
Gears:
Helical and Spur
Insulation Class:
b
Gear Ratio:
823.4
Gear Case Material:
Die Cast Zinc
Hz:
60/50 Hz
Shaft Dia. (Dimension U):
3/8 in
Rotation:
CW
Gear Material:
Plastic, Sintered Steel
Housing Material:
Die Cast Zinc
No Load Speed:
4.1 RPM
Frequency:
50 Hz, 60 Hz
Mount Hole Center-to-Center Width:
2.38 in
Bearing Type:
Sintered Bronze Sleeve
Nameplate Speed:
4 RPM
Overhung Load Capacity:
30 ft-lb
Brake Type:
None
Mount Type:
Any Position
Mounting Orientation:
Any Angle
Output Shaft Length:
1 5/16 in
Number of Output Shafts:
1
Maximum Ambient Temperature:
104 Degrees F
Input Horsepower:
0.167 hp
Motor Insulation Class:
B
Output Shaft Diameter:
3/8 in
Housing Material Finish:
Unpainted
Operating Voltage:
115V AC
Mount Hole Center-to-Center Length:
4.31 in
Full Load Current:
0.45 A
Output Shaft Height:
1.19 in
Motor Enclosure:
Open Air-Over
Overall Width:
6.79 in
Overall Height:
5.69 in
Maximum Torque:
70 in-lb
Package Quantity:
1
