AC Gearmotor, 500.0 in-lb Max. Torque, 10 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase - 1LPX5
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

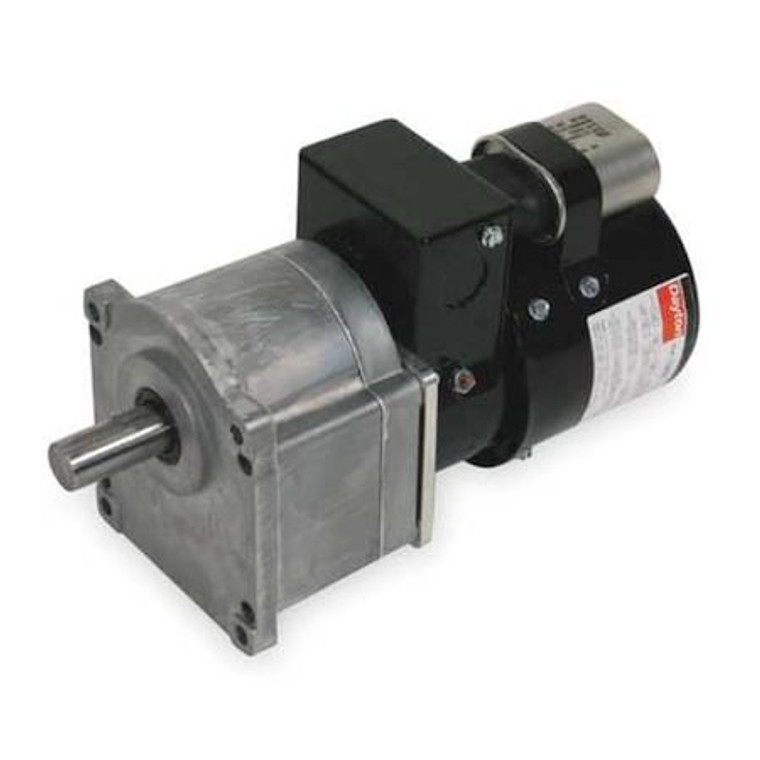

AC Gearmotor, 500.0 in-lb Max. Torque, 10 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase - 1LPX5
AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 10 RPM, Maximum Torque 500 in-lb, Overhung Load Capacity 300 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Operating Voltage 115/230V AC, Inverter Rated No, Gear Ratio 164:1, Brake Type None, Shaft Orientation Parallel, Includes Capacitor Capacitor Included, Motor Insulation Class B
- Country of Origin:
- United States
- Item:
- AC Gearmotor
- Gearmotor Voltage:
- 115/230V AC
- Gearmotor Phase:
- 1
- Gearmotor Type:
- AC Gearmotor
- Max. Torque:
- 500 in-lb
- Gearmotor Shaft Type:
- Single
- Gearmotor Shaft Orientation:
- Parallel
- Nameplate RPM:
- 10 RPM
- Gearmotor Enclosure:
- Totally Enclosed Fan-Cooled
- Gearmotor Rotation:
- CW/CCW
- Gearmotor Brake Type:
- None
- Length Less Shaft:
- 9.5 in
- Gearmotor Mounting Position:
- All Angle
- Full Load Amps:
- 1.2/0.63
- Standards:
- C-UL Recognized, UL Recognized
- Input HP:
- 1/12 hp
- Number of Brake Discs Required:
- 1
- Gear Case Material:
- Die Cast Aluminum
- Gears:
- 1st Stage Helical, Hardened Steel, Subsequent Stages Spur
- Shaft Length (Dimension V):
- 1.375 in
- Enclosure:
- TEFC
- Finish:
- Unpainted
- Housing:
- Aluminum Die Cast
- Seals:
- Lip Type on Input and Output Shaft
- Shaft:
- Single Output
- Shaft Dia. (Dimension U):
- 3/4 in
- RPM Range:
- 0 to 15
- Gear Ratio:
- 164
- Mounting:
- All Position
- Capacitor Required:
- Yes
- Motor Type:
- Permanent Split Capacitor
- Overhung Load:
- 300 lb
- Phase:
- Single
- Lubrication:
- Grease Filled
- RPM @ 50 Hz:
- 8
- Hz:
- 60/50 Hz
- Reversible Shaft Output:
- No
- Insulation Class:
- b
- Max. Ambient Temp.:
- 40 Degrees C
- Shaft Orientation:
- Parallel
- Brake:
- 5X400
- Rotation:
- CW/CCW
- Voltage:
- 115/230
- Bearings:
- Ball and Needle on Case, Ball on Motor
- Thermal Protection:
- None
- Gear Material:
- Hardened Steel
- Gear Type:
- Helical (1st Stage), Spur (Subsequent Stages)
- Overall Width:
- 5.63 in
- Overall Height:
- 4.88 in
- Housing Material:
- Aluminum Die Cast Alloy
- Output Shaft Length:
- 1 3/8 in
- Brake Type:
- None
- Mount Hole Center-to-Center Width:
- 3.63 in
- Maximum Ambient Temperature:
- 104 Degrees F
- Bearing Type:
- Ball and Needle on Case, Ball on Motor
- Full Load Current:
- 1.2/0.63 A
- Motor Enclosure:
- Totally Enclosed Fan-Cooled
- Nameplate Speed:
- 10 RPM
- Keyway Depth:
- 1 in
- Frequency:
- 50 Hz, 60 Hz
- Inverter Rating:
- 164
- Seal Type:
- Lip Type on Input and Output Shaft
- Mounting Orientation:
- Any Angle
- Operating Voltage:
- 115/230V AC
- Mount Type:
- Any Position
- Housing Material Finish:
- Unpainted
- Overhung Load Capacity:
- 300 ft-lb
- Maximum Torque:
- 500 in-lb
- Input Horsepower:
- 0.083 hp
- Motor Insulation Class:
- B
- Number of Output Shafts:
- 1
- Inverter Rated:
- No
- Output Shaft Diameter:
- 3/4 in
- Keyway Width:
- 3/16 in
- Includes Capacitor:
- Capacitor Included
- Package Quantity:
- 1
-
-
