AC Gearmotor, 49.0 in-lb Max. Torque, 63 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 6Z079
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

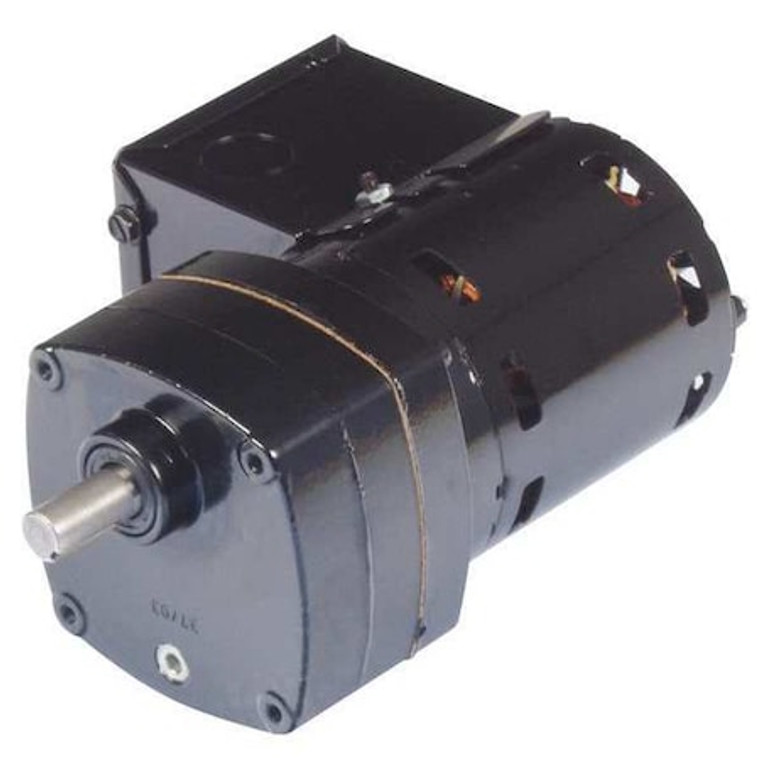

AC Gearmotor, 49.0 in-lb Max. Torque, 63 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 6Z079
AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Open Air-Over, Nameplate Speed 63 RPM, Maximum Torque 49 in-lb, Overhung Load Capacity 90 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Operating Voltage 115V AC, Inverter Rated No, Gear Ratio 25:1, Brake Type None, Shaft Orientation Parallel, Compatible Capacitor Manufacturer Part Number 2MDV6, Application Ball on Motor, Heavy Duty Needle on Case
- Country of Origin:
- United States
- Item:
- AC Gearmotor
- Gearmotor Voltage:
- 115V AC
- Gearmotor Phase:
- 1
- Gearmotor Type:
- AC Gearmotor
- Max. Torque:
- 49 in-lb
- Gearmotor Shaft Type:
- Single
- Gearmotor Shaft Orientation:
- Parallel
- Nameplate RPM:
- 63 RPM
- Gearmotor Enclosure:
- Open
- Gearmotor Rotation:
- CW/CCW
- Gearmotor Brake Type:
- None
- Length Less Shaft:
- 7.38 in
- Gearmotor Mounting Position:
- All Angle
- Full Load Amps:
- 0.62
- Standards:
- C-UL Recognized, UL Recognized
- Input HP:
- 1/20 hp
- Lubrication:
- Permanent Heavy Duty Gear Oil
- Enclosure:
- Open
- Gear Ratio:
- 25
- Mounting:
- All Position
- Hz:
- 60/50 Hz
- Phase:
- Single
- Max. Ambient Temp.:
- 40 Degrees C
- Overhung Load:
- 90 lb
- Shaft Length (Dimension V):
- 1";Seals=Spring Loaded Lip Type on Input and Output Shaft"
- Rotation:
- CW/CCW
- Dimension X:
- 2.1";Gear Material=Steel or Heat Treated Powdered Metal"
- Motor Type:
- Permanent Split Capacitor
- Bearings:
- Ball on Motor, Heavy Duty Needle on Case
- Shaft Dia. (Dimension U):
- 1/2 in
- Dimension C:
- 8.4 in
- Gear Type:
- Helical (1st Stage), Spur (Subsequent Stages)
- Housing:
- Die Cast Aluminum
- Thermal Protection:
- None
- Shaft Orientation:
- Parallel
- Brake:
- Adaptable to 5X400
- Voltage:
- 115
- Capacitor Required:
- Yes
- RPM Range:
- 51 to 75
- Dimension L:
- 4.31";Gear Case Material=Die Cast Aluminum"
- Gears:
- 1st Stage Steel, Helical, Subsequent Stages Steel or Heat Treated Powdered Metal Spur
- Application:
- Ball on Motor, Heavy Duty Needle on Case
- Overall Height:
- 3.63 in
- Overall Width:
- 5.31 in
- Housing Material:
- Die Cast Aluminum
- Overhung Load Capacity:
- 90 ft-lb
- Inverter Rating:
- 25.2
- Motor Enclosure:
- Open Air-Over
- Operating Voltage:
- 115V AC
- Maximum Torque:
- 49 in-lb
- Frequency:
- 50 Hz, 60 Hz
- Output Shaft Diameter:
- 1/2 in
- Mount Hole Center-to-Center Length:
- 2.63 in
- Output Shaft Length:
- 1 in
- Keyway Depth:
- 0 in
- Full Load Current:
- 0.62 A
- Mount Hole Center-to-Center Width:
- 2.63 in
- Number of Output Shafts:
- 1
- Seal Type:
- Spring Loaded Lip Type on Input and Output Shaft
- Nameplate Speed:
- 63 RPM
- Maximum Ambient Temperature:
- 104 Degrees F
- Compatible Capacitor Manufacturer Part Number:
- 2MDV6
- Input Horsepower:
- 0.05 hp
- Mount Type:
- Any Position
- Keyway Width:
- 1/8 mm
- Keyway Type:
- Rounded
- Bearing Type:
- Ball on Motor, Heavy Duty Needle on Case
- Inverter Rated:
- No
- Mounting Orientation:
- Any Angle
- Brake Type:
- None
- Package Quantity:
- 1
-
-
