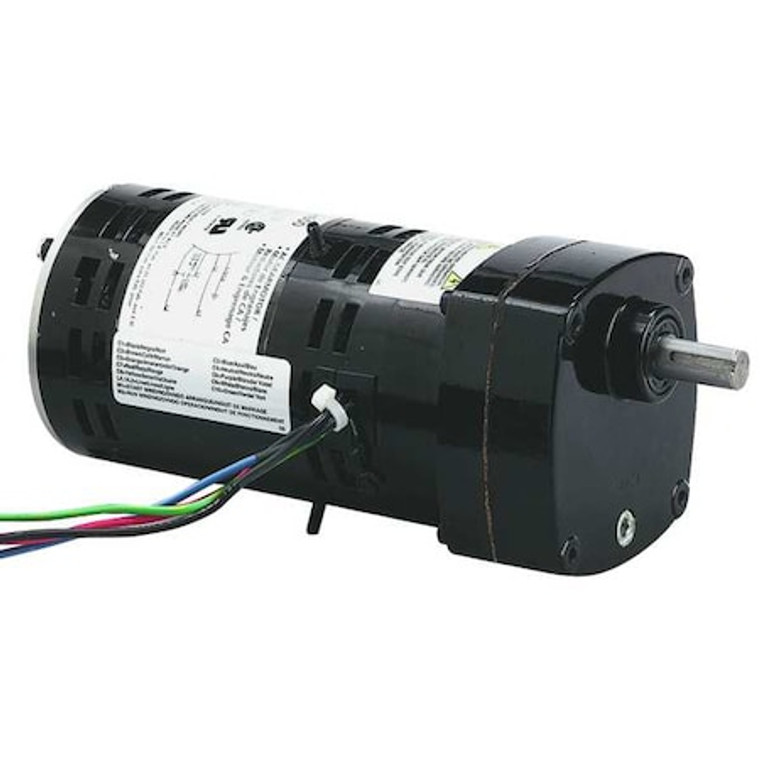

AC Gearmotor, 47.0 in-lb Max. Torque, 124 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 2H596

AC Gearmotor, 47.0 in-lb Max. Torque, 124 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 2H596

Dayton
SKU:
2H596
|
UPC:
190735219379
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Open Air-Over, Nameplate Speed 124 RPM, Maximum Torque 47 in-lb, Overhung Load Capacity 220 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Operating Voltage 115V AC, Inverter Rated No, Gear Ratio 13:1, Brake Type None, Shaft Orientation Parallel, Includes Capacitor Capacitor Included
Additional Information
Country of Origin:
United States
Item:
AC Gearmotor
Gearmotor Voltage:
115V AC
Gearmotor Phase:
1
Gearmotor Type:
AC Gearmotor
Max. Torque:
47 in-lb
Gearmotor Shaft Type:
Single
Gearmotor Shaft Orientation:
Parallel
Nameplate RPM:
124 RPM
Gearmotor Enclosure:
Open
Gearmotor Rotation:
CW/CCW
Gearmotor Brake Type:
None
Length Less Shaft:
7.5 in
Gearmotor Mounting Position:
All Angle
Full Load Amps:
1.05
Standards:
C-UL Recognized, UL Recognized
Input HP:
1/10 hp
Gear Material:
Hardened Steel
Bearings:
Ball on Motor, Needle Throughout
Seals:
Spring Loaded Lip Type on Input and Output Shaft
Enclosure:
Open
Gears:
1st Stage Helical, Hardened Steel, Subsequent Stages Spur
Shaft Length (Dimension V):
1";RPM Range=101 to 150"
Mounting:
All Position
Brake:
Adaptable to 5X400
Rotation:
CW/CCW
Housing:
Die Cast Aluminum
Shaft Orientation:
Parallel
Motor Type:
Permanent Split Capacitor
Gear Case Material:
Die Cast Aluminum
Overhung Load:
220 lb
Thermal Protection:
None
Voltage:
115
Lubrication:
Permanent Heavy Fluid Gear Oil
Gear Type:
Helical (1st Stage), Spur (Subsequent Stages)
Shaft Dia. (Dimension U):
1/2 in
Phase:
Single
Gear Ratio:
13
Hz:
60 Hz
Max. Ambient Temp.:
40 Degrees C
Overall Height:
3.63 in
Overall Width:
3.63 in
Housing Material:
Die Cast Aluminum
Inverter Rating:
12.9
Output Shaft Length:
1 in
Frequency:
60 Hz
Overhung Load Capacity:
220 ft-lb
Maximum Torque:
47 in-lb
Inverter Rated:
No
Full Load Current:
1.05 A
Maximum Ambient Temperature:
104 Degrees F
Operating Voltage:
115V AC
Brake Type:
None
Nameplate Speed:
124 RPM
Mount Hole Center-to-Center Length:
2.63 in
Motor Enclosure:
Open Air-Over
Seal Type:
Spring Loaded Lip Type on Input and Output Shaft
Mounting Orientation:
Any Angle
Number of Output Shafts:
1
Mount Type:
Any Position
Bearing Type:
Ball on Motor, Needle Throughout
Input Horsepower:
0.1 hp
Keyway Width:
1/8 in
Mount Hole Center-to-Center Width:
2.63 in
Output Shaft Diameter:
1/2 in
Keyway Depth:
3/4 in
Includes Capacitor:
Capacitor Included
Package Quantity:
1
