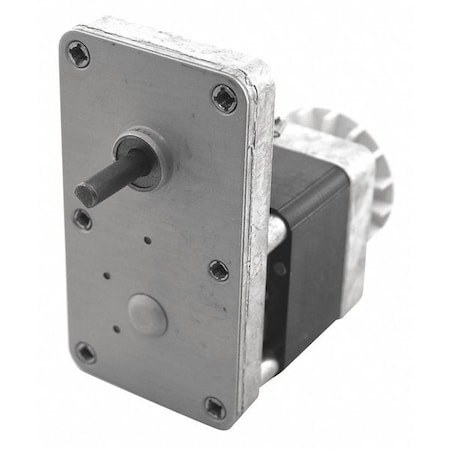

AC Gearmotor, 42.0 in-lb Max. Torque, 1 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 52JE38

AC Gearmotor, 42.0 in-lb Max. Torque, 1 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 52JE38

Dayton
SKU:
52JE38
|
UPC:
663001399360
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Open Air-Over, Nameplate Speed 1 RPM, Maximum Torque 42 in-lb, Overhung Load Capacity 30 ft-lb, Rotation CW/CCW, Output Shaft Height 1.09 in, Mounting Orientation Horizontal, Operating Voltage 115V AC, Gear Ratio 2541.1:1, Brake Type Cone, Shaft Orientation Parallel, Motor Insulation Class B
Additional Information
Country of Origin:
Mexico
Item:
AC Gearmotor
Gearmotor Voltage:
115V AC
Gearmotor Phase:
1
Gearmotor Type:
AC Gearmotor
Max. Torque:
42 in-lb
Gearmotor Shaft Type:
Single
Gearmotor Shaft Orientation:
Parallel
Nameplate RPM:
1 RPM
Gearmotor Enclosure:
Open
Gearmotor Rotation:
CW/CCW
Gearmotor Brake Type:
Cone
Length Less Shaft:
3.88 in
Gearmotor Mounting Position:
Horizontal
Full Load Amps:
0.35
Standards:
UL Recognized
Input HP:
1/100 hp
Finish:
Unpainted
Capacitor Required:
Yes
Overhung Load:
30 lb
Gears:
Spur
Gear Ratio:
2541.1
Overall Length:
3.86 in
Lubrication:
Grease Filled
No Load RPM:
1.4 RPM
Gear Type:
Spur
Insulation Class:
b
Number of Brake Discs Required:
0
Bearings:
Sintered Bronze Sleeve
Housing:
Die Cast Zinc
Starting Torque:
56 in-lb
Enclosure:
Open
Shaft:
Single Output
RPM @ 50 Hz:
0.83
Reversible Shaft Output:
Yes
Rotation:
CW/CCW
Application:
Agriculture, Amusement Devices, Controls, Conveyors, DVD Kiosks, Food and Restaurant Equipment, Ice Dispensing, Industrial Machinery, Ingredient Motors, Mail Sorting, Packaging, Pellet and Corn Stoves, Power Transmission, Printing Press, Pumps, Secur
Thermal Protection:
Auto
Phase:
Single
Motor Type:
Permanent Split Capacitor
Max. Ambient Temp.:
40 Degrees C
Hz:
60/50 Hz
Gear Case Material:
Die Cast Zinc
Voltage:
115
Shaft Dia. (Dimension U):
1/4 in
RPM Range:
0 to 15
Motor Shaft Design:
Flat
Mounting:
Output Shaft Horizontal Only
Gear Material:
Sintered Steel
Shaft Orientation:
Parallel
Brake:
Cone
Shaft Length (Dimension V):
1";Service Factor=1"
Housing Material:
Die Cast Zinc
Brake Type:
Cone
No Load Speed:
1.4 RPM
Maximum Torque:
42 in-lb
Number of Output Shafts:
1
Nameplate Speed:
1 RPM
Output Shaft Length:
1 in
Motor Insulation Class:
B
Overhung Load Capacity:
30 ft-lb
Mounting Orientation:
Horizontal
Mount Hole Center-to-Center Width:
1.69 in
Housing Material Finish:
Unpainted
Output Shaft Diameter:
1/4 in
Operating Voltage:
115V AC
Mount Hole Center-to-Center Length:
3.53 in
Input Horsepower:
0.1 hp
Output Shaft Height:
1.09 in
Overall Width:
2.19 in
Motor Enclosure:
Open Air-Over
Overall Height:
4.3 in
Maximum Ambient Temperature:
104 Degrees F
Mount Type:
Horizontal
Frequency:
50 Hz, 60 Hz
Full Load Current:
0.35 A
Bearing Type:
Sintered Bronze Sleeve
Package Quantity:
1
