AC Gearmotor, 400.0 in-lb Max. Torque, 30 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 1LPP4
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

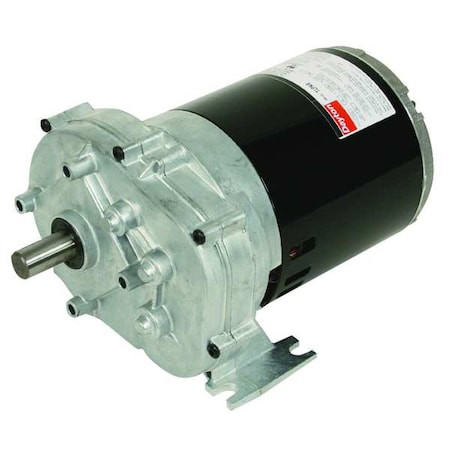

AC Gearmotor, 400.0 in-lb Max. Torque, 30 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 1LPP4
AC Gearmotor, Number of Output Shafts 1, Motor Type Split-Phase, Motor Enclosure Open Dripproof, Nameplate Speed 30 RPM, Maximum Torque 400 in-lb, Overhung Load Capacity 190 ft-lb, Rotation CW/CCW, Output Shaft Height 3 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Inverter Rated No, Gear Ratio 57:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class B, Motor Duty Class Continuous, AGMA Gear Class Class 9
- Country of Origin:
- United States
- Item:
- AC Gearmotor
- Gearmotor Voltage:
- 115V AC
- Gearmotor Phase:
- 1
- Gearmotor Type:
- AC Gearmotor
- Max. Torque:
- 400 in-lb
- Gearmotor Shaft Type:
- Single
- Gearmotor Shaft Orientation:
- Parallel
- Nameplate RPM:
- 30 RPM
- Gearmotor Enclosure:
- Open Dripproof
- Gearmotor Rotation:
- CW/CCW
- Gearmotor Brake Type:
- None
- Length Less Shaft:
- 9.28 in
- Gearmotor Mounting Position:
- All Angle
- Full Load Amps:
- 3.9
- Keyway Size Type:
- #605 Woodruff Key
- Standards:
- C-UL Recognized, UL Recognized
- Input HP:
- 1/4 hp
- Voltage:
- 115
- Housing:
- Die Cast Zinc
- Shaft Length (Dimension V):
- 1.5 in_x000D_
- Rotation:
- CW/CCW
- Gears:
- Phenolic/Steel
- Shaft Dia. (Dimension U):
- 3/4 in
- Seals:
- Lip Type on Input and Output Shaft
- Max. Ambient Temp.:
- 40 Degrees C
- Gear Ratio:
- 57
- Motor Type:
- Split-Phase
- Shaft Orientation:
- Parallel
- Phase:
- Single
- Enclosure:
- ODP
- Mounting:
- All Position
- Gear Material:
- Phenolic, Steel
- Bearings:
- Ball on Motor, Porous Bronze Sleeve on Case
- Finish:
- Unpainted
- Lubrication:
- Grease Filled
- RPM Range:
- 16 to 30
- Reversible Shaft Output:
- No
- Overhung Load:
- 190 lb
- Hz:
- 60 Hz
- Shaft:
- Single Output
- Thermal Protection:
- None
- Keyway Size:
- #605 Woodruff Key
- Gear Case Material:
- Die Cast Zinc
- Insulation Class:
- b
- Gear Type:
- Helical (1st Stage), Spur (Subsequent Stages)
- Overall Width:
- 8.13 in
- Overall Height:
- 6 in
- Housing Material:
- Die Cast Zinc
- Maximum Torque:
- 400 in-lb
- Overhung Load Capacity:
- 190 ft-lb
- Output Shaft Height:
- 3 in
- Mount Hole Center-to-Center Width:
- 7.13 in
- Nameplate Speed:
- 30 RPM
- Inverter Rated:
- No
- Keyway Width:
- 3/16 in
- Motor Insulation Class:
- B
- Bearing Type:
- Ball on Motor, Porous Bronze Sleeve on Case
- Operating Voltage:
- 115V AC
- Frequency:
- 60 Hz
- Motor Enclosure:
- Open Dripproof
- Output Shaft Diameter:
- 3/4 in
- Keyway Depth:
- 5/8 in
- Number of Output Shafts:
- 1
- Seal Type:
- Lip Type on Input and Output Shaft
- Inverter Rating:
- 57
- Mounting Orientation:
- Any Angle
- Mount Hole Center-to-Center Length:
- 2.38 in
- Keyway Type:
- Woodruff
- Mount Type:
- Any Position
- Output Shaft Length:
- 1 1/2 in
- Brake Type:
- None
- Maximum Ambient Temperature:
- 104 Degrees F
- Full Load Current:
- 3.9 A
- Housing Material Finish:
- Unpainted
- Input Horsepower:
- 0.25 hp
- Motor Duty Class:
- Continuous
- AGMA Gear Class:
- Class 9
- Package Quantity:
- 1
-
-
