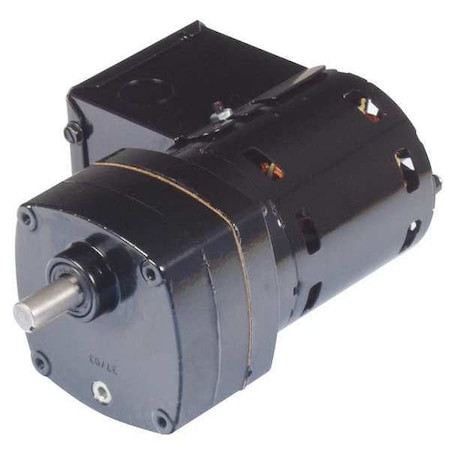

AC Gearmotor, 30.0 in-lb Max. Torque, 95 RPM Nameplate RPM, 230V AC Voltage, 1 Phase - 1L517

AC Gearmotor, 30.0 in-lb Max. Torque, 95 RPM Nameplate RPM, 230V AC Voltage, 1 Phase - 1L517

Dayton
SKU:
1L517
|
UPC:
190735142509
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Nonventilated, Nameplate Speed 95 RPM, Maximum Torque 30 in-lb, Overhung Load Capacity 90 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Operating Voltage 230V AC, Inverter Rated No, Gear Ratio 17:1, Brake Type None, Shaft Orientation Parallel, Includes Capacitor Capacitor Included, Application Washdown
Additional Information
Country of Origin:
United States
Item:
AC Gearmotor
Gearmotor Voltage:
230V AC
Gearmotor Phase:
1
Gearmotor Type:
AC Gearmotor
Max. Torque:
30 in-lb
Gearmotor Shaft Type:
Single
Gearmotor Shaft Orientation:
Parallel
Nameplate RPM:
95 RPM
Gearmotor Enclosure:
Totally Enclosed Nonventilated
Gearmotor Rotation:
CW/CCW
Gearmotor Brake Type:
None
Length Less Shaft:
8 in
Gearmotor Mounting Position:
All Angle
Full Load Amps:
0.3
Standards:
UL Recognized
Input HP:
1/20 hp
Enclosure:
TENV
RPM Range:
76 to 100
Capacitor Required:
Yes
Gear Ratio:
17
Hz:
60/50 Hz
Phase:
Single
Mounting:
All Position
Lubrication:
Permanent Heavy Duty Gear Oil
Overhung Load:
90 lb
Gears:
1st Stage Steel, Helical, Subsequent Stages Steel or Heat Treated Powdered Metal Spur
Bearings:
Ball on Motor, Heavy Duty Needle on Case
Shaft Dia. (Dimension U):
1/2 in
Rotation:
CW/CCW
Dimension C:
9.04 in
Thermal Protection:
None
Dimension L:
4.92";Motor Type=Permanent Split Capacitor"
Shaft Length (Dimension V):
1";Gear Type=Helical (1st Stage), Spur"
Brake:
Adaptable to 5X400
Gear Material:
Hardened Steel
Shaft Orientation:
Parallel
Voltage:
230
Dimension X:
2.1";Seals=Spring Loaded Lip Type on Input and Output Shaft"
Max. Ambient Temp.:
40 Degrees C
Application:
Washdown
Overall Width:
3.63 in
Overall Height:
5.38 in
Housing Material:
Die Cast Aluminum
Number of Output Shafts:
1
Maximum Ambient Temperature:
104 Degrees F
Inverter Rated:
No
Seal Type:
Lip Type on Input and Output Shaft
Output Shaft Diameter:
3/4 in
Mounting Orientation:
Any Angle
Bearing Type:
Ball on Motor, Heavy Duty Ball and Needle Roller on Case
Maximum Torque:
30 in-lb
Full Load Current:
0.3 A
Motor Enclosure:
Totally Enclosed Nonventilated
Nameplate Speed:
95 RPM
Inverter Rating:
17
Input Horsepower:
0.05 hp
Mount Type:
Any Position
Operating Voltage:
230V AC
Includes Capacitor:
Capacitor Included
Output Shaft Length:
2 in
Brake Type:
None
Overhung Load Capacity:
90 ft-lb
Frequency:
50 Hz, 60 Hz
Package Quantity:
1
