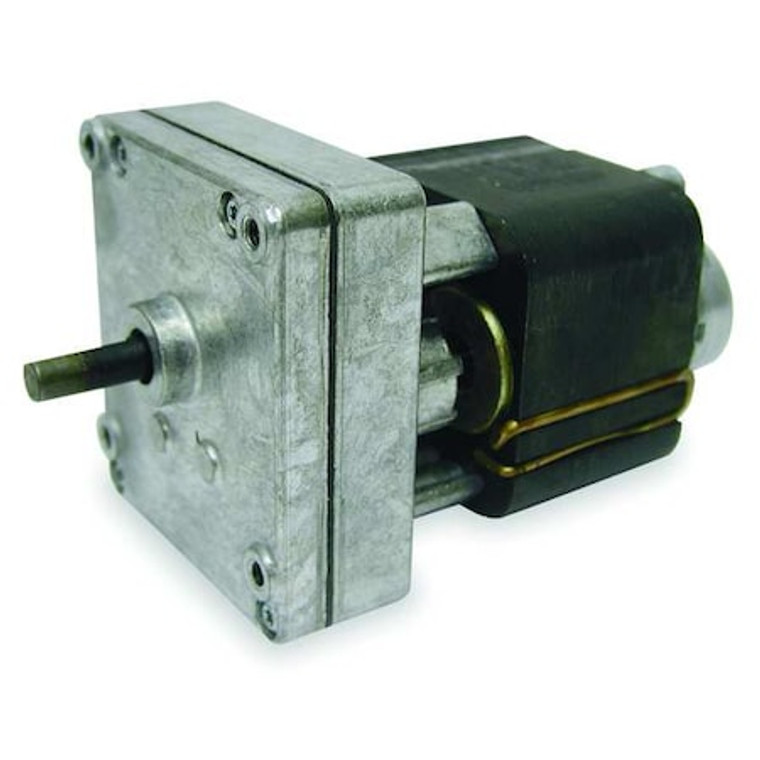

AC Gearmotor, 3.3 in-lb Max. Torque, 368 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 1MBG7

AC Gearmotor, 3.3 in-lb Max. Torque, 368 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 1MBG7

Dayton
SKU:
1MBG7
|
UPC:
190735146439
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
AC Gearmotor, Number of Output Shafts 1, Motor Type Shaded Pole, Motor Enclosure Open Air-Over, Nameplate Speed 368 RPM, Maximum Torque 3.3 in-lb, Overhung Load Capacity 1 ft-lb, Rotation CW, Output Shaft Height 1.41 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Gear Ratio 9:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class A
Additional Information
Country of Origin:
Mexico
Item:
AC Gearmotor
Gearmotor Voltage:
115V AC
Gearmotor Phase:
1
Gearmotor Type:
AC Gearmotor
Max. Torque:
3.3 in-lb
Gearmotor Shaft Type:
Single
Gearmotor Shaft Orientation:
Parallel
Nameplate RPM:
368 RPM
Gearmotor Enclosure:
Open
Gearmotor Rotation:
CW
Gearmotor Brake Type:
None
Length Less Shaft:
4.88 in
Gearmotor Mounting Position:
All Angle
Full Load Amps:
1.4
Standards:
UL Recognized
Input HP:
1/42 hp
Motor Type:
Shaded Pole
Gears:
All Spur Gears
Phase:
Single
Enclosure:
Open
Thermal Protection:
Auto
Hz:
60/50 Hz
RPM Range:
251 to 500
Dimension A:
4.31 in
Max. Ambient Temp.:
40 Degrees C
Shaft Dia. (Dimension U):
5/16";Rotation=CW"
Mounting:
All Position
Housing:
Die Cast Zinc
Gear Type:
Spur
Overhung Load:
1 lb
Voltage:
115
Includes:
Cooling Fan, Spring Clip
Insulation Class:
A
Bearings:
Ball and Porous Bronze on Motor, Needle on Case
Gear Ratio:
9
No Load RPM:
395 RPM
Shaft Length (Dimension V):
0.75";Dimension B=1.17 in"
Shaft Orientation:
Parallel
Application:
Amusement Devices, Conveyor Toasters, Displays, Food and Restaurant Equipment, Ingredient Motors, Pumps, Security Systems, Valve Actuators, Vending, Water Softeners, X-ray Equipment
Lubrication:
Grease Filled
Gear Case Material:
Die Cast Zinc
Seals:
Gasketed Gear Case
Housing Material:
Die Cast Zinc
Output Shaft Length:
3/4 in
Motor Insulation Class:
A
Mount Hole Center-to-Center Width:
2.38 in
Full Load Current:
1.4 A
Mount Type:
Any Position
Overhung Load Capacity:
1 ft-lb
Motor Enclosure:
Open Air-Over
Mount Hole Center-to-Center Length:
2.38 in
Mounting Orientation:
Any Angle
Overall Height:
2.92 in
Seal Type:
Gasketed Gear Case
Output Shaft Diameter:
5/16 in
Maximum Ambient Temperature:
104 Degrees F
Overall Width:
3.16 in
Frequency:
50 Hz, 60 Hz
Bearing Type:
Ball and Porous Bronze on Motor, Needle on Case
Number of Output Shafts:
1
Maximum Torque:
3.3 in-lb
Brake Type:
None
Operating Voltage:
115V AC
Output Shaft Height:
1.41 in
Nameplate Speed:
368 RPM
No Load Speed:
395 RPM
Input Horsepower:
0.252 hp
Package Quantity:
1
