AC Gearmotor, 26.0 in-lb Max. Torque, 4 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 52JE39
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

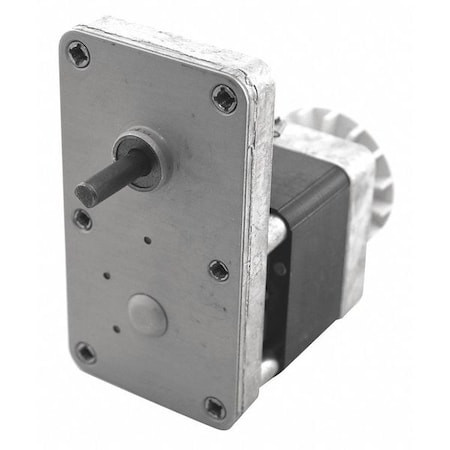

AC Gearmotor, 26.0 in-lb Max. Torque, 4 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 52JE39
AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Open Air-Over, Nameplate Speed 4 RPM, Maximum Torque 26 in-lb, Overhung Load Capacity 30 ft-lb, Rotation CW/CCW, Output Shaft Height 1.09 in, Mounting Orientation Horizontal, Operating Voltage 115V AC, Gear Ratio 654.2:1, Brake Type Cone, Shaft Orientation Parallel, Motor Insulation Class B
- Country of Origin:
- Mexico
- Item:
- AC Gearmotor
- Gearmotor Voltage:
- 115V AC
- Gearmotor Phase:
- 1
- Gearmotor Type:
- AC Gearmotor
- Max. Torque:
- 26 in-lb
- Gearmotor Shaft Type:
- Single
- Gearmotor Shaft Orientation:
- Parallel
- Nameplate RPM:
- 4 RPM
- Gearmotor Enclosure:
- Open
- Gearmotor Rotation:
- CW/CCW
- Gearmotor Brake Type:
- Cone
- Length Less Shaft:
- 3.88 in
- Gearmotor Mounting Position:
- Horizontal
- Full Load Amps:
- 0.35
- Standards:
- UL Recognized
- Input HP:
- 1/100 hp
- Max. Ambient Temp.:
- 40 Degrees C
- Shaft:
- Single Output
- No Load RPM:
- 4.8 RPM
- Enclosure:
- Open
- Shaft Orientation:
- Parallel
- Lubrication:
- Grease Filled
- Shaft Dia. (Dimension U):
- 1/4 in
- Starting Torque:
- 35 in-lb
- Mounting:
- Output Shaft Horizontal Only
- Housing:
- Die Cast Zinc
- Finish:
- Unpainted
- Brake:
- Cone
- Gear Type:
- Spur
- Shaft Length (Dimension V):
- 1 in
- Overhung Load:
- 30 lb
- Gear Case Material:
- Die Cast Zinc
- Gear Material:
- Sintered Steel
- Bearings:
- Sintered Bronze Sleeve
- Gear Ratio:
- 654.2
- Insulation Class:
- b
- Capacitor Required:
- Yes
- Hz:
- 60/50 Hz
- Application:
- Agriculture, Amusement Devices, Controls, Conveyors, DVD Kiosks, Food and Restaurant Equipment, Ice Dispensing, Industrial Machinery, Ingredient Motors, Mail Sorting, Packaging, Pellet and Corn Stoves, Power Transmission, Printing Press, Pumps, Secur
- Overall Length:
- 3.86 in
- Thermal Protection:
- Auto
- Motor Shaft Design:
- Flat
- RPM Range:
- 0 to 15
- Gears:
- Spur
- Number of Brake Discs Required:
- 0
- Reversible Shaft Output:
- Yes
- Phase:
- Single
- RPM @ 50 Hz:
- 3.3 RPM
- Motor Type:
- Permanent Split Capacitor
- Service Factor:
- 1
- Voltage:
- 115
- Rotation:
- CW/CCW
- Housing Material:
- Die Cast Zinc
- Overall Width:
- 2.19 in
- Mount Hole Center-to-Center Length:
- 3.53 in
- Output Shaft Height:
- 1.09 in
- Housing Material Finish:
- Unpainted
- Overall Height:
- 4.3 in
- Mounting Orientation:
- Horizontal
- Number of Output Shafts:
- 1
- Full Load Current:
- 0.35 A
- Overhung Load Capacity:
- 30 ft-lb
- Nameplate Speed:
- 4 RPM
- Input Horsepower:
- 0.1 hp
- Mount Hole Center-to-Center Width:
- 1.69 in
- Brake Type:
- Cone
- No Load Speed:
- 4.8 RPM
- Operating Voltage:
- 115V AC
- Motor Enclosure:
- Open Air-Over
- Bearing Type:
- Sintered Bronze Sleeve
- Output Shaft Diameter:
- 1/4 in
- Motor Insulation Class:
- B
- Mount Type:
- Horizontal
- Output Shaft Length:
- 1 in
- Frequency:
- 50 Hz, 60 Hz
- Maximum Torque:
- 26 in-lb
- Maximum Ambient Temperature:
- 104 Degrees F
- Package Quantity:
- 1
-
-
