AC Gearmotor, 4.2 in-lb Max. Torque, 50 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 52JE28
Manufacturer: Dayton
MFR # 52JE28
Log in for pricing

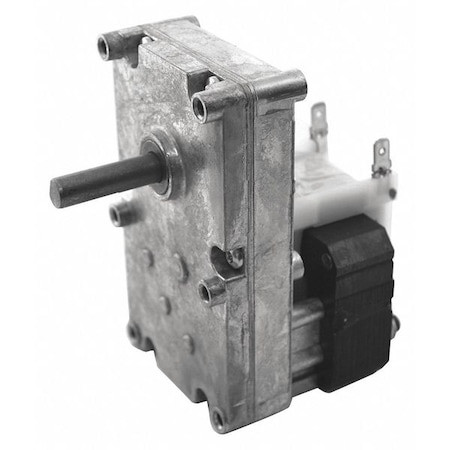

AC Gearmotor, 25.0 in-lb Max. Torque, 50 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 52JE15
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton
AC Gearmotor, 25.0 in-lb Max. Torque, 50 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 52JE15
AC Gearmotor, Number of Output Shafts 1, Motor Type Shaded Pole, Motor Enclosure Open Air-Over, Nameplate Speed 50 RPM, Maximum Torque 25 in-lb, Overhung Load Capacity 30 ft-lb, Rotation CW, Output Shaft Height 1.19 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Gear Ratio 63.4:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class A
- Country of Origin:
- Mexico
- Item:
- AC Gearmotor
- Gearmotor Voltage:
- 115V AC
- Gearmotor Phase:
- 1
- Gearmotor Type:
- AC Gearmotor
- Max. Torque:
- 25 in-lb
- Gearmotor Shaft Type:
- Single
- Gearmotor Shaft Orientation:
- Parallel
- Nameplate RPM:
- 50 RPM
- Gearmotor Enclosure:
- Open
- Gearmotor Rotation:
- CW
- Gearmotor Brake Type:
- None
- Length Less Shaft:
- 3.38 in
- Gearmotor Mounting Position:
- All Angle
- Full Load Amps:
- 1.30
- Standards:
- UL Recognized
- Input HP:
- 1/50 hp
- Shaft Length (Dimension V):
- 1.3125 in
- Brake:
- None
- Shaft Orientation:
- Parallel
- Gear Material:
- Sintered Steel
- Starting Torque:
- 20 in-lb
- Overall Length:
- 10.87 in
- Capacitor Required:
- No
- RPM @ 50 Hz:
- 42 RPM
- Enclosure:
- Open
- Shaft:
- Single Output
- Gear Ratio:
- 63.4
- Gear Type:
- Spur
- Voltage:
- 115
- Mounting:
- All Position
- Application:
- Agriculture, Amusement Devices, Controls, Conveyors, DVD Kiosks, Food and Restaurant Equipment, Ice Dispensing, Industrial Machinery, Ingredient Motors, Mail Sorting, Packaging, Pellet and Corn Stoves, Power Transmission, Printing Press, Pumps, Secur
- Shaft Dia. (Dimension U):
- 3/8 in
- Reversible Shaft Output:
- No
- Gears:
- Spur
- Number of Brake Discs Required:
- 0
- Motor Shaft Design:
- Flat
- Motor Type:
- Shaded Pole
- Bearings:
- Sintered Bronze Sleeve
- Gear Case Material:
- Die Cast Zinc
- Finish:
- Unpainted
- Phase:
- Single
- Hz:
- 60/50 Hz
- Thermal Protection:
- Auto
- Service Factor:
- 1
- No Load RPM:
- 55 RPM
- Lubrication:
- Grease Filled
- Housing:
- Die Cast Zinc
- Insulation Class:
- A
- RPM Range:
- 31 to 50
- Rotation:
- CW
- Overhung Load:
- 30 lb
- Max. Ambient Temp.:
- 40 Degrees C
- Housing Material:
- Die Cast Zinc
- Bearing Type:
- Sintered Bronze Sleeve
- Operating Voltage:
- 115V AC
- Input Horsepower:
- 0.02 hp
- Housing Material Finish:
- Unpainted
- Motor Insulation Class:
- A
- Maximum Torque:
- 25 in-lb
- Overhung Load Capacity:
- 30 ft-lb
- Maximum Ambient Temperature:
- 104 Degrees F
- Mounting Orientation:
- Any Angle
- Output Shaft Height:
- 1.19 in
- Overall Width:
- 6.79 in
- Output Shaft Length:
- 1 5/16 in
- Mount Hole Center-to-Center Length:
- 4.31 in
- Output Shaft Diameter:
- 3/8 in
- Overall Height:
- 5.69 in
- Mount Type:
- Any Position
- Mount Hole Center-to-Center Width:
- 2.38 in
- Frequency:
- 50 Hz, 60 Hz
- Motor Enclosure:
- Open Air-Over
- Nameplate Speed:
- 50 RPM
- Full Load Current:
- 1.3 A
- Number of Output Shafts:
- 1
- No Load Speed:
- 55 RPM
- Brake Type:
- None
- Package Quantity:
- 1
-
-
AC Gearmotor, 100.0 in-lb Max. Torque, 1 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 1LNG2
Manufacturer: Dayton
MFR # 1LNG2
Log in for pricing
-
AC Gearmotor, 42.0 in-lb Max. Torque, 1 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 52JE38
Manufacturer: Dayton
MFR # 52JE38
Log in for pricing
-
AC Gearmotor, 59.0 in-lb Max. Torque, 60 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 1LPL2
Manufacturer: Dayton
MFR # 1LPL2
Log in for pricing
