AC Gearmotor, 240.0 in-lb Max. Torque, 59 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 6K353
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

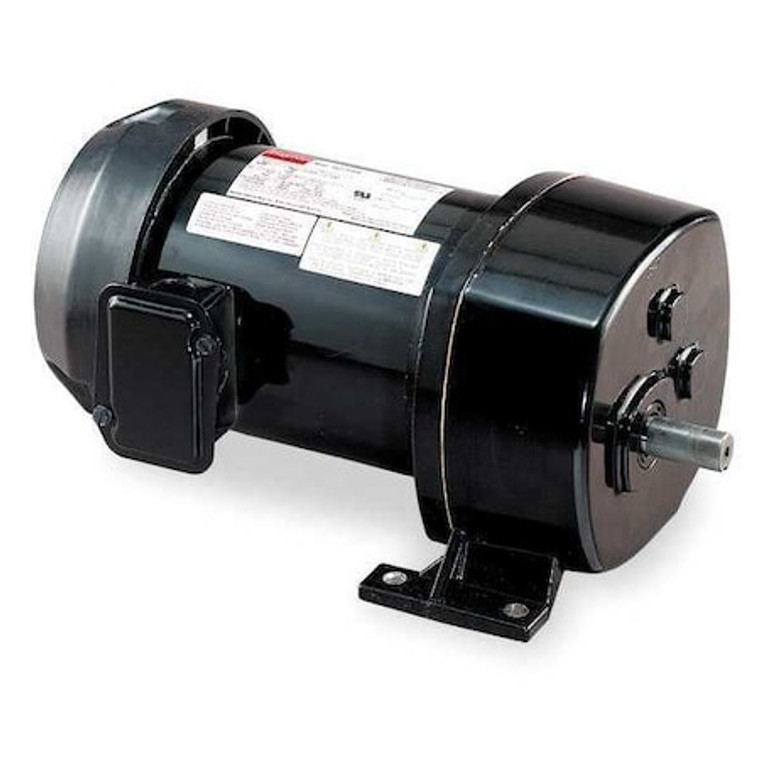

AC Gearmotor, 240.0 in-lb Max. Torque, 59 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 6K353
AC Gearmotor, Number of Output Shafts 1, Motor Type Split-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 59 RPM, Maximum Torque 240 in-lb, Overhung Load Capacity 325 ft-lb, Rotation CW/CCW, Output Shaft Height 3 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Inverter Rated No, Gear Ratio 29:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class B, Motor Duty Class Continuous, AGMA Gear Class Class 9
- Country of Origin:
- United States
- Item:
- AC Gearmotor
- Gearmotor Voltage:
- 115V AC
- Gearmotor Phase:
- 1
- Gearmotor Type:
- AC Gearmotor
- Max. Torque:
- 240 in-lb
- Gearmotor Shaft Type:
- Single
- Gearmotor Shaft Orientation:
- Parallel
- Nameplate RPM:
- 59 RPM
- Gearmotor Enclosure:
- Totally Enclosed Fan-Cooled
- Gearmotor Rotation:
- CW/CCW
- Gearmotor Brake Type:
- None
- Length Less Shaft:
- 12.11 in
- Gearmotor Mounting Position:
- All Angle
- Full Load Amps:
- 4
- Standards:
- C-UL Recognized, UL Recognized
- Input HP:
- 1/4 hp
- Seals:
- Lip Type on Input and Output Shaft
- Shaft Length (Dimension V):
- 1.5 in_x000D_
- Housing:
- Die Cast Aluminum
- Rotation:
- CW/CCW
- Bearings:
- Ball on Motor, Heavy Duty Ball, Needle Roller and Thrust Balls on Case
- Shaft Orientation:
- Parallel
- Phase:
- Single
- Gear Case Material:
- Die Cast Aluminum
- Motor Type:
- Split-Phase
- Overhung Load:
- 325 lb
- Mounting:
- All Position
- Gear Material:
- Hardened Steel
- RPM Range:
- 51 to 75
- Thermal Protection:
- None
- Max. Ambient Temp.:
- 40 Degrees C
- Voltage:
- 115
- Brake:
- Adaptable to 4Z447
- Hz:
- 60 Hz
- Lubrication:
- Permanent Heavy Duty Gear Oil
- Gears:
- 1st Stage Helical, AGMA Class 9, Hardened Steel, Subsequent Stages Spur
- Shaft Dia. (Dimension U):
- 3/4 in
- Gear Ratio:
- 29
- Gear Type:
- Helical (1st Stage), Spur (Subsequent Stages)
- Enclosure:
- TEFC
- Overall Width:
- 8.13 in
- Overall Height:
- 6.63 in
- Housing Material:
- Die Cast Aluminum
- Mount Hole Center-to-Center Length:
- 2.5 in
- Keyway Type:
- Square
- Overhung Load Capacity:
- 325 ft-lb
- Motor Enclosure:
- Totally Enclosed Fan-Cooled
- Keyway Width:
- 3/16 in
- Brake Type:
- None
- Maximum Torque:
- 240 in-lb
- Seal Type:
- Lip Type on Input and Output Shaft
- Mount Type:
- Any Position
- AGMA Gear Class:
- Class 9
- Output Shaft Height:
- 3 in
- Output Shaft Length:
- 1 1/2 in
- Number of Output Shafts:
- 1
- Operating Voltage:
- 115V AC
- Output Shaft Diameter:
- 3/4 in
- Inverter Rating:
- 28.6
- Keyway Depth:
- 1/8 in
- Maximum Ambient Temperature:
- 104 Degrees F
- Full Load Current:
- 4.6 A
- Mounting Orientation:
- Any Angle
- Input Horsepower:
- 0.25 hp
- Inverter Rated:
- No
- Frequency:
- 60 Hz
- Nameplate Speed:
- 59 RPM
- Mount Hole Center-to-Center Width:
- 7.13 in
- Bearing Type:
- Ball on Motor, Heavy Duty Ball, Needle Roller and Thrust Balls on Case
- Motor Insulation Class:
- B
- Housing Material Finish:
- Painted
- Motor Duty Class:
- Continuous
- Package Quantity:
- 1
-
-
