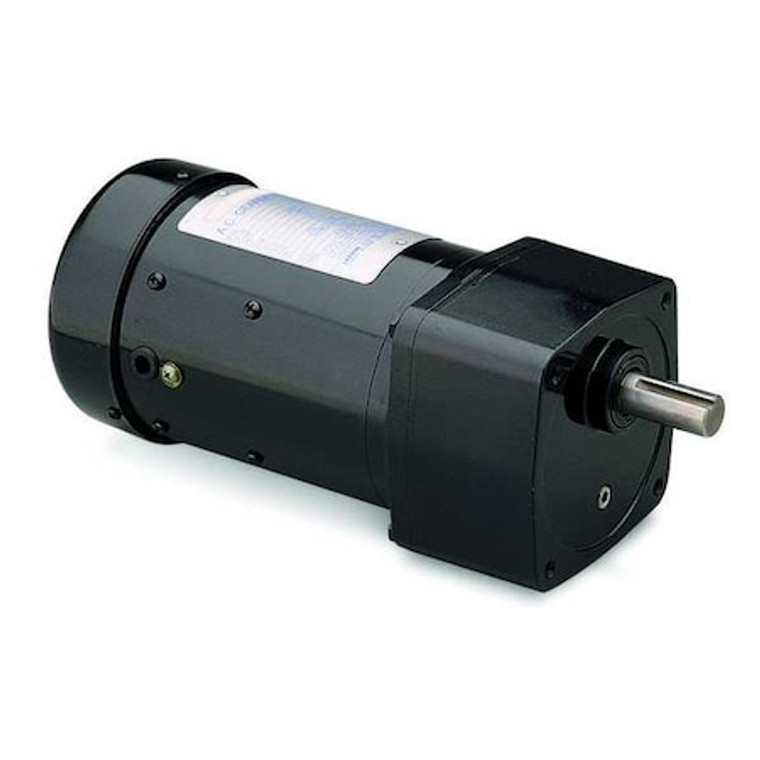

AC Gearmotor, 218.0 in-lb Max. Torque, 85 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase - 096039.00

AC Gearmotor, 218.0 in-lb Max. Torque, 85 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase - 096039.00

Dayton
SKU:
096039.00
|
UPC:
190735369074
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 85 RPM, Maximum Torque 218 in-lb, Overhung Load Capacity 300 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Operating Voltage 230/460V AC, Gear Ratio 20:1, Brake Type None, Shaft Orientation Parallel, AGMA Gear Class Class 9, Application Inverter Duty
Additional Information
Country of Origin:
United States
Item:
AC Gearmotor
Gearmotor Voltage:
230/460V AC
Gearmotor Phase:
3
Gearmotor Type:
AC Gearmotor
Max. Torque:
218 in-lb
Gearmotor Shaft Type:
Single
Gearmotor Shaft Orientation:
Parallel
Nameplate RPM:
85 RPM
Gearmotor Enclosure:
Totally Enclosed Fan-Cooled
Gearmotor Rotation:
CW/CCW
Gearmotor Brake Type:
None
Length Less Shaft:
11.88 in
Gearmotor Mounting Position:
All Angle
Full Load Amps:
1.60/0.80
Standards:
CSA Certified, UL Recognized
Input HP:
1/3 hp
Rotation:
CW/CCW
Gear Type:
AGMA Class 9
Motor Type:
3-Phase
Shaft Orientation:
Parallel
Includes:
Conduit Box
Gears:
AGMA Class 9, Precision Machined and Hardened
Shaft Dia. (Dimension U):
3/4 in
Bearings:
Needle, Oversized on Output Shaft
Gear Material:
Precision Machined and Hardened
Voltage:
230/460
Seals:
Heavy Duty, Single Lip, Spring Loaded
Overhung Load:
300 lb
Shaft Length (Dimension V):
1.63";Housing=Die Cast Aluminum"
Mounting:
All Position
RPM Range:
76 to 100
Thermal Protection:
None
Hz:
60/50 Hz
Phase:
Three
Max. Ambient Temp.:
40 Degrees C
Enclosure:
TEFC
Gear Case Material:
Die Cast Aluminum
Gear Ratio:
20
Lubrication:
Permanent Heavy Duty Gear Oil
Application:
Inverter Duty
Housing Material:
Die Cast Aluminum
Output Shaft Diameter:
3/4 in
Frequency:
50 Hz, 60 Hz
Input Horsepower:
0.33 hp
Full Load Current:
1.60/0.80 A
Bearing Type:
Needle Roller, Oversized on Output Shaft
AGMA Gear Class:
Class 9
Nameplate Speed:
85 RPM
Overall Width:
4.97 in
Mount Type:
Any Position
Brake Type:
None
Number of Output Shafts:
1
Overhung Load Capacity:
300 ft-lb
Overall Height:
4.97 in
Maximum Ambient Temperature:
104 Degrees F
Output Shaft Length:
1 5/8 in
Operating Voltage:
230/460V AC
Maximum Torque:
218 in-lb
Seal Type:
Heavy Duty, Single Lip, Spring Loaded
Mounting Orientation:
Any Angle
Motor Enclosure:
Totally Enclosed Fan-Cooled
Package Quantity:
1
