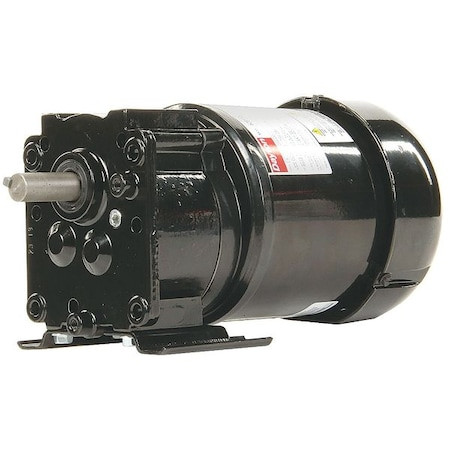

AC Gearmotor, 210.0 in-lb Max. Torque, 41 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase - 6Z819

AC Gearmotor, 210.0 in-lb Max. Torque, 41 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase - 6Z819

Dayton
SKU:
6Z819
|
UPC:
190735374948
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 41 RPM, Maximum Torque 210 in-lb, Overhung Load Capacity 175 ft-lb, Rotation CW/CCW, Output Shaft Height 3.5 in, Mounting Orientation Any Angle, Operating Voltage 115/230V AC, Inverter Rated No, Gear Ratio 43:1, Brake Type None, Shaft Orientation Parallel, Includes Capacitor Capacitor Included, AGMA Gear Class Class 9
Additional Information
Country of Origin:
United States
Item:
AC Gearmotor
Gearmotor Voltage:
115/230V AC
Gearmotor Phase:
1
Gearmotor Type:
AC Gearmotor
Max. Torque:
210 in-lb
Gearmotor Shaft Type:
Single
Gearmotor Shaft Orientation:
Parallel
Nameplate RPM:
41 RPM
Gearmotor Enclosure:
Totally Enclosed Fan-Cooled
Gearmotor Rotation:
CW/CCW
Gearmotor Brake Type:
None
Length Less Shaft:
9.56 in
Gearmotor Mounting Position:
All Angle
Full Load Amps:
2.1/1.1
Standards:
C-UL Recognized, CE Certified, UL Recognized
Input HP:
1/6 hp
Brake:
Adaptable to 5X400
Seals:
Lip Type on Input and Output Shaft
Shaft Orientation:
Parallel
Gear Ratio:
43
Bearings:
Ball on Motor, Heavy Duty Needle Roller and Thrust Balls on Case
RPM Range:
31 to 50
Gears:
1st Stage Helical, AGMA Class 9, Hardened Steel, Subsequent Stages Spur
Lubrication:
Permanent Heavy Duty Gear Oil
Number of Brake Discs Required:
2
Max. Ambient Temp.:
40 Degrees C
Phase:
Single
Capacitor Required:
Yes
Hz:
60/50 Hz
Gear Material:
Hardened Steel
Mounting:
All Position
Motor Type:
Permanent Split Capacitor
Shaft Length (Dimension V):
1.5 in_x000D_
Rotation:
CW/CCW
Enclosure:
TEFC
Shaft Dia. (Dimension U):
5/8 in
Gear Case Material:
Die Cast Aluminum
Voltage:
115/230
Overhung Load:
175 lb
Gear Type:
Helical (1st Stage), Spur (Subsequent Stages)
Housing:
Die Cast Aluminum
Thermal Protection:
None
Overall Height:
5.13 in
Overall Width:
6 in
Housing Material:
Die Cast Aluminum
Inverter Rated:
No
Mounting Orientation:
Any Angle
Maximum Ambient Temperature:
104 Degrees F
Input Horsepower:
0.167 hp
Keyway Type:
Rounded
Seal Type:
Lip Type on Input and Output Shaft
Frequency:
50 Hz, 60 Hz
Brake Type:
None
Motor Enclosure:
Totally Enclosed Fan-Cooled
Output Shaft Height:
3.5 in
Mount Type:
Any Position
AGMA Gear Class:
Class 9
Operating Voltage:
115/230V AC
Maximum Torque:
210 in-lb
Nameplate Speed:
41 RPM
Inverter Rating:
42.9
Mount Hole Center-to-Center Length:
1.5 in
Output Shaft Length:
1 1/2 in
Mount Hole Center-to-Center Width:
4 in
Full Load Current:
2.1/1.1 A
Overhung Load Capacity:
175 ft-lb
Keyway Depth:
1/16 in
Output Shaft Diameter:
5/8 in
Number of Output Shafts:
1
Bearing Type:
Ball on Motor, Heavy Duty Needle Roller and Thrust Balls on Case
Keyway Width:
3/16 mm
Includes Capacitor:
Capacitor Included
Package Quantity:
1
