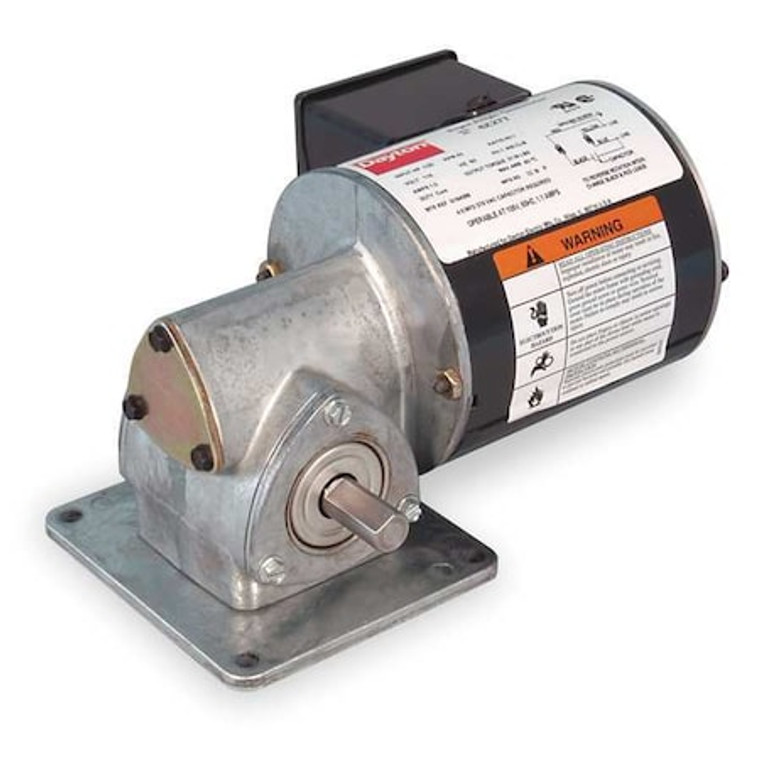

AC Gearmotor, 21.0 in-lb Max. Torque, 43 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 1XFY2

AC Gearmotor, 21.0 in-lb Max. Torque, 43 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 1XFY2

Dayton
SKU:
1XFY2
|
UPC:
190735149775
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Nonventilated, Nameplate Speed 43 RPM, Maximum Torque 21 in-lb, Overhung Load Capacity 70 ft-lb, Rotation CW/CCW, Output Shaft Height 1.53 in, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 115V AC, Gear Ratio 40:1, Brake Type None, Output Location Left Hand, Shaft Orientation Right Angle, Motor Insulation Class B
Additional Information
Country of Origin:
United States
Item:
AC Gearmotor
Gearmotor Voltage:
115V AC
Gearmotor Phase:
1
Gearmotor Type:
AC Gearmotor
Max. Torque:
21 in-lb
Gearmotor Shaft Type:
Single Left
Gearmotor Shaft Orientation:
Right Angle
Nameplate RPM:
43 RPM
Gearmotor Enclosure:
Totally Enclosed Nonventilated
Gearmotor Rotation:
CW/CCW
Gearmotor Brake Type:
None
Gearmotor Mounting Position:
Horizontal or Vertical Shaft Down
Full Load Amps:
1
Standards:
UL Recognized (E22922)
Input HP:
1/20 hp
Housing:
Die Cast Aluminum
Starting Torque:
16 in-lb
RPM Range:
31 to 50
Reversible Shaft Output:
Yes
Lubrication:
Grease Filled
Seals:
Lip Type on Input and Output Shaft
Gear Material:
Hardened Steel, Phenolic
Overall Length:
8.37 in
Thermal Protection:
None
Phase:
Single
Service Factor:
1
Enclosure:
TENV
Gears:
Hardened Steel, Phenolic Output Gear, Worm
Insulation Class:
b
Max. Ambient Temp.:
40 Degrees C
Bearings:
Ball on Case and Motor
Brake:
5X400
Mounting:
All Position Except Input Motor Shaft Up
RPM @ 50 Hz:
35
Capacitor Required:
Yes
Voltage:
115
Motor Type:
Permanent Split Capacitor
Shaft Orientation:
Right Angle
Rotation:
CW/CCW
Gear Ratio:
40
Number of Brake Discs Required:
1
Gear Case Material:
Zinc Alloy
Overhung Load:
70 lb
Gear Type:
Worm
Hz:
60/50 Hz
Overall Height:
4.53 in
Overall Width:
6.29 in
Housing Material:
Die Cast Aluminum
Frequency:
50 Hz, 60 Hz
Output Shaft Diameter:
1/2 in
Mount Hole Center-to-Center Length:
3.25 in
Output Shaft Length:
15/16 in
Brake Type:
None
Motor Insulation Class:
B
Number of Output Shafts:
1
Output Shaft Height:
1.53 in
Nameplate Speed:
43 RPM
Seal Type:
Lip Type on Input and Output Shaft
Bearing Type:
Ball on Case and Motor
Compatible Capacitor Manufacturer Part Number:
2MDV3
Motor Enclosure:
Totally Enclosed Nonventilated
Overhung Load Capacity:
70 ft-lb
Operating Voltage:
115V AC
Full Load Current:
1 A
Mounting Orientation:
Horizontal, Vertical with Shaft Down
Mount Type:
Horizontal or Vertical Shaft Down
Output Location:
Left Hand
Maximum Ambient Temperature:
104 Degrees F
Mount Hole Center-to-Center Width:
3.75 in
Input Horsepower:
0.05 hp
Maximum Torque:
21 in-lb
Package Quantity:
1
