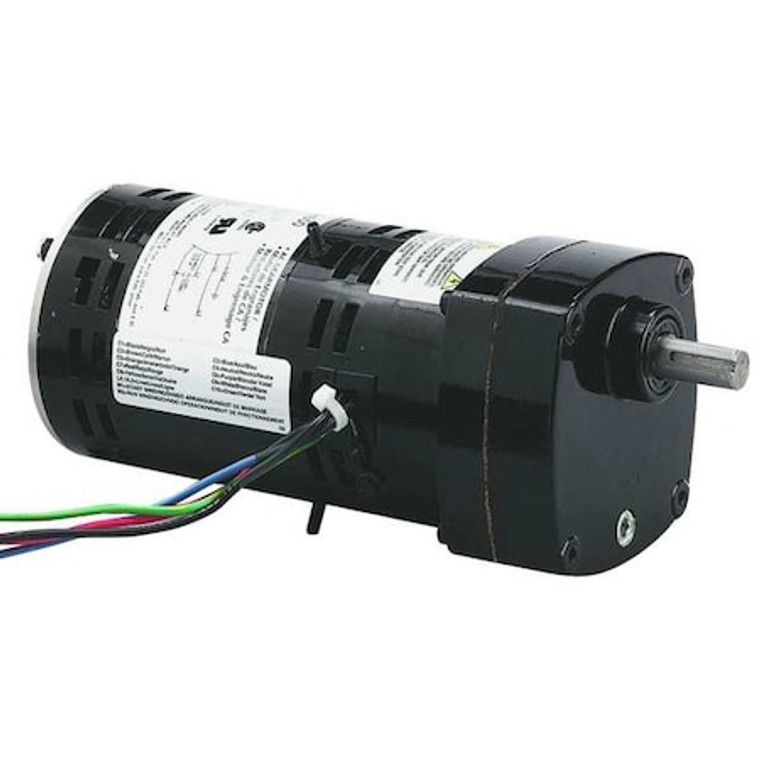

AC Gearmotor, 165.0 in-lb Max. Torque, 33 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 2H600

AC Gearmotor, 165.0 in-lb Max. Torque, 33 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 2H600

Dayton
SKU:
2H600
|
UPC:
190735219393
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Open Air-Over, Nameplate Speed 33 RPM, Maximum Torque 165 in-lb, Overhung Load Capacity 130 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Operating Voltage 115V AC, Inverter Rated No, Gear Ratio 49:1, Brake Type None, Shaft Orientation Parallel, Includes Capacitor Capacitor Included
Additional Information
Country of Origin:
United States
Item:
AC Gearmotor
Gearmotor Voltage:
115V AC
Gearmotor Phase:
1
Gearmotor Type:
AC Gearmotor
Max. Torque:
165 in-lb
Gearmotor Shaft Type:
Single
Gearmotor Shaft Orientation:
Parallel
Nameplate RPM:
33 RPM
Gearmotor Enclosure:
Open
Gearmotor Rotation:
CW/CCW
Gearmotor Brake Type:
None
Length Less Shaft:
7.5 in
Gearmotor Mounting Position:
All Angle
Full Load Amps:
1.05
Standards:
C-UL Recognized, UL Recognized
Input HP:
1/10 hp
RPM Range:
31 to 50
Enclosure:
Open
Gears:
1st Stage Helical, Hardened Steel, Subsequent Stages Spur
Housing:
Die Cast Aluminum
Shaft Length (Dimension V):
1";Hz=60 Hz"
Voltage:
115
Gear Ratio:
49
Gear Case Material:
Die Cast Aluminum
Shaft Dia. (Dimension U):
1/2 in
Gear Type:
Helical (1st Stage), Spur (Subsequent Stages)
Phase:
Single
Shaft Orientation:
Parallel
Overhung Load:
130 lb
Thermal Protection:
None
Mounting:
All Position
Brake:
Adaptable to 5X400
Bearings:
Ball on Motor, Needle Throughout
Motor Type:
Permanent Split Capacitor
Rotation:
CW/CCW
Gear Material:
Hardened Steel
Lubrication:
Permanent Heavy Fluid Gear Oil
Max. Ambient Temp.:
40 Degrees C
Seals:
Spring Loaded Lip Type on Input and Output Shaft
Overall Height:
3.63 in
Overall Width:
3.63 in
Housing Material:
Die Cast Aluminum
Number of Output Shafts:
1
Inverter Rating:
49
Mounting Orientation:
Any Angle
Frequency:
60 Hz
Mount Hole Center-to-Center Length:
2.63 in
Operating Voltage:
115V AC
Motor Enclosure:
Open Air-Over
Nameplate Speed:
33 RPM
Mount Type:
Any Position
Brake Type:
None
Input Horsepower:
0.1 hp
Inverter Rated:
No
Output Shaft Diameter:
1/2 in
Output Shaft Length:
1 in
Keyway Width:
1/8 in
Overhung Load Capacity:
130 ft-lb
Keyway Depth:
3/4 in
Bearing Type:
Ball on Motor, Needle Throughout
Maximum Ambient Temperature:
104 Degrees F
Maximum Torque:
165 in-lb
Full Load Current:
1.05 A
Mount Hole Center-to-Center Width:
2.63 in
Seal Type:
Spring Loaded Lip Type on Input and Output Shaft
Includes Capacitor:
Capacitor Included
Package Quantity:
1
