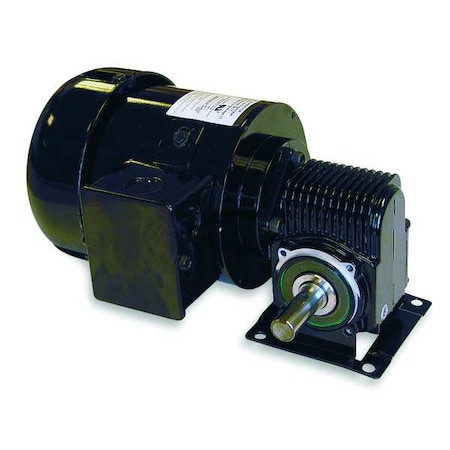

AC Gearmotor, 130.0 in-lb Max. Torque, 55 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase - 3XA90

AC Gearmotor, 130.0 in-lb Max. Torque, 55 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase - 3XA90

Dayton
SKU:
3XA90
|
UPC:
190735295960
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 55 RPM, Maximum Torque 130 in-lb, Overhung Load Capacity 200 ft-lb, Rotation CW/CCW, Output Shaft Height 1.69 in, Mounting Orientation Any Angle, Operating Voltage 115/230V AC, Inverter Rated No, Gear Ratio 30:1, Brake Type None, Output Location Right Hand, Shaft Orientation Right Angle, Includes Capacitor Capacitor Included
Additional Information
Country of Origin:
United States
Item:
AC Gearmotor
Gearmotor Voltage:
115/230V AC
Gearmotor Phase:
1
Gearmotor Type:
AC Gearmotor
Max. Torque:
130 in-lb
Gearmotor Shaft Type:
Single Right
Gearmotor Shaft Orientation:
Right Angle
Nameplate RPM:
55 RPM
Gearmotor Enclosure:
Totally Enclosed Fan-Cooled
Gearmotor Rotation:
CW/CCW
Gearmotor Brake Type:
None
Gearmotor Mounting Position:
All Angle
Full Load Amps:
2.35/1.25
Standards:
C-UL Recognized, UL Recognized
Input HP:
1/4 hp
Lubrication:
Oil Filled
Bearings:
Ball on Motor, Needle on Case
Gear Ratio:
30
Motor Type:
Permanent Split Capacitor
Housing:
Die Cast Aluminum
Mounting:
All Position
Thermal Protection:
None
Shaft Length (Dimension V):
1.5";Gear Case Material=Die Cast Aluminum"
Enclosure:
TEFC
Overall Length:
10.31 in
Brake:
Adaptable to 5X400
Overhung Load:
200 lb
Capacitor Required:
Yes
Rotation:
CW/CCW
Shaft Orientation:
Right Angle
Voltage:
115/230
Max. Ambient Temp.:
40 Degrees C
RPM Range:
51 to 75
Phase:
Single
RPM @ 50 Hz:
48
Shaft Dia. (Dimension U):
5/8 in
Seals:
Lip Type on Input and Output Shaft
Overall Height:
6 in
Overall Width:
5.63 in
Housing Material:
Die Cast Aluminum
Output Location:
Right Hand
Keyway Depth:
1/8 in
Keyway Width:
3/16 in
Inverter Rating:
30
Number of Output Shafts:
1
Frequency:
50 Hz, 60 Hz
Output Shaft Length:
1 1/2 in
Output Shaft Diameter:
5/8 in
Motor Enclosure:
Totally Enclosed Fan-Cooled
Full Load Current:
2.35/1.25 A
Nameplate Speed:
55 RPM
Mount Type:
Any Position
Output Shaft Height:
1.69 in
Maximum Ambient Temperature:
104 Degrees F
Maximum Torque:
130 in-lb
Brake Type:
None
Bearing Type:
Ball on Motor, Needle on Case
Mount Hole Center-to-Center Width:
3.25 in
Seal Type:
Lip Type on Input and Output Shaft
Mounting Orientation:
Any Angle
Inverter Rated:
No
Overhung Load Capacity:
200 ft-lb
Mount Hole Center-to-Center Length:
3 in
Input Horsepower:
0.25 hp
Operating Voltage:
115/230V AC
Includes Capacitor:
Capacitor Included
Package Quantity:
1
