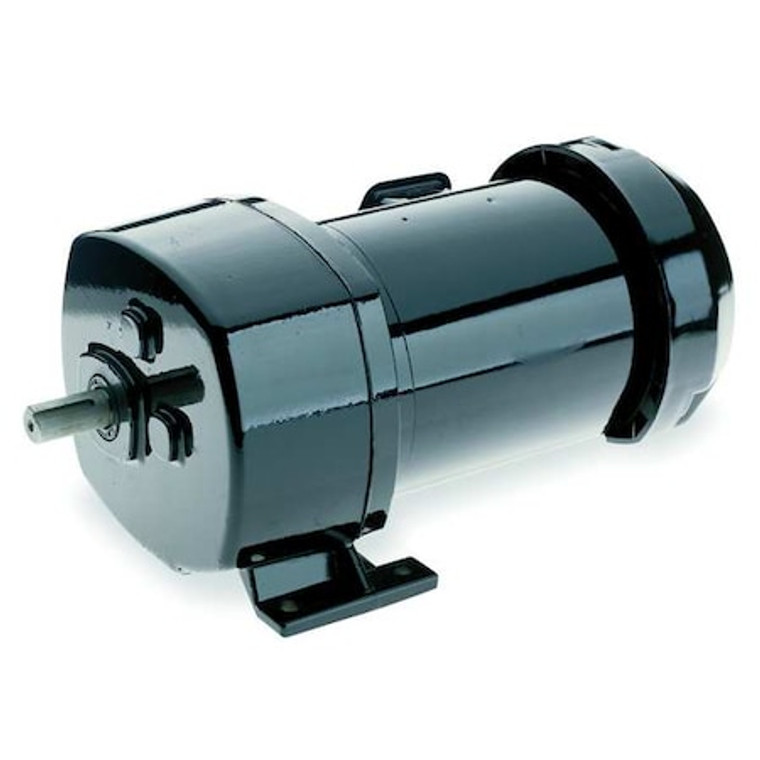

AC Gearmotor, 124.0 in-lb Max. Torque, 155 RPM Nameplate RPM, 208-230/460V AC Voltage, 3 Phase - 4Z388

AC Gearmotor, 124.0 in-lb Max. Torque, 155 RPM Nameplate RPM, 208-230/460V AC Voltage, 3 Phase - 4Z388

Dayton
SKU:
4Z388
|
UPC:
190735340523
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 155 RPM, Maximum Torque 124 in-lb, Overhung Load Capacity 325 ft-lb, Rotation CW/CCW, Output Shaft Height 3 in, Mounting Orientation Any Angle, Operating Voltage 230/460V AC, Inverter Rated No, Gear Ratio 11:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class B, Motor Duty Class Continuous, AGMA Gear Class Class 9
Additional Information
Country of Origin:
United States
Item:
AC Gearmotor
Gearmotor Voltage:
208-230/460V AC
Gearmotor Phase:
3
Gearmotor Type:
AC Gearmotor
Max. Torque:
124 in-lb
Gearmotor Shaft Type:
Single
Gearmotor Shaft Orientation:
Parallel
Nameplate RPM:
155 RPM
Gearmotor Enclosure:
Totally Enclosed Fan-Cooled
Gearmotor Rotation:
CW/CCW
Gearmotor Brake Type:
None
Length Less Shaft:
12.1 in
Gearmotor Mounting Position:
All Angle
Full Load Amps:
1.32/0.66
Standards:
C-UL Recognized, UL Recognized
Input HP:
1/3 hp
Gear Case Material:
Die Cast Aluminum
Overhung Load:
325 lb
Max. Ambient Temp.:
40 Degrees C
Motor Type:
3-Phase
Gears:
1st Stage Helical, AGMA Class 9, Hardened Steel, Subsequent Stages Spur
Phase:
Three
Shaft Dia. (Dimension U):
3/4 in
Enclosure:
TEFC
Gear Type:
Helical (1st Stage), Spur (Subsequent Stages)
Thermal Protection:
None
Rotation:
CW/CCW
Lubrication:
Permanent Heavy Duty Gear Oil
Gear Ratio:
11
Housing:
Die Cast Aluminum
Seals:
Lip Type on Input and Output Shaft
Brake:
Adaptable to 2LYV2
Voltage:
208-230/460
Hz:
60 Hz
Bearings:
Ball on Motor, Heavy Duty Ball, Needle Roller and Thrust Balls on Case
Shaft Length (Dimension V):
1.5";Shaft Orientation=Parallel"
Gear Material:
Hardened Steel
Mounting:
All Position
RPM Range:
151 to 200
Overall Width:
8.13 in
Overall Height:
6.63 in
Housing Material:
Die Cast Aluminum
Inverter Rated:
No
Nameplate Speed:
155 RPM
Mount Type:
Any Position
Output Shaft Length:
1 1/2 in
Output Shaft Diameter:
3/4 in
Output Shaft Height:
3 in
Motor Enclosure:
Totally Enclosed Fan-Cooled
Mount Hole Center-to-Center Width:
7.13 in
Mount Hole Center-to-Center Length:
2.5 in
AGMA Gear Class:
Class 9
Keyway Depth:
1/8 in
Number of Output Shafts:
1
Frequency:
60 Hz
Seal Type:
Lip Type on Input and Output Shaft
Mounting Orientation:
Any Angle
Maximum Torque:
124 in-lb
Maximum Ambient Temperature:
104 Degrees F
Keyway Width:
3/16 in
Full Load Current:
1.22/.61 A
Overhung Load Capacity:
325 ft-lb
Bearing Type:
Ball on Motor, Heavy Duty Ball, Needle Roller and Thrust Balls on Case
Operating Voltage:
230/460V AC
Input Horsepower:
0.33 hp
Brake Type:
None
Inverter Rating:
11
Housing Material Finish:
Painted
Keyway Type:
Square
Motor Insulation Class:
B
Motor Duty Class:
Continuous
Package Quantity:
1
