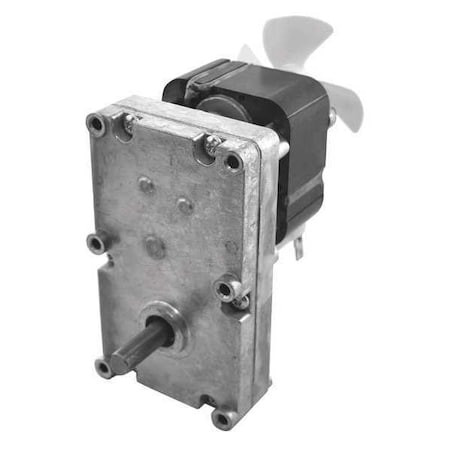

AC Gearmotor, 120 in-lb Max. Torque, 6.3 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 52JD98

AC Gearmotor, 120 in-lb Max. Torque, 6.3 RPM Nameplate RPM, 115V AC Voltage, 1 Phase - 52JD98

Dayton
SKU:
52JD98
|
UPC:
194484301972
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
AC Gearmotor, Number of Output Shafts 1, Motor Type Shaded Pole, Motor Enclosure Open Air-Over, Nameplate Speed 6.3 RPM, Maximum Torque 120 in-lb, Overhung Load Capacity 30 ft-lb, Rotation CW, Output Shaft Height 3.32 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Gear Ratio 529.2:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class A
Additional Information
Country of Origin:
Mexico
Item:
AC Gearmotor
Gearmotor Voltage:
115V AC
Gearmotor Phase:
1
Gearmotor Type:
AC Gearmotor
Max. Torque:
120 in-lb
Gearmotor Shaft Type:
Single
Gearmotor Shaft Orientation:
Parallel
Nameplate RPM:
6.3 RPM
Gearmotor Enclosure:
Open
Gearmotor Rotation:
CW
Gearmotor Brake Type:
None
Length Less Shaft:
4.25 in
Gearmotor Mounting Position:
All Angle
Full Load Amps:
1.5
Standards:
UL Recognized
Input HP:
1/60 hp
Rotation:
CW
Overhung Load:
30 lb
Gear Ratio:
529.2
Insulation Class:
A
No Load RPM:
6.7 RPM
Application:
Agriculture, Amusement Devices, Controls, Conveyors, DVD Kiosks, Food and Restaurant Equipment, Ice Dispensing, Industrial Machinery, Ingredient Motors, Mail Sorting, Packaging, Pellet and Corn Stoves, Power Transmission, Printing Press, Pumps, Secur
Overall Length:
5.25 in
Gear Type:
Spur
Phase:
Single
Hz:
60 Hz
Shaft:
Single Output
Lubrication:
Grease Filled
Finish:
Unpainted
Service Factor:
1
Mounting:
All Position
Enclosure:
Open
Motor Type:
Shaded Pole
Reversible Shaft Output:
No
Housing:
Die Cast Zinc
Gear Material:
Sintered Steel
Capacitor Required:
No
Shaft Orientation:
Parallel
Voltage:
115
Shaft Dia. (Dimension U):
3/8 in
Shaft Length (Dimension V):
1";Brake=None"
Max. Ambient Temp.:
40 Degrees C
RPM Range:
0 to 15
Bearings:
Sintered Bronze Sleeve
Motor Shaft Design:
Flat
Starting Torque:
115 in-lb
Thermal Protection:
Auto
Gears:
Spur
Number of Brake Discs Required:
0
Gear Case Material:
Die Cast Zinc
Housing Material:
Die Cast Zinc
Frequency:
60 Hz
Output Shaft Length:
1 in
Nameplate Speed:
6.3 RPM
Brake Type:
None
Mounting Orientation:
Any Angle
Operating Voltage:
115V AC
Motor Enclosure:
Open Air-Over
Maximum Ambient Temperature:
104 Degrees F
Full Load Current:
1.5 A
Output Shaft Diameter:
3/8 in
No Load Speed:
6.7 RPM
Number of Output Shafts:
1
Overall Width:
2.75 in
Motor Insulation Class:
A
Output Shaft Height:
3.32 in
Overhung Load Capacity:
30 ft-lb
Bearing Type:
Sintered Bronze Sleeve
Mount Hole Center-to-Center Length:
4.75 in
Mount Hole Center-to-Center Width:
2.38 in
Overall Height:
4.69 in
Housing Material Finish:
Unpainted
Mount Type:
Any Position
Maximum Torque:
120 in-lb
Input Horsepower:
0.167 hp
Package Quantity:
1
