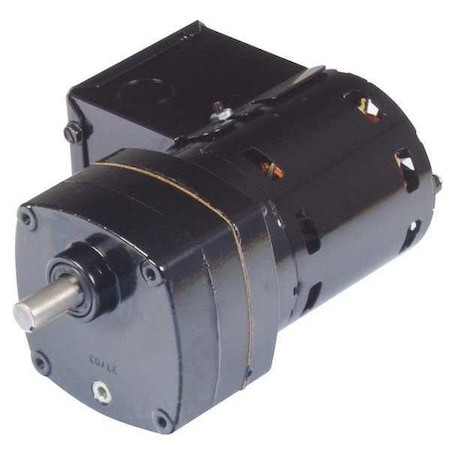

AC Gearmotor, 100.0 in-lb Max. Torque, 17 RPM Nameplate RPM, 230V AC Voltage, 1 Phase - 1L527

AC Gearmotor, 100.0 in-lb Max. Torque, 17 RPM Nameplate RPM, 230V AC Voltage, 1 Phase - 1L527

Dayton
SKU:
1L527
|
UPC:
190735142608
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Nonventilated, Nameplate Speed 17 RPM, Maximum Torque 100 in-lb, Overhung Load Capacity 90 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Operating Voltage 230V AC, Inverter Rated No, Gear Ratio 96:1, Brake Type None, Shaft Orientation Parallel, Includes Capacitor Capacitor Included, Application Washdown
Additional Information
Country of Origin:
United States
Item:
AC Gearmotor
Gearmotor Voltage:
230V AC
Gearmotor Phase:
1
Gearmotor Type:
AC Gearmotor
Max. Torque:
100 in-lb
Gearmotor Shaft Type:
Single
Gearmotor Shaft Orientation:
Parallel
Nameplate RPM:
17 RPM
Gearmotor Enclosure:
Totally Enclosed Nonventilated
Gearmotor Rotation:
CW/CCW
Gearmotor Brake Type:
None
Length Less Shaft:
8 in
Gearmotor Mounting Position:
All Angle
Full Load Amps:
0.3
Standards:
C-UL Recognized, CE Certified, UL Recognized
Input HP:
1/20 hp
Gears:
1st Stage Steel, Helical, Subsequent Stages Steel or Heat Treated Powdered Metal Spur
Mounting:
All Position
Dimension X:
2.1";Max. Ambient Temp.=40 Degrees C"
Brake:
Adaptable to 5X400
Enclosure:
TENV
RPM Range:
16 to 30
Gear Ratio:
96
Shaft Dia. (Dimension U):
1/2 in
Phase:
Single
Dimension L:
4.92";Lubrication=Permanent Heavy Duty Gear Oil"
Overhung Load:
90 lb
Dimension C:
9.04 in
Capacitor Required:
Yes
Gear Material:
Steel or Heat Treated Powdered Metal
Shaft Length (Dimension V):
1";Voltage=230"
Thermal Protection:
None
Seals:
Spring Loaded Lip Type on Input and Output Shaft
Rotation:
CW/CCW
Motor Type:
Permanent Split Capacitor
Bearings:
Ball on Motor, Heavy Duty Needle on Case
Shaft Orientation:
Parallel
Gear Type:
Helical (1st Stage), Spur
Hz:
60/50 Hz
Application:
Washdown
Overall Height:
5.38 in
Overall Width:
3.63 in
Housing Material:
Rolled Steel
Number of Output Shafts:
1
Mount Type:
Any Position
Output Shaft Length:
1 in
Includes Capacitor:
Capacitor Included
Motor Enclosure:
Totally Enclosed Nonventilated
Brake Type:
None
Bearing Type:
Ball on Motor, Heavy Duty Needle on Case
Overhung Load Capacity:
90 ft-lb
Full Load Current:
0.3 A
Seal Type:
Spring Loaded Lip Type on Input and Output Shaft
Maximum Torque:
100 in-lb
Input Horsepower:
0.05 hp
Output Shaft Diameter:
1/2 in
Inverter Rating:
96
Nameplate Speed:
17 RPM
Mounting Orientation:
Any Angle
Inverter Rated:
No
Maximum Ambient Temperature:
104 Degrees F
Frequency:
50 Hz, 60 Hz
Operating Voltage:
230V AC
Package Quantity:
1
