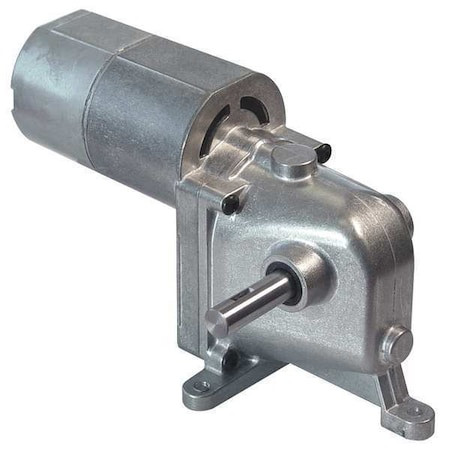

AC/DC Gearmotor, 90 rpm, 115V, Open Vented - 1LPZ4

AC/DC Gearmotor, 90 rpm, 115V, Open Vented - 1LPZ4

Dayton
SKU:
1LPZ4
|
UPC:
190735144695
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
AC/DC Gearmotor, Shaft Orientation Right Angle, Output Location Left Hand, Motor Enclosure Open Air-Over, Operating Voltage 115V AC, Motor Type Universal AC/DC, Nameplate Speed 90 RPM, Maximum Torque 18 in-lb, Overhung Load Capacity 100 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 52:1, Input Horsepower 1/6 hp, Motor Insulation Class B, Frequency 50 Hz, 60 Hz, Output Shaft Diameter 1/2 in, Bearing Type Ball on Motor, Porous Bronze Sleeve on Case
Additional Information
Country of Origin:
United States
Gearmotor Type:
AC/DC Gearmotor
Item:
AC/DC Gearmotor
Motor Type:
Universal AC/DC
Gearmotor Voltage:
115V AC/DC
Shaft Orientation:
Right Angle
Enclosure:
Open Vented
Full Load Torque:
18 in-lb
Gearmotor Shaft Type:
Single Left
Nameplate RPM:
90 RPM
Gearmotor Shaft Orientation:
Right Angle
Voltage:
115VAC/DC
Gear Ratio:
52
Gearmotor Enclosure:
Open
Gearmotor Phase:
1
Full Load Amps:
1.3 A
Seals:
Lip Type on Output Shaft
Keyway Size Type:
#404 Woodruff Key
Replacement Brushes:
1YNR3
RPM Range:
76 to 100
Input HP:
1/15
Gearmotor Mounting Position:
All Angle
Insulation Class:
b
Brushes:
Externally Replaceable
Bearings:
Porous Bronze Sleeve on Case, Sleeve on Motor
Gear Case:
Die Cast Zinc
Lubrication:
Grease Filled
Thermal Protection:
None
Shaft:
Left Hand Output
Shaft Length (Dimension V):
1-5/8";Rotation=CW/CCW"
Gearmotor Rotation:
CW/CCW
Housing Material:
Die Cast Zinc
Shaft Dia. (Dimension U):
1/2";Max. Ambient Temp.=40 Degrees C"
Keyway Size:
#404 Woodruff Key
Overall Length:
8.56 in
Length Less Shaft:
8.75 in
Hz:
60/50 Hz
Finish:
Unpainted
Phase:
1
Overhung Load:
100 lb
Mounting:
All Position
Standards:
UL Recognized
Gear Type:
Worm
Reversible Shaft Output:
No
Gear Material:
Input Gear Steel, Output Gear Cast Iron, Worm Hardened Steel
Nameplate Speed:
90 RPM
Bearing Type:
Ball on Motor, Porous Bronze Sleeve on Case
Motor Enclosure:
Open Air-Over
Mounting Orientation:
Any Angle
Seal Type:
Lip Type on Output Shaft
Full Load Current:
1.3 A
Input Horsepower:
1/6 hp
Operating Voltage:
115V AC
Overhung Load Capacity:
100 ft-lb
Keyway Type:
Woodruff #404
Output Location:
Left Hand
Replaceable Motor Brushes:
Yes
Output Shaft Diameter:
1/2 in
Housing Material Finish:
Unpainted
Maximum Torque:
18 in-lb
Motor Insulation Class:
B
Maximum Ambient Temperature:
40 Degrees C
Output Shaft Length:
1 5/8 in
Frequency:
50 Hz, 60 Hz
Package Quantity:
1
