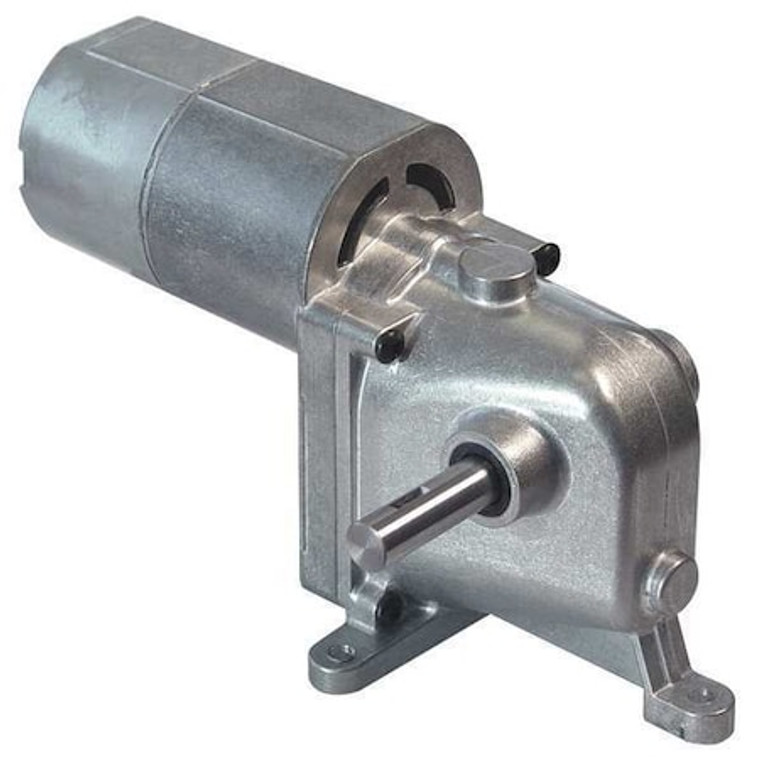

AC/DC Gearmotor, 8 rpm, 115V, Open Vented - 1LRA4

AC/DC Gearmotor, 8 rpm, 115V, Open Vented - 1LRA4

Dayton
SKU:
1LRA4
|
UPC:
190735144787
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
AC/DC Gearmotor, Shaft Orientation Right Angle, Output Location Left Hand, Motor Enclosure Open Air-Over, Operating Voltage 115V AC, Motor Type Universal AC/DC, Nameplate Speed 8 RPM, Maximum Torque 150 in-lb, Overhung Load Capacity 100 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 747:1, Input Horsepower 1/6 hp, Motor Insulation Class B, Frequency 50 Hz, 60 Hz, Output Shaft Diameter 1/2 in, Bearing Type Porous Bronze Sleeve on Case, Sleeve on Motor
Additional Information
Country of Origin:
United States
Item:
AC/DC Gearmotor
Gearmotor Type:
AC/DC Gearmotor
Motor Type:
Universal AC/DC
Gearmotor Voltage:
115V AC/DC
Shaft Orientation:
Right Angle
Enclosure:
Open Vented
Full Load Torque:
150 in-lb
Gearmotor Shaft Type:
Single Left
Nameplate RPM:
8 RPM
Gearmotor Shaft Orientation:
Right Angle
Voltage:
115VAC/DC
Gear Ratio:
747
Gearmotor Enclosure:
Open
Gearmotor Phase:
1
Full Load Amps:
1.3 A
Overall Length:
8.56 in
Shaft Length (Dimension V):
1-5/8";Gearmotor Rotation=CW/CCW"
Finish:
Unpainted
Gear Case:
Die Cast Zinc
Housing Material:
Die Cast Zinc
Shaft Dia. (Dimension U):
1/2";Insulation Class=b"
Overhung Load:
100 lb
Keyway Size:
#404 Woodruff Key
RPM Range:
0 to 15
Standards:
UL Recognized
Brushes:
Externally Replaceable
Hz:
60/50 Hz
Length Less Shaft:
8.75 in
Max. Ambient Temp.:
40 Degrees C
Shaft:
Left Hand Output
Thermal Protection:
None
Gear Type:
Worm
Seals:
Lip Type on Output Shaft
Input HP:
1/15
Reversible Shaft Output:
No
Mounting:
All Position
Keyway Size Type:
#404 Woodruff Key
Gear Material:
Input Gear Steel, Output Gear Cast Iron, Worm Hardened Steel
Dimension U:
1/2";Rotation=CW/CCW"
Replacement Brushes:
1YNR3
Gearmotor Mounting Position:
All Angle
Phase:
1
Lubrication:
Grease Filled
Bearings:
Porous Bronze Sleeve on Case, Sleeve on Motor
Overhung Load Capacity:
100 ft-lb
Full Load Current:
1.3 A
Output Shaft Length:
1 5/8 in
Nameplate Speed:
8 RPM
Mounting Orientation:
Any Angle
Maximum Torque:
150 in-lb
Output Shaft Diameter:
1/2 in
Bearing Type:
Porous Bronze Sleeve on Case, Sleeve on Motor
Seal Type:
Lip Type on Output Shaft
Housing Material Finish:
Unpainted
Input Horsepower:
1/6 hp
Replaceable Motor Brushes:
Yes
Output Location:
Left Hand
Maximum Ambient Temperature:
40 Degrees C
Keyway Type:
Woodruff #404
Motor Insulation Class:
B
Frequency:
50 Hz, 60 Hz
Operating Voltage:
115V AC
Motor Enclosure:
Open Air-Over
Package Quantity:
1
