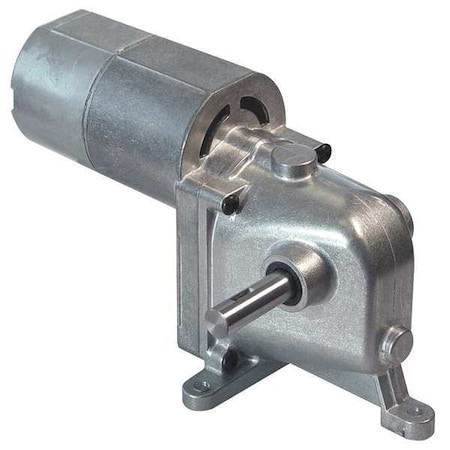

AC/DC Gearmotor, 24 rpm, 115V, Open Vented - 1LRA1

AC/DC Gearmotor, 24 rpm, 115V, Open Vented - 1LRA1

Dayton
SKU:
1LRA1
|
UPC:
190735144756
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
AC/DC Gearmotor, Shaft Orientation Right Angle, Motor Enclosure Open Air-Over, Operating Voltage 115V AC, Motor Type Universal AC/DC, Nameplate Speed 24 RPM, Maximum Torque 85 in-lb, Overhung Load Capacity 100 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 229:1, Input Horsepower 1/6 hp, Motor Insulation Class B, Frequency 50 Hz, 60 Hz, Output Shaft Diameter 1/2 in, Bearing Type Porous Bronze Sleeve on Case, Sleeve on Motor
Additional Information
Country of Origin:
United States
Gearmotor Type:
AC/DC Gearmotor
Item:
AC/DC Gearmotor
Gearmotor Voltage:
115V AC/DC
Motor Type:
Universal AC/DC
Shaft Orientation:
Right Angle
Enclosure:
Open Vented
Full Load Torque:
85 in-lb
Gearmotor Shaft Type:
Double
Nameplate RPM:
24 RPM
Gearmotor Shaft Orientation:
Right Angle
Voltage:
115VAC/DC
Gearmotor Enclosure:
Open
Gear Ratio:
229
Gearmotor Phase:
1
Full Load Amps:
1.3 A
Keyway Size:
#404 Woodruff Key
Shaft Dia. (Dimension U):
1/2";Hz=60/50 Hz"
Seals:
Lip Type on Output Shaft
Gearmotor Rotation:
CW/CCW
Replacement Brushes:
1YNR3
Gear Case:
Die Cast Zinc
Max. Ambient Temp.:
40 Degrees C
Gearmotor Mounting Position:
All Angle
Rotation:
CW/CCW
Mounting:
All Position
Keyway Size Type:
#404 Woodruff Key
Standards:
UL Recognized
Reversible Shaft Output:
No
Gear Material:
Input Gear Steel, Output Gear Cast Iron, Worm Hardened Steel
Housing Material:
Die Cast Zinc
Lubrication:
Grease Filled
Finish:
Unpainted
Length Less Shaft:
8.75 in
Overall Length:
8.56 in
Brushes:
Externally Replaceable
RPM Range:
16 to 30
Insulation Class:
b
Shaft Length (Dimension V):
1-5/8";Phase=1"
Gear Type:
Worm
Thermal Protection:
None
Bearings:
Porous Bronze Sleeve on Case, Sleeve on Motor
Input HP:
1/15
Shaft:
Dual Output
Overhung Load:
100 lb
Full Load Current:
1.3 A
Operating Voltage:
115V AC
Output Shaft Length:
1 5/8 in
Frequency:
50 Hz, 60 Hz
Motor Insulation Class:
B
Housing Material Finish:
Unpainted
Motor Enclosure:
Open Air-Over
Maximum Ambient Temperature:
40 Degrees C
Seal Type:
Lip Type on Output Shaft
Input Horsepower:
1/6 hp
Bearing Type:
Porous Bronze Sleeve on Case, Sleeve on Motor
Keyway Type:
Woodruff #404
Nameplate Speed:
24 RPM
Mounting Orientation:
Any Angle
Replaceable Motor Brushes:
Yes
Overhung Load Capacity:
100 ft-lb
Output Shaft Diameter:
1/2 in
Maximum Torque:
85 in-lb
Package Quantity:
1
