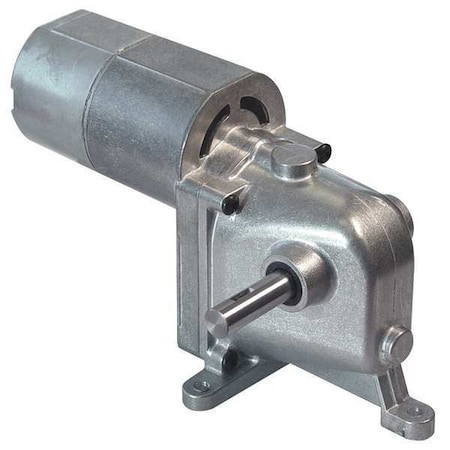

AC/DC Gearmotor, 24 rpm, 115V, Open Vented - 1LPZ8

AC/DC Gearmotor, 24 rpm, 115V, Open Vented - 1LPZ8

Dayton
SKU:
1LPZ8
|
UPC:
190735144732
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
AC/DC Gearmotor, Shaft Orientation Right Angle, Output Location Left Hand, Motor Enclosure Open Air-Over, Operating Voltage 115V AC, Motor Type Universal AC/DC, Nameplate Speed 24 RPM, Maximum Torque 85 in-lb, Overhung Load Capacity 100 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 229:1, Input Horsepower 1/6 hp, Motor Insulation Class B, Frequency 50 Hz, 60 Hz, Output Shaft Diameter 1/2 in, Bearing Type Ball on Motor, Porous Bronze Sleeve on Case
Additional Information
Country of Origin:
United States
Gearmotor Type:
AC/DC Gearmotor
Item:
AC/DC Gearmotor
Motor Type:
Universal AC/DC
Gearmotor Voltage:
115V AC/DC
Shaft Orientation:
Right Angle
Full Load Torque:
85 in-lb
Enclosure:
Open Vented
Nameplate RPM:
24 RPM
Gearmotor Shaft Type:
Single Left
Gearmotor Shaft Orientation:
Right Angle
Voltage:
115VAC/DC
Gear Ratio:
229
Gearmotor Enclosure:
Open
Gearmotor Phase:
1
Full Load Amps:
1.3 A
Hz:
60/50 Hz
Brushes:
Externally Replaceable
Reversible Shaft Output:
No
Finish:
Unpainted
Gearmotor Rotation:
CW/CCW
Length Less Shaft:
8.75 in
Mounting:
All Position
Seals:
Lip Type on Output Shaft
Lubrication:
Grease Filled
Input HP:
1/15
Shaft Dia. (Dimension U):
1/2";Overhung Load=100 lb"
Gearmotor Mounting Position:
All Angle
Replacement Brushes:
1YNR3
Rotation:
CW/CCW
Housing Material:
Die Cast Zinc
Gear Material:
Input Gear Steel, Output Gear Cast Iron, Worm Hardened Steel
Gear Case:
Die Cast Zinc
Overall Length:
8.56 in
Bearings:
Porous Bronze Sleeve on Case, Sleeve on Motor
RPM Range:
16 to 30
Max. Ambient Temp.:
40 Degrees C
Insulation Class:
b
Gear Type:
Worm
Standards:
UL Recognized
Phase:
1
Keyway Size:
#404 Woodruff Key
Keyway Size Type:
#404 Woodruff Key
Shaft Length (Dimension V):
1-5/8";Shaft=Left Hand Output"
Thermal Protection:
None
Maximum Torque:
85 in-lb
Motor Enclosure:
Open Air-Over
Input Horsepower:
1/6 hp
Keyway Type:
Woodruff #404
Housing Material Finish:
Unpainted
Maximum Ambient Temperature:
40 Degrees C
Nameplate Speed:
24 RPM
Operating Voltage:
115V AC
Replaceable Motor Brushes:
Yes
Frequency:
50 Hz, 60 Hz
Overhung Load Capacity:
100 ft-lb
Motor Insulation Class:
B
Bearing Type:
Ball on Motor, Porous Bronze Sleeve on Case
Full Load Current:
1.3 A
Seal Type:
Lip Type on Output Shaft
Output Location:
Left Hand
Mounting Orientation:
Any Angle
Output Shaft Diameter:
1/2 in
Output Shaft Length:
1 5/8 in
Package Quantity:
1
