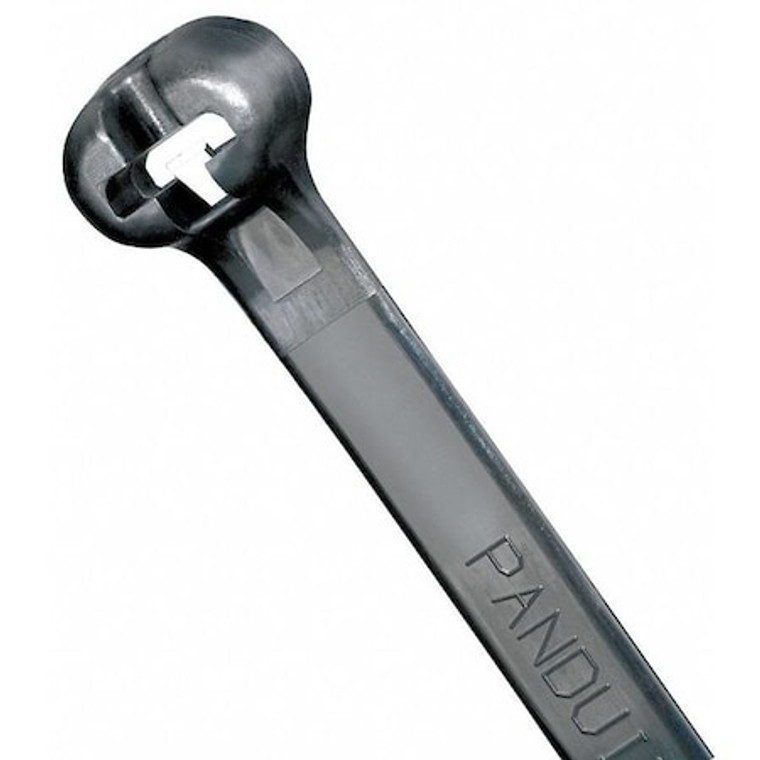

7.9" L Miniature Cable Tie NAT PK 1000 - BT2M-M
Manufacturer: Panduit
MFR # BT2M-M
Log in for pricing
7.9" L Miniature Cable Tie BK PK 1000 - BT2M-M0
PanduitLog in for pricing
(No reviews yet)
Write a Review
Panduit
7.9" L Miniature Cable Tie BK PK 1000 - BT2M-M0
Cable Tie, Standard, Actual Length 7.9 in, Width 0.09 in, Nominal Length 8 in, Locking Style Stainless Steel Barb, Color Black, Basic Material - Cable Tie Nylon, Tensile Strength 18 lb, Halogen-Free, Low-Smoke, Plenum Rated, UV Light Resistant, Weather Resistant, Miniature, Nominal Max. Bundle Dia. 2 in, Temp. Range -76 Degrees to 185 Degrees F, Number of Straps 1, Flame Retardant No, Metal Detectable No, Outdoor Use Yes, Plenum Rated Yes, UL Type 2, Thickness 0.05 in, Max. Bundle Dia. 2 in
- Country of Origin:
- Costa Rica
- Item:
- Cable Tie
- Cable Tie Style:
- Standard
- Nominal Length:
- 8 in
- Width:
- 0.09";Nominal Max. Bundle Dia.=2 in"
- Color:
- Black
- Material:
- Nylon 6/6
- Tensile Strength:
- 18 lb.
- Indoor/Outdoor:
- Indoor, Outdoor
- Standards:
- UL 62275 (Type 2, 21), CSA, CE, RoHS
- Locking Style:
- Stainless Steel Barb
- Basic Material:
- Nylon
- Temp. Range:
- -76 Degrees to 185 Degrees F
- Approximate Length:
- 7-1/2";Design - Cable Tie=Standard"
- Cable Tie Duty:
- Miniature
- Thickness:
- 0.04";Width - Cable Tie=0.09""
- Length - Cable Tie:
- 7.90";Resists=Weather, UV"
- Color - Cable Tie:
- Black
- Tensile Strength - Cable Tie:
- 18 lb.
- Tool Code:
- E
- Length:
- 7.9";Metal Detectable=No"
- Max. Bundle Dia.:
- 2.00";Approximate Length - Cable Tie=7-1/2""
- Basic Material - Cable Tie:
- Nylon
- UL Type:
- 2
- Design:
- Standard
- Flame Retardant:
- No
- Plenum Rated:
- Yes
- Max. Temp. Rating:
- 185 Degrees F
- Number of Straps:
- 1
- Actual Length:
- 7.9 in
- Outdoor Use:
- Yes
- Recommended Tool:
- 376V35, 52ZJ96, 62PX63, Mfr. No. PTS
- Cable Tie Properties:
- Halogen-Free, Low-Smoke, Plenum Rated, UV Light Resistant, Weather Resistant
- Min. Temp. Rating:
- -76 Degrees F
- For Use With:
- GTS-E, GS2B-E, PTS, PPTS, STS2
- Minimum Loop Tensile Strength:
- 40 lb
- Product Color:
- Black
- Product Name:
- Dome-Top Cable Tie
- Product Type:
- Cable Tying
- Environmentally Friendly:
- Yes
- Product Line:
- Dome-Top
- Cable Manager Type:
- Cable Tie
- Product Material:
- Nylon 6.6
- Minimum Loop Tensile Strength (lb):
- 18
- Overall Length (In.):
- 7.9
- Minimum Installation Temperature (°F):
- -4
- Minimum Operating Temperature (°F):
- -76
- Body Thickness (In.):
- 0.046
- Maximum Bundle Diameter (mm):
- 51
- Resistance Properties:
- UV Resistant
- Minimum Installation Temperature (°C):
- -20
- Minimum Loop Tensile Strength (N):
- 80
- Body Width (mm):
- 2.4
- Standards Met:
- UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Compliant
- Maximum Bundle Diameter (In.):
- 2
- Minimum Operating Temperature (°C):
- -60
- Body Thickness (mm):
- 1.2
- Maximum Operating Temperature (°C):
- 85
- Environment:
- Indoor/Outdoor
- Minimum Bundle Diameter (mm):
- 1.5
- Overall Length (mm):
- 201
- Minimum Bundle Diameter (In.):
- 0.06
- Sub Brand:
- Dome-Top®
- Maximum Operating Temperature (°F):
- 185
- Body Width (In.):
- 0.095
- Minimum Operating Temperature (°F):
- -76
- Minimum Installation Temperature (°C):
- -20
- Maximum Operating Temperature (°C):
- 85
- Minimum Installation Temperature (°F):
- -4
- Maximum Operating Temperature (°F):
- 185
- Minimum Operating Temperature (°C):
- -60
- Package Quantity:
- 1000
-
-
