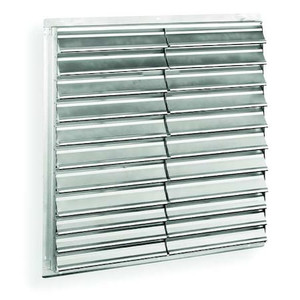

48 in Backdraft Damper / Wall Shutter, 51-1/2 in x 51-1/2 in - 53DR15

Name: 48 in Backdraft Damper / Wall Shutter, 51-1/2 in x 51-1/2 in - 53DR15
Brand: Dayton
SKU: 53DR15
Price: 465.74 USD
Availability: InStock

Dayton

SKU:

53DR15

UPC:

194484302832

Availability:

In Stock

(No reviews yet)

54 In.H-W 5.75 In.L Aluminum Wall Shutter, Damper Application Backdraft, For Nominal Duct Diameter Not Applicable, Frame Material Aluminum, Number of Panels 2, Maximum Air Velocity 2500 fpm, Overall Height 54 in, Rough Opening Diameter 51 1/2 in, Rough Opening Shape Square, Fits Fan Diameter 48 in, For Duct Shape Not Applicable, Free Area 14.8 sq ft, Overall Width 54 in, Frame Material Thickness 0.8 in, Overall Length 5 3/4 in, Connection Type Not Applicable, Frame Depth 2 1/2 in

Country of Origin:: United States
Item:: 54H-W 5.75"L Aluminum Wall Shutter"
Shutter Mounting Position:: Vertical
Shutter Mounting Location:: Wall
Shutter Construction Material:: Extruded Aluminum Frame and G-90 Galvanized Tie Rods
Shutter Free Area:: 14.841 sq ft
Shutter Opening Required:: 51-1/2 in x 51-1/2 in
Shutter Overall Size:: 54 in x 54 in
Fits Fan Dia.:: 48 in
Blade Material:: Aluminum
Max. Velocity:: 2500 FPM
Width:: 54 in
Mounting Hole Size:: 9/64 in
Shutter Overall Square:: 54 x 54""
Number of Panels:: 2
Length:: 54 in
Open Depth:: 5 3/4 in
Frame Depth:: 2 1/2 in
Frame Opening A:: 51 in
Frame Opening B:: 51 in
Shutter Item:: Backdraft Damper / Wall Shutter
For Use With:: Vertical Mounted Exhaust Fans
Flange Width:: 1 1/2 in
Includes:: Prepunched Mounting Holes; Felt edged Counterbalanced Louvers; Weep Holes In Frame Bottom
Mounting Position:: Vertical
ACMA Leakage Class:: Not Applicable
Rough Opening Shape:: Square
Overall Height:: 54 in
Mounting Hole Diameter:: 1/4 in
Fits Fan Diameter:: 48 in
Tie-Rod Material:: Galvanized Steel Frame and Tie Rods
Damper Type:: Static
Blade Type:: Flat Blade
Rough Opening Length:: 51 1/2 in
Maximum Ambient Temperature:: 180 Degrees F
Overall Length:: 5 3/4 in
Frame Material Thickness:: 0.8 in
Color:: White
Seal Material:: Not Applicable
Connection Type:: Not Applicable
Blade Seal Material:: Felt
Blade Orientation:: Parallel Blades
Frame Less Flange:: 51
Minimum Ambient Temperature:: -40 Degrees F
Single Acting/Double Acting:: Single Acting
Overall Diameter:: 54 in
Free Area:: 14.8 sq ft
Flange Type:: Rear Flange
Series:: EAS
Overall Width:: 54 in
Airflow Direction:: Horizontal
Counterbalanced:: Yes
Bushing Material:: Stainless Steel
Damper Application:: Backdraft
Damper Finish:: Mill Finish
For Duct Shape:: Not Applicable
Opening Type:: Gravity
Rough Opening Diameter:: 51 1/2 in
For Nominal Duct Diameter:: Not Applicable
Closure Velocity Rating:: 2,500 fpm
Closure Type:: Gravity
Pressure Drop @ 1000 fpm (AMCA 5.2):: Not Applicable
Fusible Link Temperature:: Not Applicable
Blade Material Thickness:: 26 ga
Maximum Air Velocity:: 2500 fpm
Rough Opening Width:: 51.5 in
Maximum Pressure:: 1 in wc
Frame Opening Height:: 24 in
For Fuel Type:: Not Applicable
Switch Action:: Normally Closed
Frame Material:: Aluminum
Package Quantity:: 1
