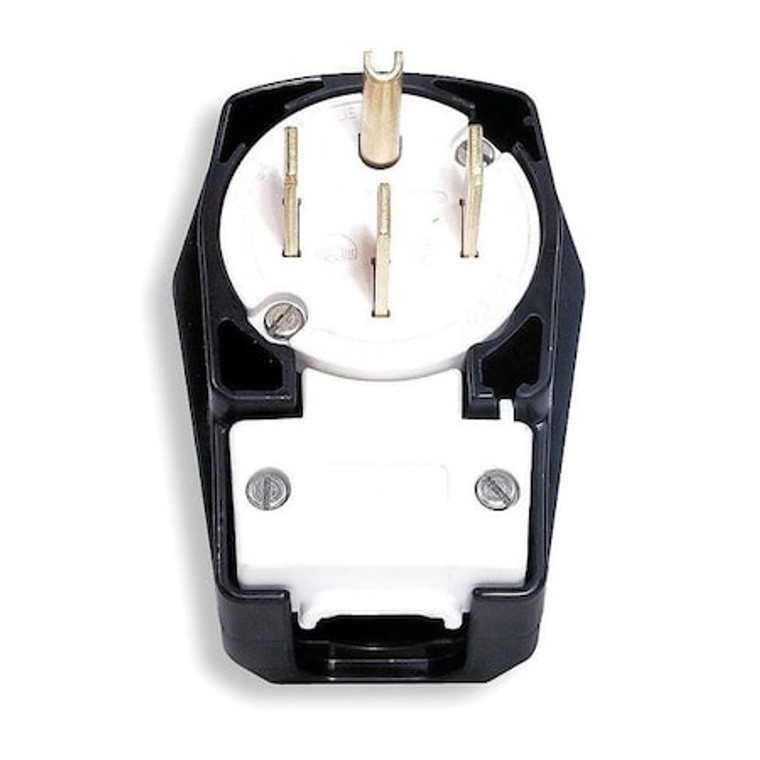

4 Wire Industrial Angle Straight Blade Plug 125/250VAC 50A - HBL9452C

4 Wire Industrial Angle Straight Blade Plug 125/250VAC 50A - HBL9452C

Hubbell
SKU:
HBL9452C
|
UPC:
783585015330
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Angle Straight Blade Plug, Connection Orientation Angled, Current Rating 50 A, Grounding Grounded, Horsepower Rating 3 hp, Housing Color Black, IP Rating IP20, NEMA Plug Configuration 14-50P, Number of Blades 4, Number of Poles 3, Phase Single, Polarized Yes, Resistance Properties Corrosion Resistant, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.31 in, For Minimum Cable Diameter 0.625 in, Grade Industrial
Additional Information
Country of Origin:
United States
Item - Plugs and Receptacles:
Angle Straight Blade Plug
Item:
Angle Straight Blade Plug
Wiring Style:
Standard
Grade - Plugs and Receptacles:
Industrial
Amps - Plugs and Receptacles:
50 A
Voltage - Plugs and Receptacles:
125/250V AC
NEMA Plug Configuration - Plugs and Receptacles:
14-50P
Number of Wires:
4
Phase - Plugs and Receptacles:
1
Antimicrobial:
No
Color:
Black/White
Number of Poles:
3
Cord Size:
0.625 in to 1.310 in
Material:
Nylon
Corrosion Resistant:
Yes
Special Features:
Corrosion resistant
HP:
2.0 Line to Neutral, 3.0 Line to Line
Standards:
CSA Certified C22.2 No. 42 File 280, UL 498 File E1706
Amps:
50
Grade:
Industrial
IP Rating:
IP20
Voltage:
125/250VAC
Color - Plugs and Receptacles:
Black/White
Phase:
Single
Type:
Plug
NEMA Rating:
14-50P
Wire Connection Type:
Screw Terminals
Polarized:
Yes
Grounding:
Grounded
Maximum Operating Temperature:
167 Degrees F
For Maximum Cable Diameter:
1.31 in
Minimum Operating Temperature:
-40 Degrees F
Body Length:
4.5 in
Resistance Properties:
Corrosion Resistant
Horsepower Rating:
3 hp
Market:
Commercial, Industrial
Housing Color:
Black
Insulation Material:
Nylon
Housing Material:
Nylon
NEMA Plug Configuration:
14-50P
For Minimum Cable Diameter:
0.625 in
Number of Blades:
4
Current Rating:
50 A
Connection Orientation:
Angled
Voltage Rating:
125/250V AC
Operating Temp.:
Maximum continuous 75°C, minimum -40°C (w/o impact).
Cord Clamp Material:
Glass Reinforced Polyester
Blade Holder Material:
Glass Reinforced PET
Ground Screw Material:
3/8 Allen Head, Plated Steel"
Terminal Screw Material:
Steel - Zn plated
Retainer Material:
Glass Reinforced PET
Weight (Lbs.):
0.8
Flammability:
UL 94 HB or better.
Temp. Rise:
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Box Terminals Material:
Copper
Ground Contact Blade Material:
.075 Brass"
Contact Blades Material:
.100 Brass"
Dielectric Strength:
Withstands 2,000V minimum
Body Style:
Angle
Amperage Rating:
50 A
Height:
2.37 in
Horsepower - Maximum:
3
Industry Standard(s):
UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
Length:
4.5 in
Cord Range:
0.625-1.310""
OEM Brand Name:
Hubbell Wiring Device-Kellems
Width:
3.38 in
Current / Amperage Rating:
50 A
Voltage Rating Description:
125/250 V
Dimensions:
4.5 in x 3.38 in x 2.37 in
Operating Temperature:
Maximum continuous 75°C and minimum -40°C without Impact
Package Quantity:
1
