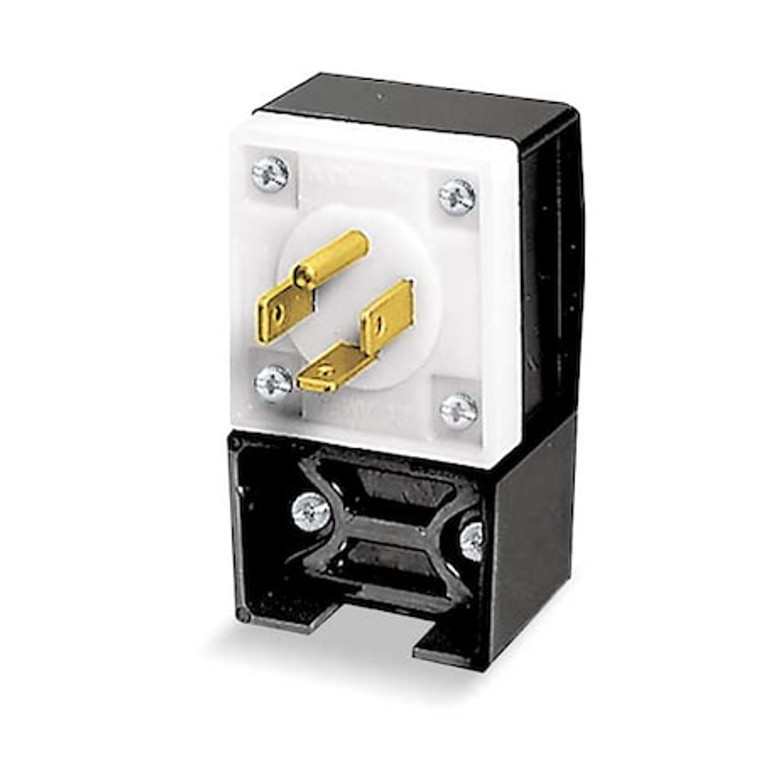

4 Wire Industrial Angle Straight Blade Plug 125/250VAC 20A - HBL8411C

Name: 4 Wire Industrial Angle Straight Blade Plug 125/250VAC 20A - HBL8411C
Brand: Hubbell
SKU: HBL8411C
Price: 78.17 USD
Availability: InStock

Hubbell

SKU:

HBL8411C

UPC:

783585013114

Availability:

In Stock

(No reviews yet)

Angle Straight Blade Plug, Connection Orientation Angled, Current Rating 20 A, Grounding Grounded, Horsepower Rating 1 hp, 2 hp, Housing Color Black, White, IP Rating IP20, NEMA Plug Configuration 14-20P, Number of Blades 4, Number of Poles 3, Phase Single, Polarized Yes, Resistance Properties Corrosion Resistant, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.775 in, For Minimum Cable Diameter 0.39 in, Grade Industrial

Country of Origin:: United States
Item - Plugs and Receptacles:: Angle Straight Blade Plug
Item:: Angle Straight Blade Plug
Wiring Style:: Standard
Grade - Plugs and Receptacles:: Industrial
Amps - Plugs and Receptacles:: 20 A
Voltage - Plugs and Receptacles:: 125/250V AC
NEMA Plug Configuration - Plugs and Receptacles:: 14-20P
Number of Wires:: 4
Phase - Plugs and Receptacles:: 3
Antimicrobial:: No
Color:: Black/White
Number of Poles:: 3
Special Features:: Corrosion resistant
NEMA Configuration:: 14-20
Material:: Nylon
Cord Size:: 0.390 in to 0.775 in
Corrosion Resistant:: Yes
Phase:: Single
Amps:: 20
Standards:: CSA Certified, UL Listed
Color - Plugs and Receptacles:: Black/White
IP Rating:: IP20
Grade:: Industrial
Voltage:: 125/250VAC
HP:: 1.0 Line to Neutral, 2.0 Line to Line
NEMA Rating:: WD-6; 14-20P
Wire Connection Type:: Screw Terminals
Polarized:: Yes
NEMA Plug Configuration:: 14-20P
Voltage Rating:: 125/250V AC
Insulation Material:: Nylon
Connection Orientation:: Angled
For Minimum Cable Diameter:: 0.39 in
Housing Color:: Black, White
Market:: Industrial
Body Length:: 3.64 in
Number of Blades:: 4
Horsepower Rating:: 1 hp, 2 hp
For Maximum Cable Diameter:: 0.775 in
Housing Material:: Nylon
Resistance Properties:: Corrosion Resistant
Grounding:: Grounded
Current Rating:: 20 A
Ground Screw Material:: Plated Steel
Contact Blades Material:: .075 Brass"
Retainer Material:: Polycarbonate
Environment:: Dry
Temp. Rise:: Max 30C after 250 cycles OL at 200 percent rated current
Terminal Screw Material:: Brass
Body Material:: Impact Modified Nylon
Ground Contact Blade Material:: .075 Brass"
Operating Temp.:: -40Â°C to 60Â°C; Maximum continuous 75Â°C; minimum -40Â°C (w/o impact)
Body Style:: Angle
Flammability:: Rated HB or better UL94
Blade Holder Material:: Nylon
Blade Material:: Solid Brass
Dielectric Strength:: Withstands 2000V per UL498
Weight (Lbs.):: 0.4
Cord Clamp Material:: Nylon
Package Quantity:: 1
